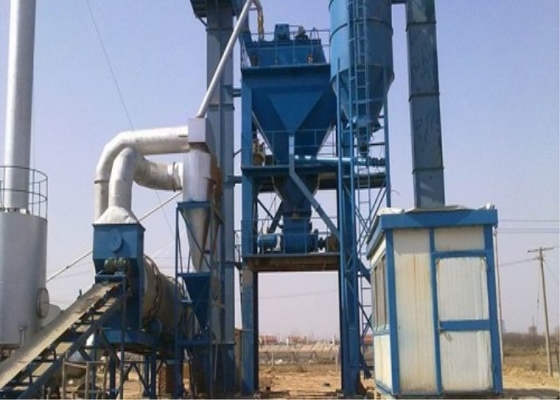

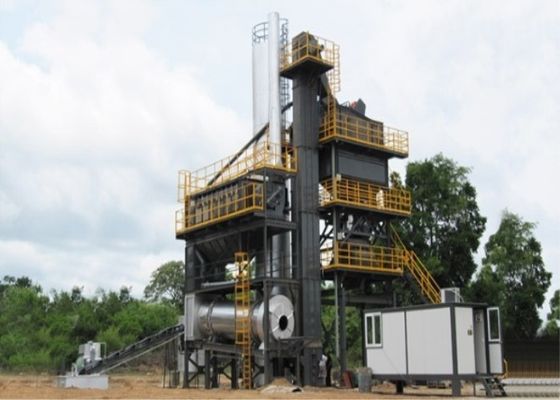

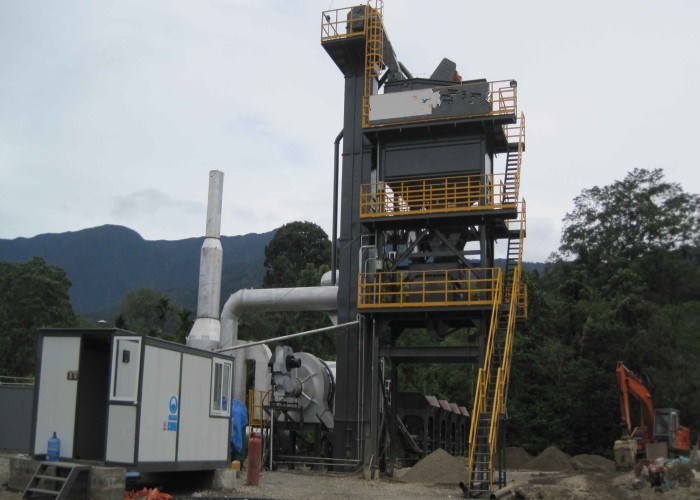

100TPH Complete Set Stationary Asphalt Mixing Plant with Vibrating screen

China 100TPH Complete Set Stationary Asphalt Mixing Plant with Vibrating screen supplier

Large Image :  100TPH Complete Set Stationary Asphalt Mixing Plant with Vibrating screen

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE/SGS/ISO9001
Model Number: GLB-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 500set per month
Detailed Product Description
Capacity: 80~90t/h Mixer Capacity: 3000kgs
Hot Agg Bin: 50 M3 Recycling Filler Tank: 30m3
Mixer Type: Twin Shaft Cold Feeding Capacity(m3): 32
Power: 255KW Bitumen: ±0.2%
Powder: ±0.2% Aggregate: ±0.5%

100TPH Complete Set Stationary Asphalt Mixing Plant with Vibrating screen



  • Model and technical data:
  • Plant type: GLB-1000
  • Weigh accuracy: 0.3% for asphalt, 0.5% for filler, 0.5% for aggregates
  • Capacity:80~90t/h
  • Total power: 255KW
  • Fuel consumption: 6.5kg / metric tonne (product)
  • Ambient temperature: 5ºC~+50ºC
  • Emission≤20mg/Nm3(Using the Bag filter)
  • Standard: GB/T17808-199
  • Structure: modular



  • Scope and quotation:
  • Cold Feed
  • Cold bin
  • Capacity: 8m3/each
  • Height of each bin: 2,850mm
  • Quantity: 4 sets
  • Width of each bin: 3,500mm

  • Belt feeder
  • Capacity: 50t/h each
  • Variable-speed geared motor
  • Quantity: 4 sets
  • Horizontal collecting belt



  • Dryer and burner
  • Driven by friction-driven variable speed motor: 4x7.5kW
  • Optimized flight structure with replacement design.
  • Dimension: φ1,750mm(D)×7,000mm(L)
  • Rock wool isolated, stainless steel covered.
  • Temperature sensor with thermocouple, wear proof
  • Air compressor:2m3/min, 0.6 m3 air tank
  • Burner: Low-pressure,Bubble automization,
  • light/heavy oil, 800 kg/h.



  • Hot Bucket elevator
  • Capacity: 100 t/h
  • Motor: 18.5 kW
  • Bucket chain elevator



  • Vibrating screen and Hot hopper
  • Linear vibration, 4 kinds of aggregates, 4 deck
  • Imported motor, electro-vibrator,
  • Motor: 3.2kW×2
  • Sealed, dust proof., negative-pressure
  • Spec of screen mesh: 4×4, 10×10, 18×18,25×25
  • We can also supply special mesh size according to customer demands.



        Hot hopper:

        4 aggregate hoppers and 1 waste bin and 1 recovery filler temporary bin

        Level indicator (Upper) and for overflow bin

        Effective capacity of aggregate bin is 10 m3

           Sampling door

        Thermostat in sand hopper

        Negative pressured structure (dust proof) and connections



        Weighing system and Mixer

        3 Toledo load cells, adjustable double door

        Aggregate Weighing:





        Filler Weighing:

        3 Toledo load cells, butterfly valve.

        Direct input from load cell to PLC, high accuracy



Bitumen weighing:

 3 Toledo load cells





         Mixer:

         Type: Twin-shaft type, central lubricating device.

          Motor: 18.5kW×2

          Capacity: 80t / h, 1000kg/batch

          Life for paddle and liner: 100,000 batches

          Mixing period: 45 seconds.





Specifications:



GLB Series(bottom type finished storage silo)
Type Production Hot Agg Bin Capacity Finished Storage Bin Weighing Accuracy
GLB-600 48 t/h 7 m3 600 kg 30 t



Aggregate:±0.5%

Filler :±0.25%

Bitumen :±0.25%



GLB-800 64 t/h 7 m3 800 kg 30 t
GLB-1000 80 t/h 10 m3 1000 kg 50 t
GLB-1200 96 t/h 10 m3 1200 kg 50 t
GLB-1500 120 t/h 30 m3 1500 kg 50 t
GLB-2000 160 t/h 50 m3 2000 kg 100 t/200 t
GLB-2500 200 t/h 50 m3 2500 kg 100 t/200 t
GLB-3000 240 t/h 50 m3 3000 kg 100 t/200 t
GLB-4000 320 t/h 75 m3 4000 kg 100 t/200 t/300 t
