160TPH Complete Set PLC Control Bitument asphalt mix plant 50Tons Finished Storge Bin

China 160TPH Complete Set PLC Control Bitument asphalt mix plant 50Tons Finished Storge Bin supplier
160TPH Complete Set PLC Control Bitument asphalt mix plant 50Tons Finished Storge Bin supplier 160TPH Complete Set PLC Control Bitument asphalt mix plant 50Tons Finished Storge Bin supplier

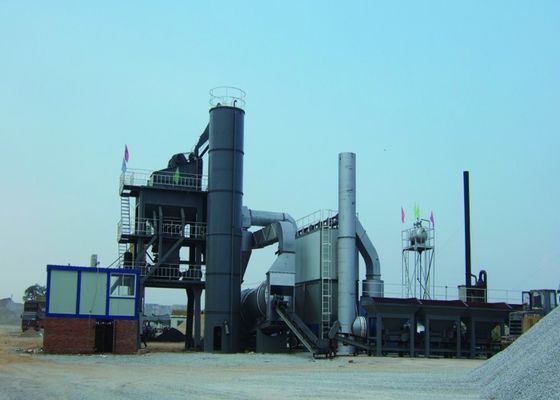

Large Image :  160TPH Complete Set PLC Control Bitument asphalt mix plant 50Tons Finished Storge Bin

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: CE/SGS/ISO9001
Model Number: GLB-2000

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 500set per month
Contact Now
Detailed Product Description
Capacity: 160t/h Mixer Capacity: 2500kgs
Hot Agg Bin: 50 M3 Finished Storage Bin: 100 T/200 T
Fuel Consumption: ≤6.5kg/t Working Cycle Period: 45 Second
Power: 255KW Bitumen: ±0.2%
Powder: ±0.2% Aggregate: ±0.5%
High Light:

asphalt batching plant

,

asphalt concrete plant



160TPH Complete Set PLC Control Bitument asphalt mix plant 50Tons Finished Storge Bin



Specifications:



GLB Series(bottom type finished storage silo)
Type Production Hot Agg Bin Capacity Finished Storage Bin Weighing Accuracy
GLB-600 48 t/h 7 m3 600 kg 30 t



Aggregate:±0.5%

Filler :±0.25%

Bitumen :±0.25%



GLB-800 64 t/h 7 m3 800 kg 30 t
GLB-1000 80 t/h 10 m3 1000 kg 50 t
GLB-1200 96 t/h 10 m3 1200 kg 50 t
GLB-1500 120 t/h 30 m3 1500 kg 50 t
GLB-2000 160 t/h 50 m3 2000 kg 100 t/200 t
GLB-2500 200 t/h 50 m3 2500 kg 100 t/200 t
GLB-3000 240 t/h 50 m3 3000 kg 100 t/200 t
GLB-4000 320 t/h 75 m3 4000 kg 100 t/200 t/300 t



  • Model and technical data: Plant type: GLB-2000
  • Capacity:160t/h
  • Fuel consumption: 6.5kg / metric tonne (product)
  • Weigh accuracy: 0.3% for asphalt, 0.5% for filler, 0.5% for aggregates
  • Emission≤20mg/Nm3(Using the Bag filter)
  • Total power: 255KW
  • Structure: modular
  • Ambient temperature: 5ºC~+50ºC
  • Standard: GB/T17808-199
  • Scope and quotation:
    • Cold Feed
  • Cold bin

Capacity: 8m3/each

Quantity: 4 sets

Width of each bin: 3,500mm

Height of each bin: 2,850mm

  • Belt feeder

Capacity: 50t/h each

Quantity: 4 sets

Variable-speed geared motor

  • Horizontal collecting belt



  • Dryer and burner

Dimension: φ1,750mm(D)×7,000mm(L)

Driven by friction-driven variable speed motor: 4x7.5kW

Optimized flight structure with replacement design.

Rock wool isolated, stainless steel covered.

Temperature sensor with thermocouple, wear proof

Burner: Low-pressure,Bubble atomization,

light/heavy oil, 800 kg/h.

Air compressor:2m3/min, 0.6 m3 air tank



Feature:

  • Tte hot elevator adopts the double Gall's chain for hoisting,which not only prolongs the service life of the hoisting machine but also improves the running stability;
  • The optimized flights structure of drying drum makes the drying system more effective and stable;
  • Overall modular design makes the transportation and installation more convenient and fast;
  • The computer-controlled system,auto/manual switchable,and auto self-diagnosis program makes the operation easy and safe;
  • The mixer uses the high strength wearable material which increases the service life;
  • Total dust collection with 1st-level inertial collecting,2nd-level wet collecting and negative pressure design for complete tower modules,not only practical and economic,but to reduce initial cost for the customer;
  • The linear-mode screen driven by imported vibrator improves the screening efficiency and reduces the failure rate of plant;



Type GLB-2000
Capacity 160T/h
Power 205kW
Mixer Capacity 2500KG
Fuel oil consumption 6.5KG/T
Weighing Accuracy AGGREGATE:±0.5% Filler:±0.5% BITUMEN:±0.25%

160TPH Complete Set PLC Control Bitument asphalt mix plant 50Tons Finished Storge Bin
