7.4Mpa 27m3/ h Concrete Pump Machine , Air Cooling System Electric Skid Steer Concrete Pump

China 7.4Mpa 27m3/ h Concrete Pump Machine , Air Cooling System Electric Skid Steer Concrete Pump supplier

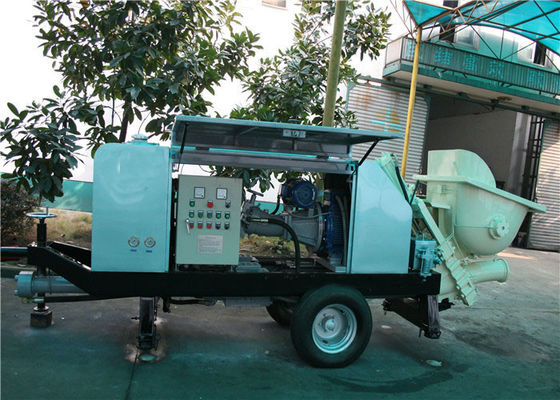

Large Image :  7.4Mpa 27m3/ h Concrete Pump Machine , Air Cooling System Electric Skid Steer Concrete Pump

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE/SGS/ISO9001
Model Number: HBT30-1407

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: US$31,000-US$32,000/unit
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 1,000pcs per month
Detailed Product Description
Valve: Slide Valve Max. Concrete Pump Pressure: 7.4Mpa
Max. Thero. Concrete Delivery: 27m3 / H Max. Vertical Delivery: 110 M
Max. Horizontal Delivery: 500 M Max. Aggregate Size: 40(125A)
Main Electric Motor: 45kw(37kw Optional ) Power Supply: 380V / 50Hz
Weight: 2600kgs Overall Dimension: 5060 × 1200 × 1760mm


7.4Mpa 27m3/ h Concrete Pump Machine , Air Cooling System Electric Skid Steer Concrete Pump

30m3 / h Electric Concrete Pump HBT30 - 1407 With 380V / 50Hz Power Supply For Concrete Pumping Works
30m3/h Electric Concrete Pump HBT30 - 1407 with 380V/50Hz power supply

Specifications:


Specification

HBT30-1407

Valve

slide valve

Max . concrete pump pressure

7.4Mpa

Max. thero. Concrete delivery

27m3/ h

Max. vertical delivery

110 M

Max. horizontal delivery

500 M

Max. aggregate size

40(125A)

Diameter of delivery cylinder ×stroke

Ф195×1400mm

Slump

8-23cm

Oil cylinder ×stroke

Ф100×1400mm

Hopper capacity/ material feeding height

0.25/1380 m3/mm

Main electric motor

45kw(37kw optional )

Mixing electric motor

4kw

Power supply

380V/50Hz

Total quality

2600kg

Overall dimension

5060×1200×1760mm

Trailer speed

8km/hour


Description:


1 . Intelligent power control system to regulate the engine speed automatically, for smooth and efficient

operation

2 . Plunger pump with constant power, to ensure the efficiency of main engine

3 . Good sealing S-valve, installed with floating wear resistant ring

4 . High-quality wear resistant alloy components for long service-life

5 . High delivery pressure for demand of high-rise and long distance projects

6 . Air cooling system, without dependence of external water

7 . PLC system to ensure best control performance

8 . With re-pumping function to smooth construction of better accessibility

9 . Equipped with wired remote controller, easy to operate




Applications:

1 .  Conveying floor heating lightweight foamed cement, mortar, fine aggregate concrete
2 .  Conveying refractory and insulation materials
3 .  Conveying greening soil in ecological environment construction
4 .  Conveying all kinds of engineering construction in the plain concrete, fiber concrete
5 . Pressure grouting of foundation pile

Competitive Advantage:

1 . Using Bosch Rexroth of Germany to supply hydraulic components. Its high reliability and longer
     economic life will enhance the overall quality of the machine as a whole.
2 . Adopting double pumps double returning inflow open hydraulic pressure system, so that oil out
    pumping and direction switching are operating independently, rendering the system simpler and
    more reliable.
3 . Using returned oil filter technology to prevent alien Objects from entering the hydraulic circuit,
     further Improving the reliability of the system.
4 . Using the anti-wear hydraulic oil specially made by Esso of US enhacing durability of the machine
5 . S Valve and gate valve pumps are all equipped with Pressure regulating device which is quicker,
     more reliable and oil does not leak out.
6 . The S pipe is mounted in whole with high grade manganese steel and the fractioning surface is
     welded up with anti - wear materials and thus, possessing and being wear resistant. The smooth
    and non accumulating design of the interior of the pipe gives a smooth concrete flow hence further
    improving the efficiency.
7 . The high wearing part and cutting ring of the so called “eye-glass” plate of the S valve is made of
     wear resistant alloy to increase its economic life.
8 .The stirring and mixing system use a specially designed double enclosed structure, further improving
    sealing of the system and giving a more effective protection of the motor.
9 . Humanized and artificially intelligent electronic Control system makes operation simple
10 . Using a central programmable control unit (PLC) with various preinstalled programs for various auto
      protection modes, which ensures and strengthens the reliability of the system.
11 . Fully enclosed electrical control box enables the Machine to function normally in adverse environ -              Ments.
12 . Key electrical components have been sourced from world famous brands such as Scheneider
       of France, Mitsubishi and Panasonic of Japan, which guarantees product reliability and a low
       failure rate.

7.4Mpa 27m3/ h Concrete Pump Machine , Air Cooling System Electric Skid Steer Concrete Pump
