Mini Diesel Towed Fine Stone Hydraulic Concrete Pump 30mm Aggregate Diameter

China Mini Diesel Towed Fine Stone Hydraulic Concrete Pump 30mm Aggregate Diameter supplier

Large Image :  Mini Diesel Towed Fine Stone Hydraulic Concrete Pump 30mm Aggregate Diameter

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE/SGS/ISO9001
Model Number: XBS20-08-33

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: US$25,000-US$27,000/unit
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 1,000pcs per month
Detailed Product Description
Valve: S Tube Valve Max. Concrete Pump Pressure: 8Mpa
Max. Thero. Concrete Delivery: 20 M3 / H Outlet Opening Diameter: Φ125
Max. Horizontal Delivery: 350 M Max. Vertical Delivery: 140 M
Diesel Engine Power: 56KW Max.Diameter Of Aggregates: 30 Mm
Weight: 2300kgs Overall Dimension: 4300 × 1500× 1750mm

Mini Diesel Towed Hydraulic Fine Stone Concrete Pump , 30mm Aggregate Diameter Concrete Squeeze Pump​





20m3/h Diesel Fine Stone Concrete Pump With 30mm Aggregate Diameter





Specifications:



Item Unit Parameter
Pumping system Theoretical max. discharging volume m³/h 20
  Theoretical max. delivery pressure Mpa 8
  Max. delivery frequency times/min 16
  The type of distribution valve   S tube valve
  Specification of delivery cylinder mm 140×1200
  Specification of main oil cylinder mm 80/50×1200
  Type of main oil pump   A10V045
  Oil tank capacity L 200
  Outlet opening diameter mm Φ125
  Inner dia. of delivering pipe mm Φ100(Φ80)
Power system Diesel engine model   1004-4 Lovol Engines
  Diesel engine power Kw 56
  Rated speed r/min 2200
Hydraulic system Hydraulic oil circuit type   Open circuit
  Max.oil pressure of pumping system MPa 25
  Max.oil pressure of mixing system MPa 9
  Max. mixing speed r/min 40
  Max.diameter of aggregates mm 30
  Outlet dimension (length×width×height) mm 4300×1500×1750
  Weight Kg 2300
  Pulling speed Km/h ≤8
  Max. delivery distance horizontal 350 m
    vertical 140 m

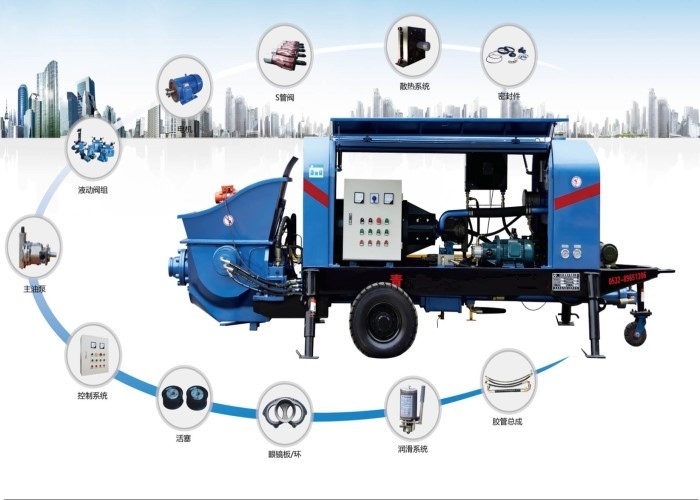

Configuration:



1 . Main oil pump: Shanghai Liyuan (Chinese famous brand), SKS
2 . Diesel Engine: Lovol Engines 1004-4 Type (a famous brand by Sino-British Joint-Venture)

3 . Main oil cylinder:Changsha Xieli (Chinese famous brand), the seal fittings adopt American park
4 . Hydraulic valves: Shanghai Lixin and Beijing Huade (Chinese famous brands)
5 . Main electric components: Schneider and LS
6 .  Hydraulic hose connector: full set of American Eaton
7 . 100 m delivery pipeline, spare parts and maintenance tools





Description:


1 . Intelligent power control system to regulate the engine speed automatically, for smooth and efficient

operation

2 . Good sealing S-valve, installed with floating wear resistant ring

3 . Plunger pump with constant power, to ensure the efficiency of main engine

4 . High delivery pressure for demand of high-rise and long distance projects

5 . High-quality wear resistant alloy components for long service-life

6 . PLC system to ensure best control performance

7 . Air cooling system, without dependence of external water

8 . Equipped with wired remote controller, easy to operate

9 . With re-pumping function to smooth construction of better accessibility




Applications:

1 .  Conveying floor heating lightweight foamed cement, mortar, fine aggregate concrete
2 .  Conveying greening soil in ecological environment construction

3 . Conveying refractory and insulation materials
4 .  Pressure grouting of foundation pile

5 . Conveying all kinds of engineering construction in the plain concrete, fiber concrete
