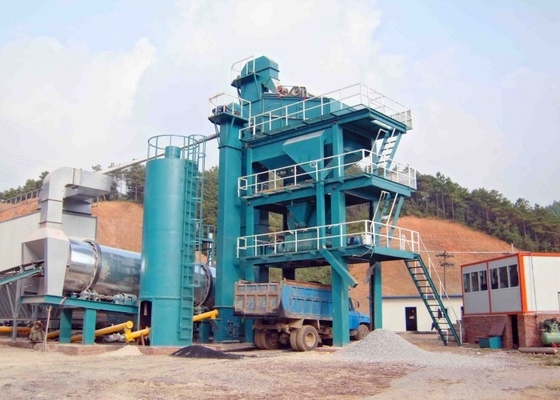

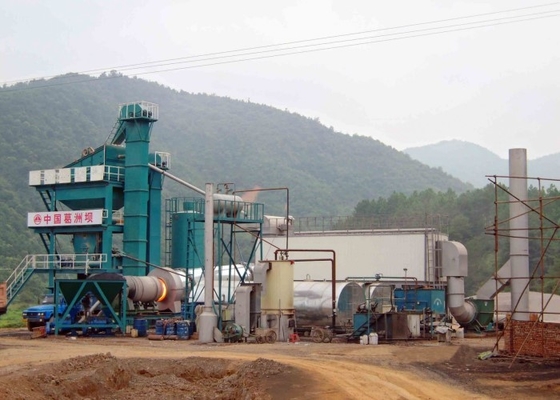

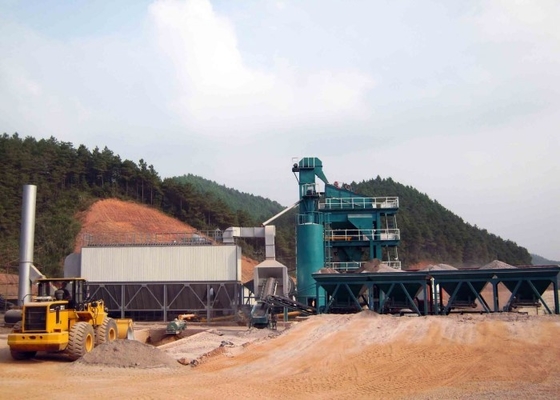

255KW Fixed Type Asphalt Mixing Plant With 32CBM Cold Feeding Bin And Weight System

China 255KW Fixed Type Asphalt Mixing Plant With 32CBM Cold Feeding Bin And Weight System supplier

Large Image :  255KW Fixed Type Asphalt Mixing Plant With 32CBM Cold Feeding Bin And Weight System

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE/SGS/ISO9001
Model Number: GLB-2000

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 500set per month
Detailed Product Description
Capacity: 160t/h Mixer Capacity: 2500kgs
Hot Agg Bin: 50 M3 Finished Storage Bin: 100 T/200 T
Fuel Consumption: ≤6.5kg/t Working Cycle Period: 45 Second
Power: 255KW Bitumen: ±0.2%
Powder: ±0.2% Aggregate: ±0.5%



255KW Fixed Type Asphalt Mixing Plant With 32CBM Cold Feeding Bin And Weight System



Feature:



Tte hot elevator adopts the double Gall's chain for hoisting,which not only prolongs the service life of the hoisting machine but also improves the running stability;

The computer-controlled system,auto/manual switchable,and auto self-diagnosis program makes the operation easy and safe;

The optimized flights structure of drying drum makes the drying system more effective and stable;

Overall modular design makes the transportation and installation more convenient and fast;

Total dust collection with 1st-level inertial collecting,2nd-level wet collecting and negative pressure design for complete tower modules,not only practical and economic,but to reduce initial cost for the customer;

The mixer uses the high strength wearable material which increases the service life;

The linear-mode screen driven by imported vibrator improves the screening efficiency and reduces the failure rate of plant;



Model and technical data:



Plant type: GLB-2000

Fuel consumption: 6.5kg / metric tonne (product)

Capacity:160t/h

Emission≤20mg/Nm3(Using the Bag filter)

Weigh accuracy: 0.3% for asphalt, 0.5% for filler, 0.5% for aggregates

Structure: modular

Total power: 255KW

Standard: GB/T17808-199

Ambient temperature: 5ºC~+50ºC



Specifications:



GLB Series(bottom type finished storage silo)
Type Production Hot Agg Bin Capacity Finished Storage Bin Weighing Accuracy
GLB-600 48 t/h 7 m3 600 kg 30 t



Aggregate:±0.5%

Filler :±0.25%

Bitumen :±0.25%



GLB-800 64 t/h 7 m3 800 kg 30 t
GLB-1000 80 t/h 10 m3 1000 kg 50 t
GLB-1200 96 t/h 10 m3 1200 kg 50 t
GLB-1500 120 t/h 30 m3 1500 kg 50 t
GLB-2000 160 t/h 50 m3 2000 kg 100 t/200 t
GLB-2500 200 t/h 50 m3 2500 kg 100 t/200 t
GLB-3000 240 t/h 50 m3 3000 kg 100 t/200 t
GLB-4000 320 t/h 75 m3 4000 kg 100 t/200 t/300 t



  • Scope and quotation:
  • Cold Feed
  • Capacity: 8m3/each
  • Cold bin
  • Width of each bin: 3,500mm
  • Quantity: 4 sets
  • Belt feeder
  • Height of each bin: 2,850mm
  • Quantity: 4 sets
  • Capacity: 50t/h each
  • Horizontal collecting belt
  • Variable-speed geared motor



  • Dryer and burner
  • Dimension: φ1,750mm(D)×7,000mm(L)
  • Optimized flight structure with replacement design.
  • Driven by friction-driven variable speed motor: 4x7.5kW
  • Temperature sensor with thermocouple, wear proof
  • Rock wool isolated, stainless steel covered.
  • light/heavy oil, 800 kg/h.
  • Burner: Low-pressure,Bubble atomization,
  • Air compressor:2m3/min, 0.6 m3 air tank





Type GLB-2000
Capacity 160T/h
Power 205kW
Mixer Capacity 2500KG
Fuel oil consumption 6.5KG/T
Weighing Accuracy AGGREGATE:±0.5% Filler:±0.5% BITUMEN:±0.25%



255KW Fixed Type Asphalt Mixing Plant With 32CBM Cold Feeding Bin And Weight System
