Programmable Control Stationary Asphalt Mixer Plant Full Automatic With 3000kgs Mixer Capacity

China Programmable Control Stationary Asphalt Mixer Plant Full Automatic With 3000kgs Mixer Capacity supplier
Programmable Control Stationary Asphalt Mixer Plant Full Automatic With 3000kgs Mixer Capacity supplier Programmable Control Stationary Asphalt Mixer Plant Full Automatic With 3000kgs Mixer Capacity supplier

Large Image :  Programmable Control Stationary Asphalt Mixer Plant Full Automatic With 3000kgs Mixer Capacity

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: CE/SGS/ISO9001
Model Number: GLB-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 500set per month
Contact Now
Detailed Product Description
Capacity: 240TPH Mixer Capacity: 3000kgs
Hot Agg Bin: 50 M3 Finished Storage Bin: 100 T/200 T
Fuel Consumption: ≤6.5kg/t Working Cycle Period: 45 Second
Power: 436KW Bitumen: ±0.2%
Powder: ±0.2% Aggregate: ±0.5%
High Light:

asphalt batching plant

,

asphalt concrete plant

Programmable Control Stationary Asphalt Mixer Plant Full Automatic With 3000kgs Mixer Capacity



240Tons / Hour Capacity Mobile Asphalt Batching Plant GLB-3000 With 3000kgs Mixer Capacity

240 TPH Stationary Asphalt Batching Plant GLB-3000 With 50 m3 Hot Agg Bin Burner



Specifications:



GLB Series(bottom type finished storage silo)
Type Production Hot Agg Bin Capacity Finished Storage Bin Weighing Accuracy
GLB-600 48 t/h 7 m3 600 kg 30 t



Aggregate:±0.5%

Filler :±0.25%

Bitumen :±0.25%



GLB-800 64 t/h 7 m3 800 kg 30 t
GLB-1000 80 t/h 10 m3 1000 kg 50 t
GLB-1200 96 t/h 10 m3 1200 kg 50 t
GLB-1500 120 t/h 30 m3 1500 kg 50 t
GLB-2000 160 t/h 50 m3 2000 kg 100 t/200 t
GLB-2500 200 t/h 50 m3 2500 kg 100 t/200 t
GLB-3000 240 t/h 50 m3 3000 kg 100 t/200 t
GLB-4000 320 t/h 75 m3 4000 kg 100 t/200 t/300 t

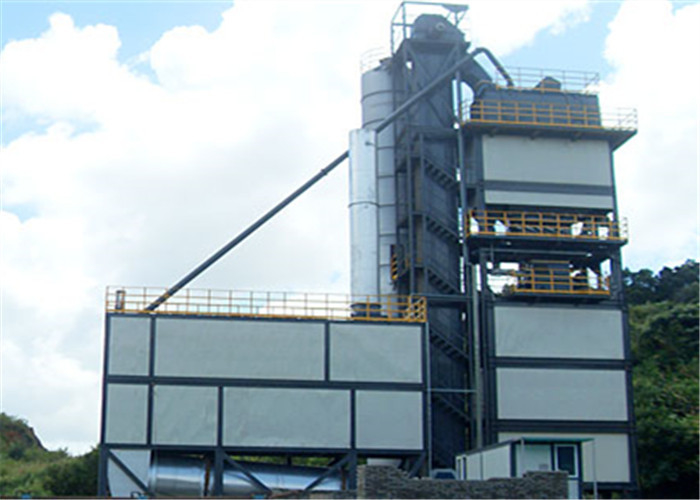

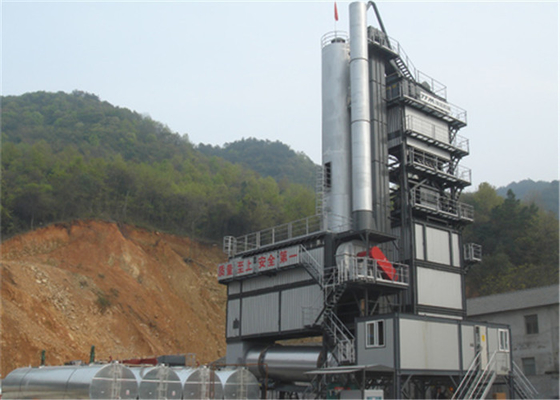

Brief introduction for asphalt mixing plant


VISBULL develops newest intermittent asphalt mixing plant, integrating international advanced technology with fine craftsmanship. It’s characterized by reliable function, environment friendliness and excellent performance and widely used in construction of highway, airport, dam and so on.


Characteristics for asphalt mixing plant


1) Fitted with mixer of twin horizontal mixing shafts, which is powerful and could produce homogenous mixture within little time span;
2) Highly efficient and reliable drying drum, reducing fuel cost by 20%;
3) Unique low pressured programmable oil burner, boasting advantage of energy efficiency of CIB burner as well as flexibility of PLC controller;
4) Modular design, convenient to transport and install;
5) Scientific design in terms of dust collection, noise depression and waste emission, effectively eliminating pollution issue and providing cleaning production environment;
6) Adopts European standard in terms of heat power system, which is enhanced by accurate weighing system, reducing oil and electricity consumption;
7) Weighing system, accurate, reliable and resistant to interference of external influence;
8) Intelligent control system, user-friendly, easy to operate and smart in data management;
9) Screening system, efficient and long service life;
10) Finished product storage system has huge capacity and is fitted with device to prevent segregate;
11) Double-layer huge hot aggregate bin, improved structure that prevents obstruction or blockage, ensuring stabile and accurate dosage

Programmable Control Stationary Asphalt Mixer Plant Full Automatic With 3000kgs Mixer Capacity
