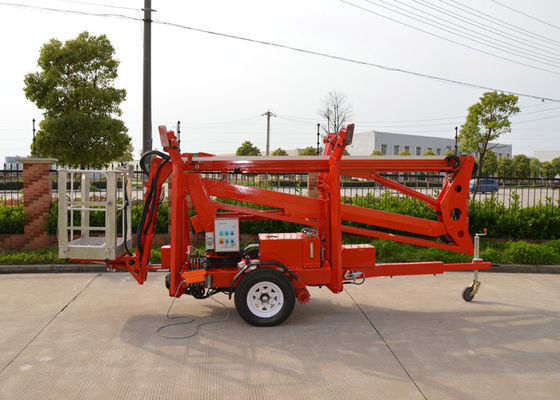

16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16

China 16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16 supplier
16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16 supplier 16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16 supplier 16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16 supplier 16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16 supplier

Large Image :  16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: ISO/CE
Model Number: KD-P16

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received your deposit
Payment Terms: L/C at sight, T/T . Western Union, MoneyGram
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Working Height Maximum: 16m Platform Height Maximum: 14m
Lateral Outreach: 4.5m Platform Size: 0.95×0.65×1.1m
Overall Stowed Length: 6.5m Total Weight: 2000kg
Loading Capacity: 200kg Platform Rotation: 100°
Turntable Swing: 350°continuous Drive Speed -stowed: 35km/h
High Light:

Trailer Mounted Boom Lift

,

Articulating Boom Lift

16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16



16M Trailer Mounted Articulated Boom Lift Hydraulic Towable Cherry Picker KD-P16 With  2Ton Operating Weight​



Specifications:



►Industry leading working envelope

►Articulating boom

►Multiple job site application, indoors and outdoors

►high and low operation panel

►Hydraulic outriggers and outrigger interlocks

►Hydraulic surge brakes

►350°non-continuous turntable rotation

►Made of high strength steel, famous china brand

►All pipelines put inside the machine, to aviod tangled sun and rain or other objects

►Protective covers for oil-tank, emergency controls and etc.



Description

KD-P16

Max. working height

16.00m

Max. platform height

14.00m

Loading capacity

200kgs

Lateral Outreach

5.50m

Jib rotation

100°

Turntable rotation

350°

Size of platform

0.95×0.65×1.1m

Overall stowed length

6.50m

Overall stowed width

1.53m

Overall stowed height

2.10m

Total weight

2000kgs

Traveling speed

35km/h

standard power source

Electric 220V AC power

optional power sources

Diesel engine or Battery



16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16

16M Trailer Mounted Boom Lift Hydraulic Towable With 14M Platform Height KD-P16
