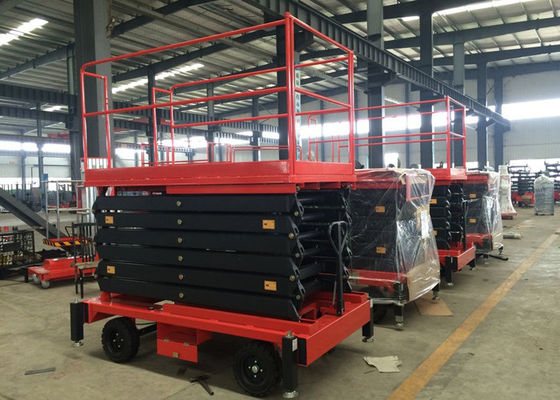

300KG Capacity Electric Hydraulic Mobile Scissor Lift 11M Lifting Height

China 300KG Capacity Electric Hydraulic Mobile Scissor Lift 11M Lifting Height supplier

Large Image :  300KG Capacity Electric Hydraulic Mobile Scissor Lift 11M Lifting Height

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE
Model Number: SJY0.3-11

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received your deposit
Payment Terms: L/C at sight, T/T . Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Platform Height Maximum: 11m Max. Work Height: 12.8m
Platform Size: 2100*1140mm Lift Capacity: 300kg
Working Voltage: AC380,AC220,or AC110 Net Weight: 1380kg
Overall Length: 2280mm Overall Width: 1340mm

300KG Capacity Electric Hydraulic Mobile Scissor Lift 11M Lifting Height



Description:

Mobile lift platform is versatile aerial work special equipment.The it scissor mechanical structure, make the lifting platform lifting has high stability, wide operating platform and high bearing capacity, make the work high above the range is bigger, and is suitable for many people work at the same time.It makes the work high above the more efficient, safe and more security.



Features:

1. SJY series scissor lift applicable in a lot of fields, e.g. for overhead equipment installation, maintenance and decoration, freights delivery, loading and manufactured according to JG/T5100-1998 Scissor Type Aloft Work Platform.

2. This platform lifting oil cylinder has set with unloading limiting valve, on rising to the highest state, when hydraulic system has occurred leakage, it can also stably be lowered.

3. This platform has set up double control electric lifting switch; both personnel on the ground and lifting personnel with the platform can control the rising and lowering pf the platform.

4. This platform can be equipped with (select the component) manual operated oil pump, enable it to be used without power supply.

5. This platform cant be used at the location with combustible gas and other easy combustible and explosive substances. If there is demand for the use in place with easy combustible and explosive substances, then it can only use manual operation oil pump.



Specifications:

Model Unit KDSJY0.3-11
Rated capacity kg 300
Plate height(max) mm 11000
Plate height (min) mm 1560
Plate size(l*w) mm 2100*1140
Working voltage v AC380,AC220,or AC110
Working voltage v DC24,or AC_DC24
Motor power 380v 1.5kw
Motor power 220v 2.2kw
Overall length mm 2280
Overall width mm 1340
Overall height mm 2596
Met weight kg 1380



300KG Capacity Electric Hydraulic Mobile Scissor Lift 11M Lifting Height

300KG Capacity Electric Hydraulic Mobile Scissor Lift 11M Lifting Height
