Articulated Boom Upright Mobile Elevating Work Platform Diesel Powered 18.1M Maximum Horizontal Reach

Good quality Crawler Bulldozer for sales
Good quality Crawler Bulldozer for sales
Devoting Creates Value. Thanks for KUDAT's lasting supporting and guidance. With your help and instruction, I win more market share.

—— MAXWELL MACHINERY

Thanks for KUDAT'S suggestion for our project, we bought all machines, their machines work well in our working sites, thanks!

—— GOODER PROJECT CONSTRUCTION

KUDAT's machinery are reliable really, their service is available and on time always, thanks!

—— REALAR CONSTRUCTION

I'm Online Chat Now

Articulated Boom Upright Mobile Elevating Work Platform Diesel Powered 18.1M Maximum Horizontal Reach

China Articulated Boom Upright Mobile Elevating Work Platform Diesel Powered 18.1M Maximum Horizontal Reach supplier

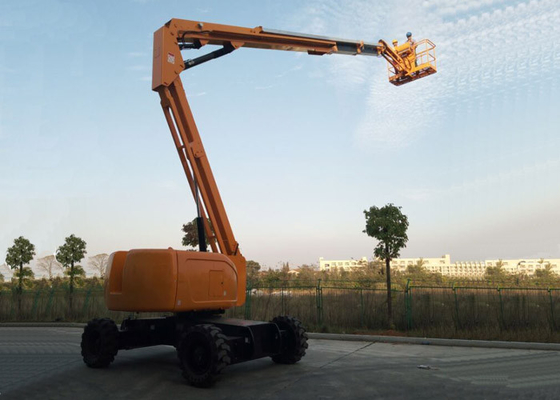

Large Image :  Articulated Boom Upright Mobile Elevating Work Platform Diesel Powered 18.1M Maximum Horizontal Reach

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: ISO/CE
Model Number: GTZZ38Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received your deposit
Payment Terms: L/C at sight, T/T . Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Working Height Maximum: 39.8m Platform Height Maximum: 38.1m
Horizontal Reach Maximum: 18.1m Platform Size: 2.44*0.91m
Wheelbase: 3.90m Ground Clearance-center: 430mm
Lift Capacity (restricted): 480kg Platform Rotation: 160°
Turntable Swing: 360°continuous Drive Speed -stowed: 4.4km/h
Gradeability -stowed (2WD): 40% Turning Radius - Outside: 6.75m

Articulated Boom Upright Mobile Elevating Work Platform Diesel Powered 18.1M Maximum Horizontal Reach



Measurements Specifications:

Articulated Boom Upright Mobile Elevating Work Platform Diesel Powered 18.1M Maximum Horizontal Reach



MODEL                                                                                              GTZZ38Z

MEASUREMENTS                                                               Metric                   US

Working height maximum

39.8m

130ft7in

Platform height maximum

38.1m

125ft

Horizontal reach maximum

18.1m

59ft

A

Platform length-8ft model

2.44m

8ft

B

Platform width-8ft model

0.91m

3ft

C

Height-stowed

3.05m

10ft5in

D

Length-stowed ---jib extended



14.7m

48ft3in



Length-stowed ---jib retracted



11.46m

37ft7in

E

Width –axle retracted

2.49m

8ft2in



Width –axle extended

3.9m

12ft7in

F

Wheelbase

3.9m

12in7in

G

Ground clearance-center

0.43m

1ft5in

PRODUCTIVITY

Lift capacity (restricted)

480kg

1056Ibs

Lift capacity (non-restricted)

230kg

506lbs

Platform rotation

160°

Jib rotation

135°

Turntable Swing

360°continuous

Drive speed -stowed

4.4km/h

2..73mph

Travel speed -raised or extended

1.1km/h

0.68mph

Grade ability -stowed

40%

25%

Turning radius -inside--axle retracted

3.13m

10ft3in

Turning radius - inside- axle extended

3.13m

10ft3in

Turning radius –outside- axle retracted

Turning radius - axle extendeded      outside

5.43m

17ft10in

Turning radius –outside-- axle extended

6.75m

22ft

Controls

12V DC Proportional

12V DC Proportional

Solid tires

12.00-20

POWER

Power source



Cummins B3.3-C80(60kw)

Perkins 400 61hp (45.5kw)

Auxiliary power unit

24V  DC

12V  DC

Hydraulic tank capacity

265L

Fuel tank capacity

151L

Drive

4*4*4

WEIGHT

 4WD

20000kg

44 092lbs

STANDARDS COMPLIANCE                   EN280,JG/T5101,Q/ADZV001-2008













































































































Features:



1. It is a self-propelled articulated boom lift.

2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 12m to 45m.
STANDARDS COMPLIANCE EN280,JG/T5101,Q/ADZV001-2008



1.  Functions of positioning upward&outward and crossing

1. Functions of positioningupward&outward and crossingThearticulating boom machine offers

muti-faceted functions of positioningupward,outward and crossing, so that you can reach whatever placeyouwant to go through various ways.



2. Complete safety devices

Standard configuration include four-link weighing devices, overload protection, automated detection device for detecting platform amplitude and height (automatic amplitude limiter), automatic control of

the movement speed of the boom and traveling speed, and high-precision load sensor, to ensure the safety and stability of operation in all directions.

self-propelled boom/22m articulated boom lift


3. Compact structure
Thestructures with size lower than 16m and electric motor type arecompact,which
make the boom can go through small opening and operateinsmall space.

4. Control box
Fullproportion joysticks and CAN bus as well as PLC control system With high
positioning accuracy are easy to be controlled and can beoperatedby the users
at will. The stainless steel control box with sealingcoverand box cap, which can
help prevent the electrical components formoistureand prevent the damage from
welding slag.

self-propelled boom/22m articulated boom lift

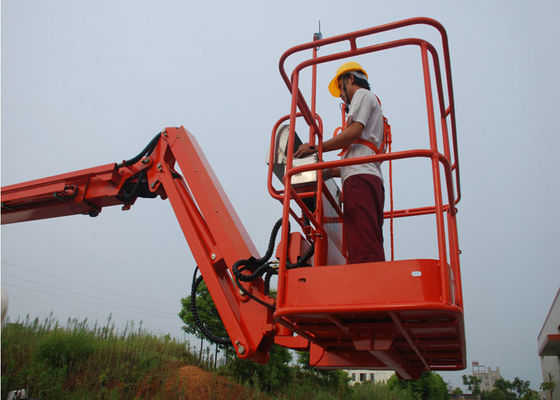

5. Strobe light------Give alerting signal when working



6. Rotary platform------The rotary actuator with standard configuration can make the rotation range

of the platform reach ±80°, which makes your work more flexible.



self-propelled boom/22m articulated boom lift

7. Active oscillation axle

Active oscillation axle can preceive the terrain, and can guarantee that the

machine can land on four wheels even on uneven road without reducing the

driving force

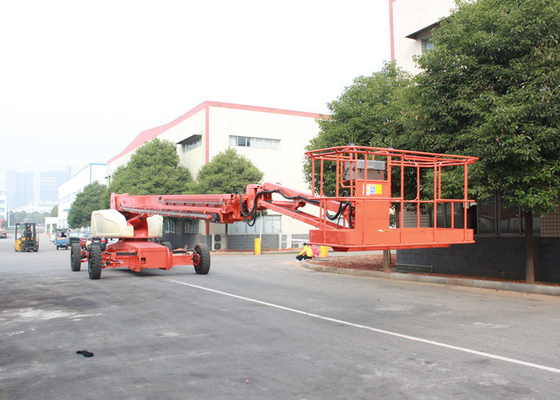

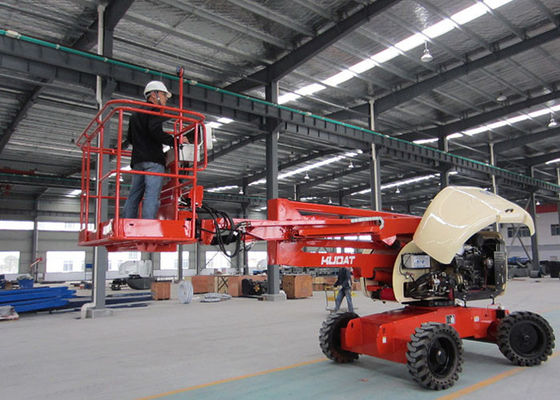

8. Swing-out engine tray   It is easy for maintenance and repair



self-propelled boom/22m articulated boom lift



9. Hydraulic system

Closed circuit hydraulic traveling system has speed easily to be adjusted, wide speed range; the boom's hydraulic

system adopts double value core circuit. which enhance the safety. The

hydraulic components adopt European and North American pure brands.



self-propelled boom/22m articulated boom lift



10. Driving mode 4*4(optional)

The four-wheel drive is powerful with great grade-ability



self-propelled boom/22m articulated boom lift



11.   Production plant



self-propelled boom/22m articulated boom lift
