16 Meter 2WD Articulated Hydraulic Boom Lift With 230kgs Capacity 180 Return Platform

China 16 Meter 2WD Articulated Hydraulic Boom Lift With 230kgs Capacity 180 Return Platform supplier

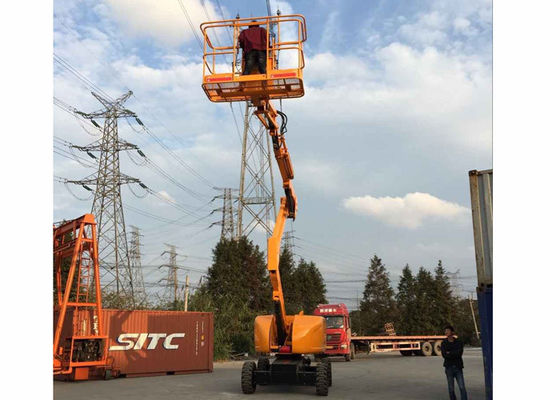

Large Image :  16 Meter 2WD Articulated Hydraulic Boom Lift With 230kgs Capacity 180 Return Platform

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE/ISO9001
Model Number: GTZZ16Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD49800-USD51000 per unit
Packaging Details: Naked packing
Delivery Time: 30 working days after received your deposit
Payment Terms: L/C at sight, T/T . Western Union, MoneyGram
Supply Ability: 100 units per month
Detailed Product Description
Platform Height Maximum: 17.7m Horizontal Reach Maximum: 7.65m
Platform Size: 1.83*0.76m Lift Capacity (restricted): 230kg
Platform Rotation: 180° Turntable Swing: 360° Continuousss
Drive Speed -stowed: 6.3km/h Power Source: Cummins B3.3NA-C60 4 60HP (45kw)
Color: Yellow Driving: 4*2

16 Meter 2WD Articulated Hydraulic Boom Lift With 230kgs Capacity 180 Return Platform



Specifications:



MODEL                                           GTZZ16Z

MEASUREMENTS

Metric

US

Working height maximum

17.7m

58ft

Platform height maximum

16m

52ft6in

Horizontal reach maximum

9.5m

25ft

A

Platform length-8ft model

0.76m

2ft6in

C

Platform width-8ft model

1.83 m

6ft

D

Height-stowed

2.38 m

7ft5in

E

Length-stowed

6.80 m

22ft3in

B

Width

2.29 m

7ft5in

F

Wheelbase

2.20 m

7ft2in

G

Ground clearance-center

430 mm

1ft4in

Lift capacity (restricted)

230kg

500Ibs

Platform rotation

180°

Turntable Swing

360°non-continuousss

Turntable tail swing

0

Drive speed -stowed

6.3 km/h

3.9mph

Gradeability -stowed (2WD)

30%

Turning radius - inside

3.0m

9ft8in

Turning radius – outside

5.2m

17ft

Controls

24V DC Proportional

Solid tires

33/12-20 D625

POWER

Power source

Cummins B3.3NA-C60 4 60HP (45kw)  Perkins 400 61hp (45.5kw)

Auxiliary power unit

24V  DC

Hydraulic tank capacity

113.6L



Fuel tank capacity

100L



2WD

7657kg



STANDARDS COMPLIANCE

EN280,JG/T5101,Q/ADZV001-2008



Description:

Our boom lift can be divided into two types, telescopic type and articulating type. Our telescopic boom lift is powered by an internal combustion engine, 4*4 driving mode and 4*2 driving mode are available for you to choose. This type of aerial working platform with a wide operation range, it could be used to handle aerial operation for a variety of rough terrain. Currently it is mainly applied for building construction, bridge building, ship building, outdoor advertisement facility installation, as well as construction of airport, mine, port and more.



Features:

1. It is a self-propelled articulated boom lift.
 2. It can realize the lifting upwards, onwards, etc.
 3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
 4. The working height ranges from 12m to 26m.
 5. The horizontal reach of the self-propelled articulated boom lift ranges from 7m to 13.3m.



16 Meter 2WD Articulated Hydraulic Boom Lift With 230kgs Capacity 180 Return Platform

16 Meter 2WD Articulated Hydraulic Boom Lift With 230kgs Capacity 180 Return Platform

16 Meter 2WD Articulated Hydraulic Boom Lift With 230kgs Capacity 180 Return Platform

16 Meter 2WD Articulated Hydraulic Boom Lift With 230kgs Capacity 180 Return Platform
