Product Details:
Payment & Shipping Terms:
|
Power Type: | Diesel | Rated Capacity: | 3500 Kg |
---|---|---|---|
Load Center: | 500 Mm | Mast Lifting Height: | 3000 Mm |
Max. Grade Ability: | 10% | Wheel Base: | 1500 Mm |
Fork Size(L*W*T): | 1070*125*50 Mm | Min Turning Radius: | 2300 Mm |
Traveling Motor: | 16.6 Kw | Total Weight: | 5100 Kg |
High Light: | material handling forklift,power lift forklift |

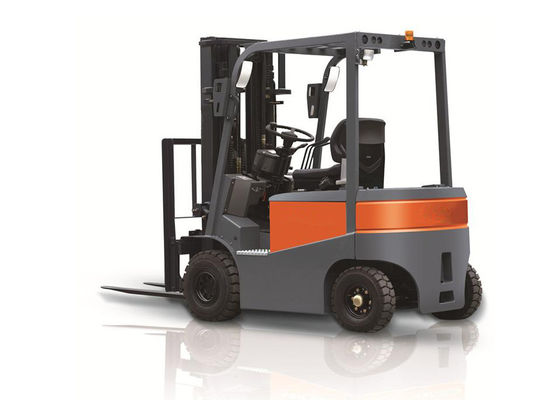

Chinese Industrial Forklift Truck CPD35 / Four Wheel electric fork trucks
Description:
1. Original brushless DC motor technology, with high torque, low rpm, low current, and high efficiency working.
2.120 ampere-current battery is low replacement cost.
One battery set is 3000-7000 cheaper than normal forklift.
3.10 ampere charger can bring 15-25kwh power savings than normal ones during 8 hours charging in one day.
4. Super minor turning radius 1.2 meter, operate freely in narrow space, can drive into the container or large truck directly, and load/unload cargoes flexibly.
5. Moderate lifting speed of the fork to ensure the human safety and cargo safety.
6.0.8 meter overall width makes the forklift can freely through the narrow doors, such as cold store and elevator. Particularly applicable to the refrigeration storage and supermarket.
7. Radiation protection and anti-jamming, suitable for production workshop and warehouse of the high-end electronic products.
8. Brushless motor with no need for changing the carbon brush, saving the time, effort, and money.
9. Professional sales group and service team will let you reassuring buy and safety operation, makes you feel convenient and happy.
Bettering mini electric forklift model of economical and practical, pioneer of agility and convenience.
After-sale service:
1. 6-24 months warranty policy
2. We will send spare parts replace the defective or broken parts
3. Choose the cheapest and safest shipping company to save the cost
4. Track the order until you get the goods
5. Protection of your sales area, ideas of design and all your private information
Specifications:
Model | CPD35 | |
Load capacity kg | 3500 | |
Load center mm | 500 | |
Max lifting height mm | 3000 | |
Tilting angles (forward-backward) | 6°/12° | |
Lifting speeds(with load/without load)mm | 420/260 | |
Free lift mm | 160 | |
Max Driving seeds(with load/without load )mm | 14.5 | |
Min turning radius mm | 2300 | |
Slope-climbing gradient | 10% | |
Formal dimension | Length mm | 3620 |
Width mm | 1220 | |
Height mm | 2220 | |
Mast height fork lowered | 1995 | |
Overhead height fork raised mm | 4030 | |
Fork size L*W*T mm | 1070*125*50 | |
Fork overhang mm | 490 | |
Wheel base mm | 1500 | |
Rear overhang mm | 395 | |
Lateral fork adjustment | 245-1038 | |
Under –clearance mm | 125 | |
Tread front mm | 980 | |
Tread rear mm | 950 | |
Battery voltage v | 48 | |
Battery capacity Ah | 550 | |
Traveling motor Kw | 16.6 | |
Lifting motor Kw | 10 | |
Steering motor Kw | ||
Tire front | 7.00-12-13PR | |
Tire rear | 18X7-8-15PR | |
Total weight kg | 5100 | |
Electronic controllers | GE/CURTIS/ZAPI |
