Product Details:
Payment & Shipping Terms:
|
Power Type: | Diesel | Rated Capacity: | 30000 Kg |
---|---|---|---|
Load Center: | 1250 Mm | Mast Lifting Height: | 3500 Mm |
Max. Grade Ability: | 20% | Free Lift Height: | 210 Mm |
Fork Size(L*W*T): | 2440×320×110 Mm | Min Turning Radius: | 6800 Mm |
Max Driving Speeds: | 28 Km/h | Total Weight: | 39500 Kg |
High Light: | material handling forklift,power lift forklift |

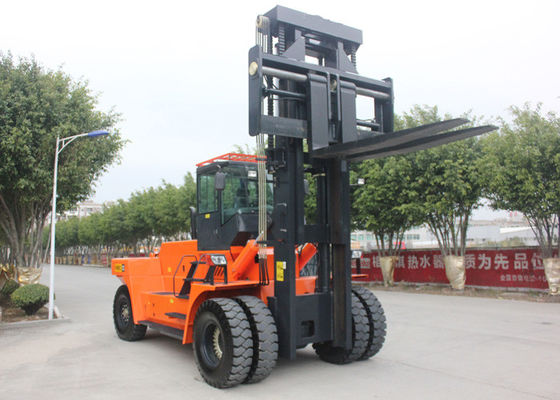

Large Counterbalance Industrial Forklift Truck , Container Lift CPCD300 30 Ton Load Capacity
Features:
Engine: 6CTA8.3-C260 Dongfeng Cummins Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Transmission & torque convert: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line use the first brand Parker Oil Tube, impact resistance, wear resistance and long service life
Explosion proof safety valve for pipeline: avoid the pipeline bursting suddenly,ensure system working safety and reliability.
Cooling system: adopt independent transmission oil and hydraulic oil cooling,increasing system stability
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles.The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use Cascade Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
Cab: with air-conditioning and heating, and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation. Damping luxury cab with sunroof, wide view and comfortable seats, flexible control.
Specifications:
Configuration | Model | Unit | CPCD300 | |
Vehicle configuration | ||||
Performance | Rated load | 30000 | ||
Load center | 1250 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 9640 | |
Width | mm | 3200 | ||
Height | mm | 4000 | ||
Mast lifting height | mm | 3500 | ||
Fork size (L*W*H) | mm | 2440X320X110 | ||
Min. turning radius | mm | 6800 | ||
Max. travel speed (with load) | Km/h | 28 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 39500 | ||
Tyre | Front | 4X14.00-24/28PR | ||
Rear | 2X14.00-24/28PR | |||
Wheel tread | Front | mm | 2490 | |
Rear | mm | 2450 | ||
Wheelbase | mm | 4800 | ||
Min. ground clearance | mm | 350 | ||
Engine | Model | 6CTAA8.3-C260 | ||
Rated power/rotate speed | KW/r.pm | 191/2200 | ||
Max. torque/rotate speed | N.m/r.pm | 1025/1400 |
