Heavy Duty Industrial Forklift Truck Material Handling Equipment , ISO

China Heavy Duty Industrial Forklift Truck Material Handling Equipment , ISO supplier

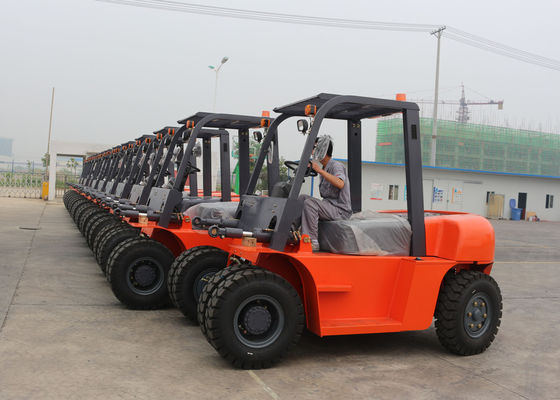

Large Image :  Heavy Duty Industrial Forklift Truck Material Handling Equipment , ISO

Product Details:

Place of Origin: CHINA
Brand Name: KUDAT
Certification: ISO / CE
Model Number: CPCD60

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing in container
Delivery Time: 15 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 1500 units per month
Detailed Product Description
Power Type: Diesel Rated Capacity: 6000 Kg
Load Center: 600 Mm Mast Lifting Height: 3000 Mm
Max. Grade Ability: 20% Free Lift Height: 197 Mm
Fork Size(L*W*T): 1220×150×55 Mm Min Turning Radius: 3300 Mm
Max Driving Speeds: 26 / 28 Km/h Total Weight: 8640 Kg

6Ton Diesel Forklift With Full Free Mast And Solid Tires CPCD60





Specifications:



         Model

Unit

CPCD60

Power type



Diesel

Rated capacity

kg

5000

Load center

mm

600

 Mast Lifting height

mm

3000

Free lift height

mm

197

Fork size(L*W*T)

mm

1220×150×55

Tilting Angles(Front/Rear)

deg

6°/12°

Front overhang

mm

590

Exterior Size

Length without fork

mm

4375

Overall width

mm

1995

Mast drop

mm

2500

Max. lift

mm

4420

Front-wheel Overhead

mm

2450

Min Turning Radius

mm

3300

Min. intersecting aisle

mm

3000

Speeds

Max Driving speeds

km/h

26/28

Lifting speeds

mm/s

500/590

Lowering speeds

mm/s

≤600

Max. grade ability

%

19

Total weight

kg

8640

    Tires

Front



8.25-15-14PR

Rear



8.25-15-14PR

Wheelbase

mm

2250

Tread

Front

mm

1470

Rear

mm

1700

Min. ground clearance

mm

190

Engine

Model



Made in China 6102BG

Rated output

kw/rpm

73/2200

Rated torque

N.m/rpm

290/1650

No. of cylinder



6

Displacement

L

5.789

Fuel tank capacity

L

140



Product Features:



A. Engine



1.) High efficient ISUZU/Xichai/Chaochai engine





B. Driving Axle



2.) Eqiupment with heavy -duty driving axle with big bearing capacity and enhanced oil -cooled braking system, increase the reliabillgy and durability





C. Automatic Instrument



3.) Centralize controlled lever and stimulant automatic instrument is easy operated and has beautiful appearance





D. Advanced Hydraulic System



4. ) Advanced hydraulic system ,2-speed lifting system can automatically adjust its lifting speed according to the goods weight ,electric controlled valve can work safety and efficiently



E. Automatic Stepless Speed



5.) Full automatic stepless speed adjustable electric controlled transmission gear box guarantee the forklift with superior travel and track performance.





Standard Configuration:



Diesel forklift truck with 6,000kg load capacity



Equipped with China engine 6110 Or ISUZU 6BG,Hydraulic transmission with TCM-technology



Standard with 3-stage wide-view mast, lifting height is 3,000mm,6000mm



Pneumatic tires, 1220mm or 2000mm forks,Safety seat,Free tool box and spare parts.
