Big Capacity 10 Tons Hydraulic Diesel Material Handling Forklift With Isuzu Engine

China Big Capacity 10 Tons Hydraulic Diesel Material Handling Forklift With Isuzu Engine supplier

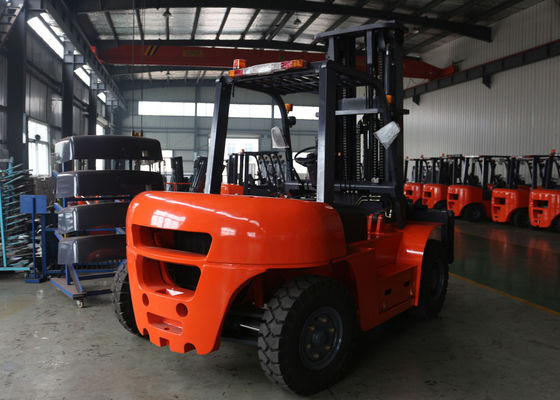

Large Image :  Big Capacity 10 Tons Hydraulic Diesel Material Handling Forklift With Isuzu Engine

Product Details:

Place of Origin: CHINA
Brand Name: KUDAT
Certification: ISO / CE
Model Number: CPCD100

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing in container
Delivery Time: 15 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 1500 units per month
Detailed Product Description
Power Type: Diesel Rated Capacity: 10000 Kg
Load Center: 600 Mm Mast Lifting Height: 6600 Mm
Max. Grade Ability: 20% Free Lift Height: 210 Mm
Fork Size(L*W*T): 1220×170×80 Mm Min Turning Radius: 3900 Mm
Max Driving Speeds: 26 / 30 Km/h Total Weight: 12460 Kg

Heavy Capacity KUDAT Brand 10Tons Hydraulic Diesel Forklift CPCD100 With Isuzu Engine



Specifications:

         Model

Unit

CPCD100

Power type



Diesel

Rated capacity

kg

10000

Load center

mm

600

Mast Lifting height

mm

6600

Free lift height

mm

210

Fork size(L*W*T)

mm

1220×170×80

Tilting Angles(Front/Rear)

deg

6°/12°

Front overhang

mm

718

Exterior Size

Length without fork

mm

4260

Overall width

mm

2245

Mast drop

mm

2850

Max. lift

mm

4325

Front-wheel Overhead

mm

2585

Min Turning Radius

mm

3900

Min. intersecting aisle

mm

3540

Speeds

Max Driving speeds

km/h

26/30

Lifting speeds

mm/s

360/380

Lowering speeds

mm/s

≤600

Max. grade ability

%

22

Total weight

kg

12460

Tires

Front



9.00-20-14PR

Rear



9.00-20-14PR

Wheelbase

mm

2800

   Tread

Front

mm

1600

Rear

mm

1700

Min. ground clearance

mm

245

Engine

Model



Isuzu 6BG1 Engine

Rated output

kw/rpm

37/2650

Rated torque

N.m/rpm

148/1800

No. of cylinder



6

Displacement

L

5.785

Fuel tank capacity

L

140



Advantage:

-This new series forklifts with the latest technical design will provide you excellent operating performance,



-and make your work handier by their high standard performance, comfortable driving experience and the



simple and safe operation.



Environmental Friendly

-The emission meets EC new regulation



-High efficiency hydraulic system to lower the fuel consumption



-Using environmental friendly material.



-Damping device on the mast to reduce impact and vibration



-Sound insulating and absorbing device are used to reduce the noise



Ergonomic design

-Using power braking system to reduce footplate strength



-Control lever right located to effectively reduce drivers arm tiredness



-Dual combined switch lever as a car to enable easy operating



-Wide mast with good visibility



-Wide space for boarding and driving, increasing leg space



-Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off



Safety performance



-Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety



-Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned



-Safety device in mast hydraulic system prevents material falling down in case of hose broken



-High pressure hose is designed far away from the driver



-Safety wire harness, using waterproof plug.
