High Efficiency Industrial Forklift Truck , Dual Fuel Gasoline Forklift Truck

China High Efficiency Industrial Forklift Truck , Dual Fuel Gasoline Forklift Truck supplier

Large Image :  High Efficiency Industrial Forklift Truck , Dual Fuel Gasoline Forklift Truck

Product Details:

Place of Origin: CHINA
Brand Name: KUDAT
Certification: ISO / CE
Model Number: CPQYD20

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing in container
Delivery Time: 15 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 1500 units per month
Detailed Product Description
Power Type: Diesel Rated Capacity: 2000 Kg
Load Center: 500 Mm Mast Lifting Height: 3000 Mm
Max. Grade Ability: 20% Free Lift Height: 60 Mm
Fork Size(L*W*T): 1070×125×45 Mm Min Turning Radius: 2230 Mm
Max Driving Speeds: 17 / 19 Km/h Total Weight: 3320 Kg

2Ton LPG Gasoline Dual Fuel Forklift With 500MM Load Center Distance And 3000MM Lifting Height



Specifications:

                           Model

Unit

CPQYD20

Power type



Gasoline

Rated capacity

kg

2000

Load center

mm

500

 Mast Lifting height

mm

3000

Free lift height

mm

240

Fork size(L*W*T)

mm

1070×125×45

Tilting Angles(Front/Rear)

deg

6°/12°

Front overhang

mm

485

Exterior Size

Length without fork

mm

2502

Overall width

mm

1170

Mast drop

mm

1995

Max. lift

mm

4030

  Front-wheel Overhead

mm

2070

      Min Turning Radius

mm

2230

     Min. intersecting aisle

mm

2000


Speeds

Max Driving speeds

km/h

17/19

    Lifting speeds

mm/s

530/550

   Lowering speeds

mm/s

450/550

            Max. grade ability

%

21/20

            Total weight

kg

3320

Tires

 Front



7.00-12-12PR

Rear



6.00-9-10PR

                      Wheel base

mm

1600


Tread

     Front

mm

970

 Rear

mm

970

  Min. ground clearance

mm

110

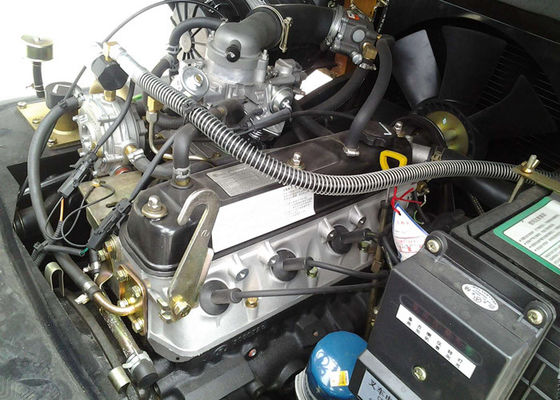

Engine

Model



Chinese GQ4Y Gasoline engine

 Rated output

kw/rpm

34/2500

Rated torque

N.m/rpm

142/1800

No. of cylinder



4

Displacement

L

2.237

     Fuel tank capacity

L

60



OPTIONAL ITEMS
Mast

2-STAGE MAST 3M

2-STAGE MAST 3.3M

2-STAGE MAST 3.5M

2-STAGE MAST 4M

3-STAGE MAST 5M

3-STAGE MAST 5.5M

3-STAGE MAST 6M

Fork

1220 MM FORKS

1370MM FORKS

1520 MM FORKS

1820 MM FORKS

2000 MM FORKS

Accessories side shift; fork positioner, etc.
Other items

solid tire, cab with fan or heater, etc.





Advantage:

This new series forklifts with the latest technical design will provide you excellent operating performance, and make your work by their high standard performance, and make your work handier by their high standard performance, comfortable driving experience and the simple and safe operation.



Environmental Friendly

-The emission meets EC new regulation

-High efficiency hydraulic system to lower the fuel consumption

-Using environmental friendly material.

-Damping device on the mast to reduce impact and vibration

-Sound insulating and absorbing device are used to reduce the noise



Ergonomic design

-Using power braking system to reduce footplate strength

-Control lever right located to effectively reduce drivers arm tiredness

-Dual combined switch lever as a car to enable easy operating

-Wide mast with good visibility

-Wide space for boarding and driving, increasing leg space

-Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off





Safety performance

-Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety

-Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned

-Safety device in mast hydraulic system prevents material falling down in case of hose broken

-High pressure hose is designed far away from the driver

-Safety wire harness, using waterproof plug.
