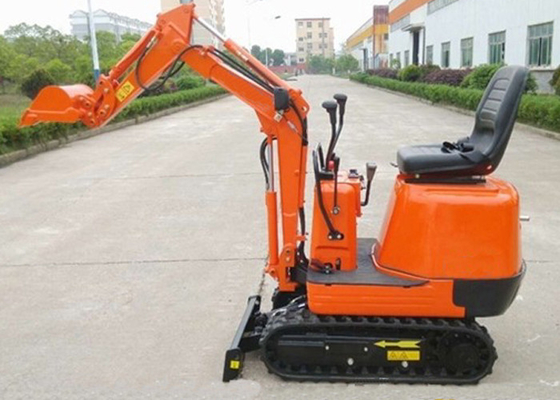

Small Diesel Engine 500kg Hydraulic Excavators For Rent / Home , 6.8kw Power

China Small Diesel Engine 500kg Hydraulic Excavators For Rent / Home , 6.8kw Power supplier

Large Image :  Small Diesel Engine 500kg Hydraulic Excavators For Rent / Home , 6.8kw Power

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE, ISO, Ghost,
Model Number: KD05

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD5000-12000/unit
Packaging Details: Naked packing
Delivery Time: 30 days after receipt of deposit or L/C
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Detailed Product Description
Machine Weight: 500kg Engine Power: 6.8kw/3000rpm
Hydraulic System: 20Mpa Swing Speed: 10rpm
Travel Speed: 2km/h Bucket Digging Force: 7.2KN
Arm Digging Force: 6.3KN Max Grade Ability: 30 Degree
Ground Pressure: 20Kpa Fuel Tank: 4L

 Small Diesel Engine 500kg Hydraulic Excavators For Rent / Home , 6.8kw Power



WORKING RANGE
Boom length 1130mm
Arm length 710mm
Max digging reach 2344mm
Max digging depth 1128mm
Max digging height 2042mm
Max dumping height 1422mm
Min swing radius 1115mm
Rear swing radius 760mm
Max ground digging range 2259mm
Max vertical digging depth 1004mm

PERFORMANCE PARAMETER
Machine weight 500kg
Engine model 188FAM-R37
Engine power 6.8kw/3000rpm
Hydraulic system 20Mpa
Swing speed 10rpm
Travel speed 2km/h
Bucket digging force 7.2KN
Arm digging force 6.3KN
Max grade ability 30
Ground pressure 20Kpa
Fuel tank 4L
Hydraulic oil tank 8L
Bucket capacity 0.012m3
Bucket width 320mm

OVERALL DIMENSIONS
Overall width 700mm
Overall height 1421mm
Overall length 2455mm
Min ground clearance 81mm
Ground contact length of track 790mm
Track width 150mm
Track gange 550mm
