Product Details:
Payment & Shipping Terms:
|

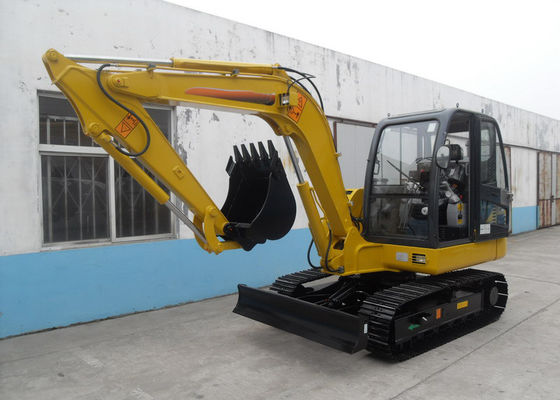

| Product Name: | Hydraulic Excavator | Operation Weight: | 6200KGS |
|---|---|---|---|
| Engine: | Yanmar | Rated Engine Power: | 38.1kw |
| Working Pressure: | 34 Mpa | Max. Digging Reach: | 6245 Mm |
| Max. Digging Depth: | 3875mm | Max. Digging Height: | 5785 Mm |
| High Light: | construction equipment excavator,hydraulic attachments excavators |
||
Imported Japan made engine YANMAR 4TNV94
Ppower 38.1KW/2200RPM, a guarantee of super power
In conformity with the EU III emission control regulations
Imported hydraulic system with dual pump and dual circuit, stable work performance
Guarantee for 3 yrs under normal use and maintenance
Imported hydraulic components, South Korea made main pump, multi-circuit valve, swing motor, walking motor, Japan made or South Korea made gasoline tank
On-line digital monitoring and control system
GPS satellite position and remote diagnose system(optional)
Cold&warm air conditioner supply under different kinds of weather conditions
Light and handy pilot operating system
Steel pedrail
| Excavator model | CT60-7B with cab | |
| Cargo body size (LxWxH) (mm), | load 2 units in | |
| 20GP:5690*2130*2180 | one 40HQ container | |
| Operate weight kg | 6200kg | |
| Bucket capacity M3 | 0.3m³ | |
| Engine model | Yanmar 4TNV94 | |
| Engine power (kw) | 38.1Kw | |
| Swing speed (rpm) | 10 | |
| Ground pressure (KPa) | 34 | |
| Travel speed (km/h) | 4.0/2.5 | |
| Tracking force (kn) | 49.3Kn | |
| Gradeability (°) | 30°(58%) | |
| Upperstrcuture witdth (mm) | 1785 | |
| Undercarriage width (mm) | 1880 | |
| Main dimensions | Cabinet height (mm) | 2650 |
| Rear swing radius (mm) | 1700 | |
| Ground clearance (mm) | 400 | |
| Max.digging radius (mm) | 6245 | |
| Max.digging depth (mm) | 3875 | |
| Max.digging height (mm) | 5785 | |
| Working range | Max.dumping height (mm) | 4095 |
| Max.dozer cutting depth (mm) | 505 | |
| Max.dozer lifting height (mm) | 300 | |
| Germany Roxroth main pump | ||
| U.S.A Parker reducer and travel motor | ||
| Standard | US Parker swing motor | |
| Equipment | US Parker multi-circuit valve | |
| Japanese Bridgestone rubber track | ||
| Cold&warm air conditioner supply under different kind of weather conditions | ||
