Mechanical Type Track Skid Loader , Auxiliary Hydraulic Couplers Skid Loader Rentals

China Mechanical Type Track Skid Loader , Auxiliary Hydraulic Couplers Skid Loader Rentals supplier

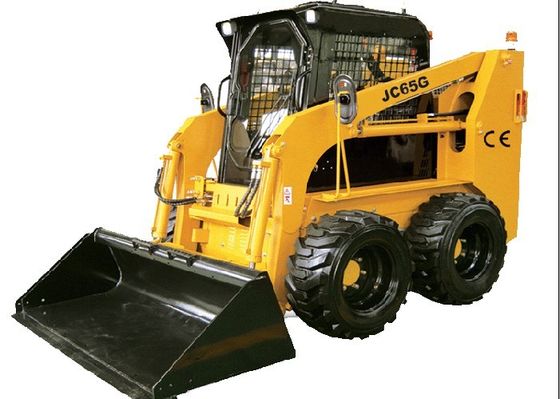

Large Image :  Mechanical Type Track Skid Loader , Auxiliary Hydraulic Couplers Skid Loader Rentals

Product Details:

Place of Origin: CHINA
Brand Name: KUDAT
Certification: CE/Ghost/Emark/ISO
Model Number: JC65G

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Naked Packing in Container
Delivery Time: 10 days after receipt of deposit or L/C
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 2000 units per month
Detailed Product Description
Rated Power: 75 HP Rated Operating Capacity: 950 Kg
Bucket Capacity: 0.5 M3 Weight: 3400 Kg
Max.Travel Speed: 12 M/h Grade Ability: 20 °
Tipping Load: 1900 Kg Lifting Force: 1250 Kg

Mechanical Type Track Skid Loader , Auxiliary Hydraulic Couplers Skid Loader Rentals



2.4 meters Work Arm JC65G Skid Steer Loader Bobcat loader 75HP Power

Main Features of skid steer loader:

1) Good technical parameters with competitive price
2) maneuver in tight spaces, turn within its own length
3) a broad product line, innovative designs, and unsurpassed range of job-matched attachments.
4) Excellent reach & lift height for truck loading (vertical path).
5) more than 20 series attachments for option: pallet fork, swing blade, utility fork grapple, asphalt cutter, backhoe, hydraulic hammer, 4 in 1 bucket, auger, cultivator, and tooth bucket etc
6) attachment can be used with bobcat type skid loader
7) world famous hydraulic systems from America, Japan and Italy
8) famous brand engine with EPA or EC stage II or III from abroad and domestic
9) CE and ISO 9001 certificated
10) versatility, maneuverability and reliability





OPTIONAL:
1)PERKINS ENGINE, HYUNDAI ENGINE, DEUTZ ENGINE, LOVOLE ENGINE AND DOMESTIC ENGINE AND MORE
2)WITH OR WITHOUT HYDRAULIC SERVO(JOYSTICK SYSTEM)
3)ENCLOSED CAB WITH OR WITHOUT AIR CONDITIONER OR HEATER
4)ALL KINDS OF TIRES ( SOLIC, NORMAL, CACUUM) AND DIFFERENT TYPE FOR CHOICE
5)VARIOUS OF ATTACHMENTS



Specifications JC65G
Rated operating capacity(kg)   950
Tipping load(kg)      1900
Bucket capacity(m3)     0.5-0.6
Operating weight(kg)   3400
Max. travel speed(km/h)    12
Hydraulic pump flow(L/min)   75
Fuel tank capacity(L)    90
Tires          12/16.5NHS
Overall dimensions(mm)    3490×1820×2150
Dimensions
Height at maximum extension(mm) 4070
Height to bucket hinge pin(mm)  3100
Width with bucket(mm)    1880
Track width(mm)       1500
Wheelbase(mm)       1085
Ground clearance(mm)    200
Dump angle        30°
Dumping height(mm)     2450
Rollback at ground      26°
Angle of departure      20°
Engine
Maker/Model   Deutz diesel engine
Net power  75hp/2500rpm
Type     4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)  3.2
Standard Configuration Deluxe enclosed operator cab
Hand control system(Mechanical type)
Standard bucket
Auxiliary hydraulic couplers
Optional Preheat starting assist system for extreme cold weather
Cab fitted with a heater as standard
Air conditioner
2-speed transmission system
Optional Attachments: Backhoe,Breaker,Angle
blade,Auger,Sweeper,Pallet fork,Combinition bucket,
Mower,Asphalt cutter, and More
