Crawler SUNWARD Skid Steer Rental with Auto Leveling System ROPS / FOPS

China Crawler SUNWARD Skid Steer Rental with Auto Leveling System ROPS / FOPS supplier

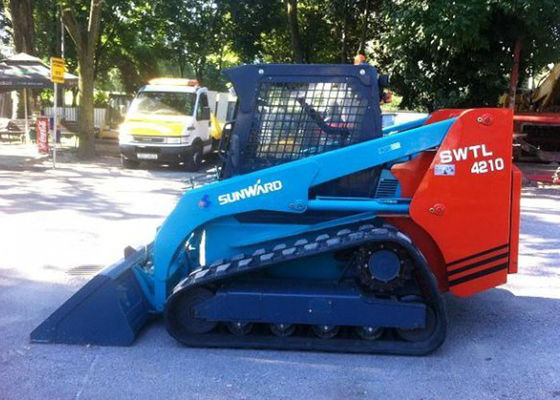

Large Image :  Crawler SUNWARD Skid Steer Rental with Auto Leveling System ROPS / FOPS

Product Details:

Place of Origin: CHINA
Brand Name: SUNWARD
Certification: CE/Ghost/Emark/ISO
Model Number: SWTL4210

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Naked Packing in Container
Delivery Time: 10 days after receipt of deposit or L/C
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 2000 units per month
Detailed Product Description
Rated Power: 75 HP Rated Loading Weight: 1200 Kg
Tipping Load: 3430 Kg Weight: 4360Kg
Max.Travel Speed: 7 M/h / 11 M/h Grade Ability: 20 °
Dumping Reach: 686 Mm Break Force: 3000Kg

Crawler SUNWARD Skid Steer Rental with Auto Leveling System ROPS / FOPS



SUNWARD Brand 75HP Power Crawler Skid Steer Loader SWTL4210  Full Hydraulic System

· Innovative One-piece  mainframe
Hydraulic oil tank, fuel tank and chassis was designed as an integral structure that made the machine more compact and durable.



· Closed circuit hydraulic system
Traveling hydraulic system adopts closed loop circuit with features of compact structure, good maneuverability and less heat  generation.



 · Strong power system
World famous engine generates enough power for all jobs.



 · Bigger lifting height
Optimum design makes the SWL able to reach bigger lifting height in its class.



· Auto-leveling system
When the boom is lifting, the bucket automatically keeps levelling.



 · Safe working condition for operator
The cab gets lots of space and good view. All instruments and operating buttons are within the reach of the operator.It is in line with ROPS/FOPS regulation. Ergonomically designed armrest  prevents the operator from falling off the chair accidentally.



 · Easy operation
Operators may enjoy the Proportional controlled pilot joystick by getting familiar with the machine quickly with less fatigue.



 · Standard quick coupler
Internationally universal quick coupler fits various attachments  in the world.



· Double Accelerograph-control
Accelerograph can be controlled by hand or foot.



 · Multi-function
The machine works with a wide range of attachments, including that of high flow system.



· Convenient Maintenance
All daily maintenance can be completed when open the rear cover.The cabin can be turned forward in large-angle.



· Optional Configuration

Large flow system, side windows, closed cab, heater, air conditioning, multi-function LCD instrumentation, warning lights, reversing alarm, external power supply, etc.



· Optional Aids

All kinds of buckets, four are bucket, hammer, screw drills, fork, cleaning devices, earth-moving shovel, clip Mucha, clamp bucket, digging devices, milling devices, blowing snow machines, etc.



Main Parameters
Dimensions:L x W x H 3660 x 2010 x 2130 (mm)
Total Weight 4360kg
Properties
Load capacity 1200kg
Tipping load 3430kg
Bucket breakout force lift 3000kg
Boom breakout force lift 2440kg
Max. speed 7 / 11 (km/h) (Double speed)
Engine model KUBOTA V3300DI
Engine type 4-cylinder water-cooled diesel engine
Engine emission standards EPA Tire2 / EU Stage II
Engine rated power 54.9kw / 2600rpm
Max. engine torque 244N.m / 1400rpm
Transmission
Type Hydrostatic closed circuit
Main pump 2 x Variable displacement piston pump
Motor 2X Two-step variable radial piston motor + reducer
Hydraulic System
Type Throttle system
Pump Gear Pump
Max. pressure 210bar
Max. flow 83.2+41.6 L/min
Control valve Three joint multi-way valve
Control mode ISO model of pilot control
Electrical Systems
Starter motor 12V / 3.0kw
Alternator 12V / 45A
Battery 100Ah
Service Refill Capacities
Hydraulic oil tank 65L
Fuel tank 85L
Sprocket fuel tank -
Engine oil 13.2L
Engine coolant 8.5L
Running configuration: Track size 450×84×57
Optional Configuration Large flow system, side windows, closed cab, heater, air conditioning, multi-function LCD instrumentation, warning lights, reversing alarm, external power supply, etc.
Optional Aids All kinds of buckets, four are bucket, hammer, screw drills, fork, cleaning devices, earth-moving shovel, clip Mucha, clamp bucket, digging devices, milling devices, blowing snow machines, etc.

Working parameters
A. Max. operating altitude 4025mm
B. Height to bucket hinge pin 3125mm
C. Height to top of cab 2130mm
D. Height to bottom of level bucket 2950mm
E. Overall length without attachment 2889mm
F. Overall length with standard bucket 3660mm
G. Max. height of the unloaded angle 42°
H. Dumping height 2398mm
J. Dumping reach 686mm
K. Bucket on the ground of the flip angle 30°
L. Bucket at the highest flip angle 92°
M. Wheelbase 1600mm
P. Ground clearance 235mm
Q. Angle of departure 36°
R. Without the attachments before turning radius 1458mm
S. Before turning radius 2297mm
T. After the turning radius 1678mm
U. Tail length(rear axle to bumper) 802mm
V. Two track center distance 1530mm
W. Bucket width 2010mm
