4F+2R Fixed Shaft Mechanical Gearbox Small Crawler Dozer T80 for Narrow Ground Construction

China 4F+2R Fixed Shaft Mechanical Gearbox  Small Crawler Dozer T80 for Narrow Ground Construction supplier

Large Image :  4F+2R Fixed Shaft Mechanical Gearbox Small Crawler Dozer T80 for Narrow Ground Construction

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: Ghost/ISO
Model Number: T80

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 300 units per month
Detailed Product Description
Product Name: Crawler Bulldozer Max. Torque: 313.9 N.m
Engine Flywheel Power: 70KW / 95HP Ground Pressure(without Ripper): 53KPa
Operating Weight(not Including Ripper): 8700KGS Digging Depth: 370 Mm
Max. Towing Force: 69 Kn Fuel Consumption Rate: ≤246 G/kw.h

4F+2R Fixed Shaft Mechanical Gearbox  Small Crawler Dozer T80 for Narrow Ground Construction



95HP Power Small Crawler Bulldozer T80 for Engineering Construction

Feature:

  1. The machine is installed with the DONGFANGHONG LR4 A3Z-22 boosting engine, with high power, low noise, energy conservation and low consumption.
  2. Gearbox is 4F+2R fixed-shaft mechanical gear shifting, applicable for varies environments.
  3. Integral trolley traveling construction adopting rigid chassis and semi-rigid hanger.
  4. Advanced operation control system, fully hydraulic aided steering, with flexible and labor-saving operation.
  5. Driver cab is welded with profile steel, with high strength, resistant impact, and good protection safety.
  6. Applicable for construction in narrow ground, with flexible working and high operation efficiency.
  7. The complete machine has good economical power and high reliability, being an ideal machine for project construction.



Technical parameter:



Model

T80

Total weight

8700kg

Max. towing force

69kN

Engine model

LR4A3Z-22

Engine rated power

70KW

Engine rated speed

2200 r/min

Fuel consumption rate

≤246 g/kw.h

Engine Max. torque

313.9N.m

Forward 4 gears

2.4~10.4 km/h

Reverse 2 gears

4.9~8.9 km/h

Max. slope angle

≥30°

Track board width

400mm

Land pressure

53kpa

Overall length

4860mm (If with Scarifier)

Overall width

2480mm

Overall height

2740mm

Landfill Blade width

2300mm

Landfill Blade height

800mm

Blade Max. lifting height

736.5mm

Blade Max. digging depth

370mm

Cutting angle(adjustable)

55°

Towing equipment/Scarifier(Optional)

Fixtel/3 teeth

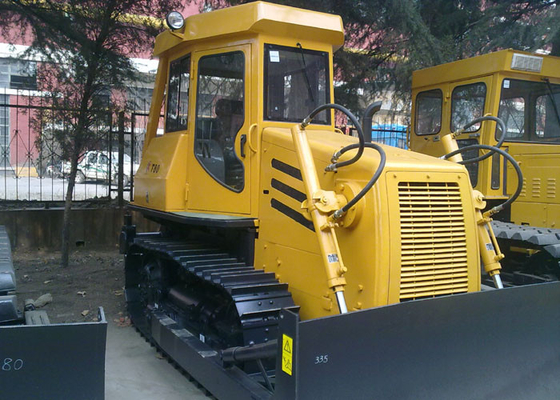

4F+2R Fixed Shaft Mechanical Gearbox  Small Crawler Dozer T80 for Narrow Ground Construction

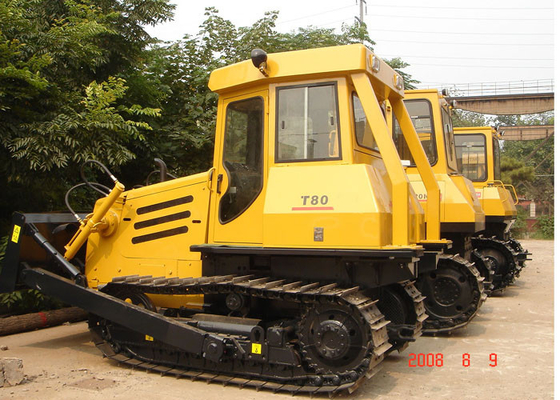

4F+2R Fixed Shaft Mechanical Gearbox  Small Crawler Dozer T80 for Narrow Ground Construction

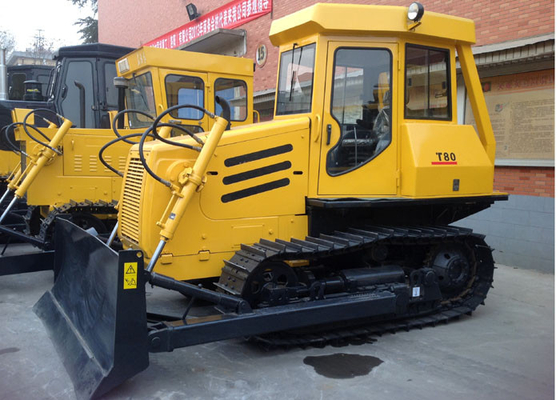

4F+2R Fixed Shaft Mechanical Gearbox  Small Crawler Dozer T80 for Narrow Ground Construction

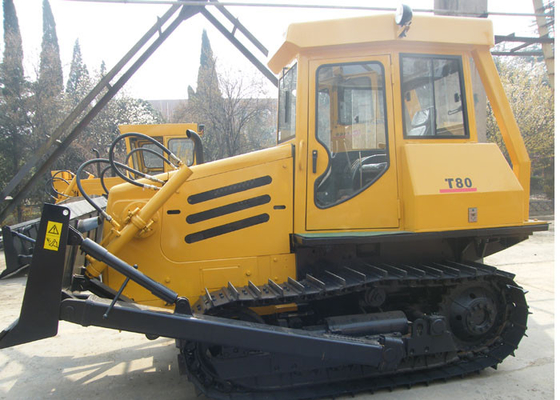

4F+2R Fixed Shaft Mechanical Gearbox  Small Crawler Dozer T80 for Narrow Ground Construction
