120 KW Crawler Bulldozer , Dozer Vehicle With 1095 Mm Blade Lift Height

China 120 KW Crawler Bulldozer , Dozer Vehicle With 1095 Mm Blade Lift Height supplier

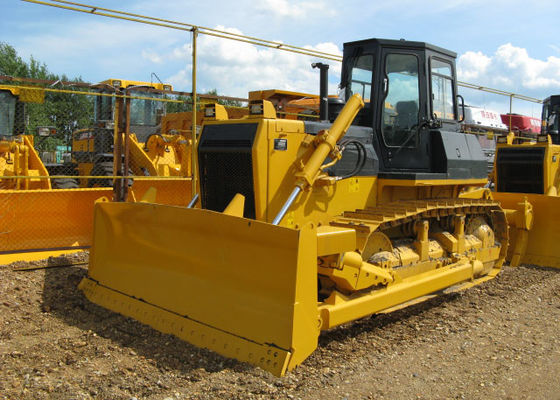

Large Image :  120 KW Crawler Bulldozer , Dozer Vehicle With 1095 Mm Blade Lift Height

Product Details:

Place of Origin: China
Brand Name: Shantui
Certification: Ghost/ISO
Model Number: SD16

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Crawler Bulldozer Ground Clearance: 540mm
Engine Flywheel Power: 163HP Number Of Track Shoes: 37
Operating Weight(not Including Ripper): 17000KGS Max.digging Depth: 420 Mm
Ground Pressure: 67 Kpa Lift Height Of Blade: 1095 Mm



1. Introduction:

Bulldozer SD16 Crawler Bulldozer is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.



2. Technical specification:

ITEM UNIT SD16 Bulldozer
L*W*H (Ripper not included) mm 5140*3388*3032
Operating weight (Ripper not included) t 17
Engine - Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Rated power kW/rpm 120/1850
Gradeability ° 30
Blade type - Straight tilt blade U blade Angle blade
Blade width mm Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040
Dozing capacity m3 Straight tilt blade 4.5 U blade 5 Angle blade 4.3
Ma× drop below ground of blade mm 540
Lift height of blade mm 1095
Ripper type - Three-shank ripper
Ripping depth of ripper mm 572
Lifting height of ripper mm 592
Number of carriers (each side) - 2
Number of track rollers (each side) - 6
Number of track shoes (each side) - 37
Width of track shoe mm 510
Track gauge mm 1880
Ground length and ground pressure mm/MPa 2430-0.067
Pitch mm 203.2
Forward speed km/h 0–3.29
0–5.82
0–9.63
Reverse speed km/h 0–4.28
0–7.59
0–12.53



120 KW Crawler Bulldozer , Dozer Vehicle With 1095 Mm Blade Lift Height

120 KW Crawler Bulldozer , Dozer Vehicle With 1095 Mm Blade Lift Height
