121 kW Rated Power Crawler Bulldozer with Straight 30° Side 25 ° Gradeability

China 121 kW Rated Power Crawler Bulldozer with Straight 30° Side 25 ° Gradeability supplier

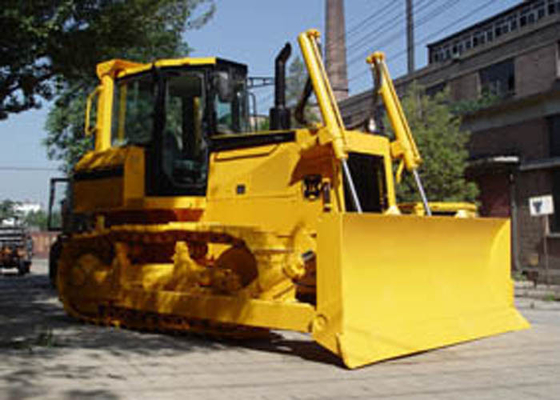

Large Image :  121 kW Rated Power Crawler Bulldozer with Straight 30° Side 25 ° Gradeability

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: Ghost/ISO
Model Number: TY165-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Crawler Bulldozer Ground Clearance: 352.5mm
Engine Flywheel Power: 165HP Max. Torque: 790 N.m
Operating Weight(not Including Ripper): 17800KGS Max.digging Depth: 420 Mm
Ground Pressure: 69.2 Kpa Track Gauge: 2300 Mm

121 kW Rated Power Crawler Bulldozer with Straight 30° Side 25 ° Gradeability





Crawler Bulldozer TY165-2 165HP Power for Construction Site and Mining, 17800 KG Operating Weight

Feature:

TY165-2 bulldozer is semi-rigid suspended, power shift, hydraulically controlled and track-type. It is applicable for road construction, water and electricity engineering farmland leveling, port building, mining and other engineering conditions.



Main specifications (Standard type: straight dozer)
Overall dimensions (L × W × H) :   5236 × 3297 × 3160 mm
Operation weight:  17.8 t
Flywheel power:  121 kW
Max. drawbar pull:  139.6 kN (The efficient force depends on weight and ground surface adherence)
Ground pressure (at operating weight):  69.2 KPa
Min. ground radium:  4.0 m
Min. ground clearance: 352.5 mm
Grade ability:  Straight 30° Side 25 °
 Diesel engine
 Manufactured factory:  Weichai DIESEL ENGINE CO., LTD
Model:  WD10G178E15
Type:  water-cooled, single-row, vertical, 4-stroke-cycle, turbo-charged
Number of cylinders-bore×stroke: 6-120.7 × 152.4mm
Total piston displacement:  10.5 L
Rated RPM:  1850 r/min
Rated power:   121 kW
Oil consumption (at rated power output)
Fuel consumption: ≤ 244 g /kW·h
Lube oil consumption: ≤ 0.6 g /kW·h
Max. torque ( ≤ 1400r/min): ≥ 790 N · m
Cooling method:  closed circulation water cooling
Starting method:  by electric at 24V
 Torque converter and transmission  Single-stage, three unites structure torque converter.
Output power is stable with high performance.
Planetary, power shift transmission with three speeds forward and three speeds reverse. Speed and direction can be quickly shifted.
Travel speed (in theory 1900/min engine speed ):
Forward Reverse
First speed 0— 3.32 km/h First speed 0— 4.00 km/h
Second speed 0— 6.26 km/h Second speed 0— 7.57 km/h
Third speed 0— 11.40km/h Third speed 0— 13.87km/h
 Steering and braking
The steering clutch is tighten by pressured springs and separated hydraulically with oil-type, multi-powder-metal discs.
The brakes are oil, two-direction floating band with mechanism foot pedals, hydraulic boosted. The steering and braking can be actuated in one control.
Transmission, steering and braking operation
The operation of transmission , steering and braking is controlled by single lever . Transmission, left and right steering and braking can be realized for three speeds forward and three speeds reverse by one handle .
 Final drive
The final drives are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal
 Undercarriage system
 The undercarriage is section steel welded track roller frame with diagonal brace.
The track rollers, carrier rollers and front idlers have the same floating seals which are long-service life and seal well.
Number of track rollers: 4 single-flange on each side
2 double-flange on each side
Number of carrier roller : 2 on each side
Number of front idler: one on each side
Track type: single grouser, modular type.
Track adjuster type: by hydraulically adjust
Pitch: 203 mm
Numbers of shoe: 38
Width of shoe: 500mm
Length of track on ground: 2570mm
Sealed and lubricated track (0ptional parts)
The pitch, number of shoes, width of shoe are the same with ordinary track
Implement hydraulic system
 It consists of two group gear pump ,pilot valve, main valve , cylinders, oil filter and lines.
Pump type: two group gear oil pump
Pump flow :
Front pump : 190L /min Pilot pump : 19L /min
System pressure: 12MPa
Basic hydraulic system
 Pump type: gear oil pump
System output: 135 L/min
System pressure: 2.35MPa
 Cab
 The cab with adjustable seat features low noise and wide visible range and contains electrical fan.
The different kinds of cabs as follow can be chosen:
1. Cab with air-conditioner
2. Cab with Rops canopy
3. Rops.
Service refill
Fill location Capacity(L)
Radiator and diesel engine water: 60
Lubricating system of diesel engine Oil: 27.5
Flywheel house, Torque converter ,
Transmission, bevel gear case Oil: 95
Final drive(each side) Oil: 24
Implement hydraulic system Oil: 85
Fuel tank Oil: 230
Track roller, carrier roller, front idler(each) Oil: 0.35
 Blade specifications
 Blade: Straight
Width 3297 mm
Height 1170 mm
Max digging depth: 420mm
Max. ground clearance: 852mm
Tilting angle: 8.5°
Blade capacity: 4.5m 3
 Ripper specifications
 Number of shank : three
Length : 1580mm
Width : 2020mm
Max. Penetration depth : 550mm
Max. Lifting height : 510mm

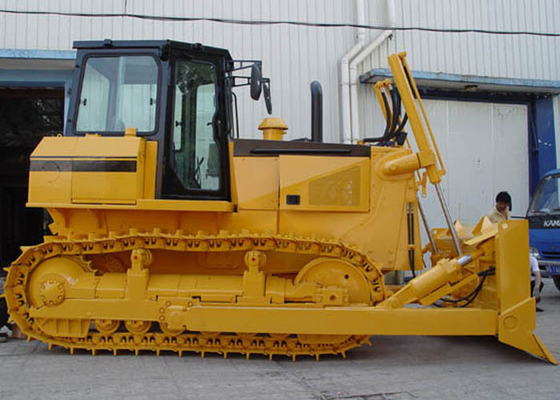

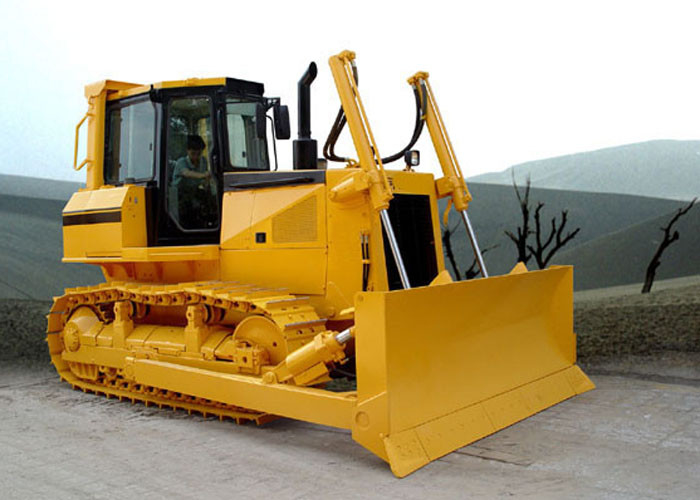

121 kW Rated Power Crawler Bulldozer with Straight 30° Side 25 ° Gradeability

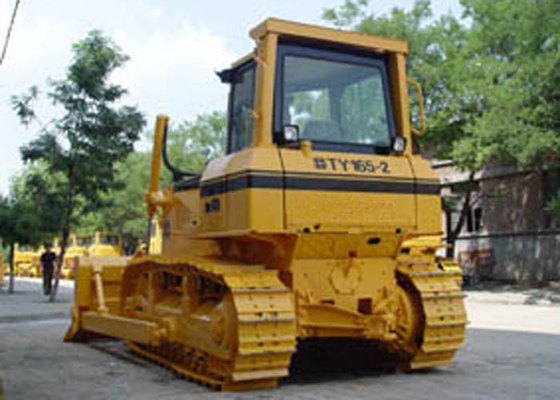

121 kW Rated Power Crawler Bulldozer with Straight 30° Side 25 ° Gradeability
