Product Name: | Hydraulic Excavator | Operation Weight: | 22000KGS |
---|---|---|---|
Engine: | Cummins | Rated Engine Power: | 133 KW |
Max. Bucket Digging Force: | 159.7 KN | Max. Digging Reach: | 9990 Mm |
Max. Digging Depth: | 6875mm | Max. Digging Height: | 9310 Mm |
High Light: | construction equipment excavator,hydraulic attachments excavators |

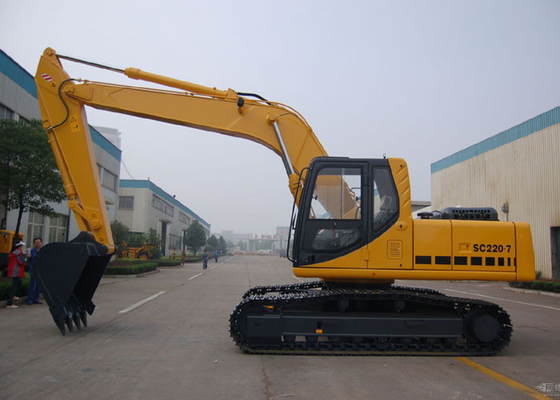

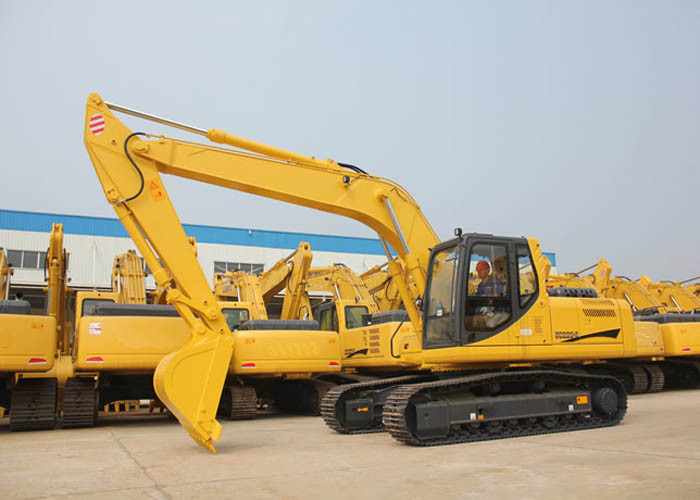

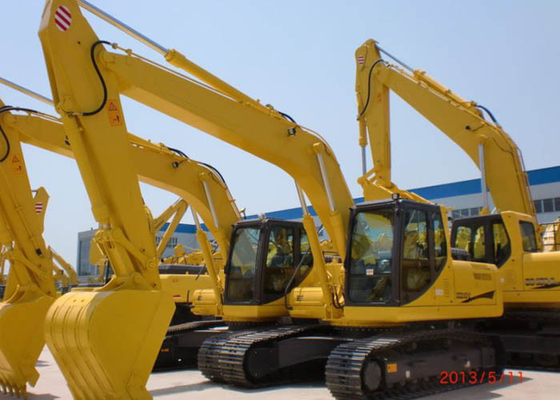

SC220.8 Excavator Heavy Equipment Cummins Engine Excavator Machines
SC220.8 excavator has two engine options, Cummins and Isuzu. It adopts new cab with noise insulation seals. It adopts new seat, new armrest and safety lock, and the harness adopts waterproof plug-in unit, which improves the comfortableness and reliability and improves the operation environment. The new CPU has artificial intelligence and automatic diagnosis function, which can avoid long-time engine running and reduce fuel consumption. The boom joint adopts whole casting steel structure which improves the overall strength and strengthens the working devices. And the tension device is also improves.
Model | Unit | SC220.8 | |
Weight | (T) | 22 | |
Bucket capacity | (m3) | 0.8-1.2 | |
Engine model | ISUZU 6BG1T | CUMMINS 6BTAA5.9 | |
Power | (kw/r/min) | 120/2150 | 133/2000 |
Fuel tank capacity | (L) | 350 | |
Travel speed | (km/h) | 5.2/3.5 | |
Slewing speed | (r/min) | 11.1 | |
Gradeability | (%) | 70 | |
Bucket digging force | (KN) | 159.7 | |
Ground pressure | (KPa) | 52.16 | |
Hydraulic pump model | K3V112DT | ||
Max. flow | (L/min) | 226*2 | |
Work pressure | (MPa) | 34.3 | |
Hydraulic tank volume | (L) | 246 | |
Overall length | (mm) | 9740 | |
Overall width | (mm) | 2980 | |
Overall height | (mm) | 3190 | |
Overall height | (mm) | 3120 | |
Ground clearance (counterweight) | (mm) | 1065 | |
Min. ground clearance | (mm) | 442 | |
Tail slewing radius | (mm) | 2810 | |
Ground contact length of track | (mm) | 3445 | |
Track length | (mm) | 4256 | |
Track gauge | (mm) | 2380 | |
Track width | (mm) | 2980 | |
Track plate width | (mm) | 600 | |
Width of ratory table | (mm) | 2700 |
Max. digging height | (mm) | 9310 |
Max. dump height | (mm) | 6438 |
Max. digging depth | (mm) | 6875 |
Max. vertical digging depth | (mm) | 5860 |
Max. digging depth when digging a 2.5m surface | (mm) | 6735 |
Max. digging distance | (mm) | 10170 |
Max. digging distance on ground | (mm) | 9990 |
Min. slewing radius | (mm) | 3975 |
Max. height at min. slewing radius | (mm) | 7775 |
slewing center to rear end | (mm) | 2810 |
Grouser thickness | (mm) | 26 |
Counterweight height | (mm) | 2120 |
Ground contact length(transport) | (mm) | 5165 |
Arm length | (mm) | 3050 |
Boom length | (mm) | 5850 |
