Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Excavator | Operation Weight: | 13000KGS |
|---|---|---|---|
| Engine: | Cummins | Rated Engine Power: | 82 KW |
| Max. Bucket Digging Force: | 78.4 KN | Max. Digging Reach: | 8180 Mm |
| Max. Digging Depth: | 5501 Mm | Max. Digging Height: | 8630 Mm |
| High Light: | construction equipment excavator,hydraulic attachments excavators |
||

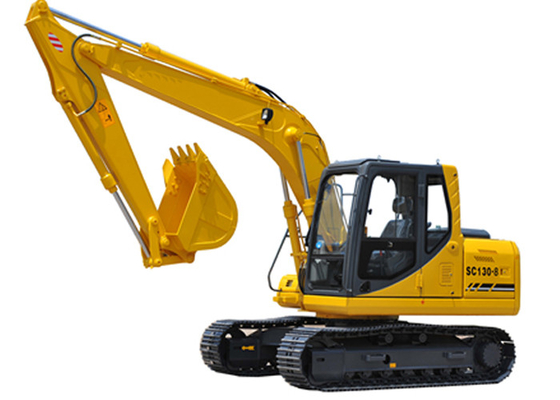

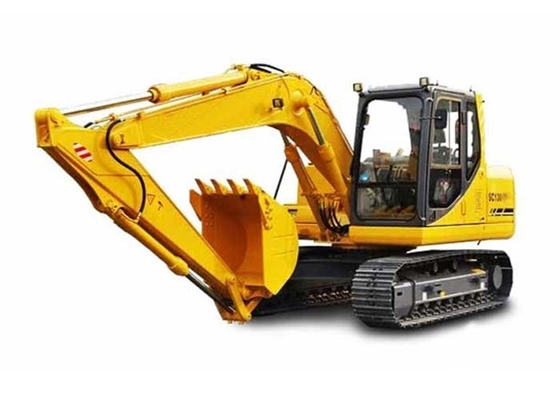

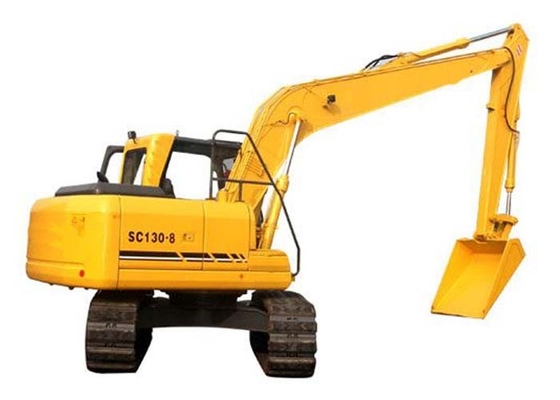

Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine
Hydraulic Excavator SC130.8 With Closed Cab , 82KW Cummins Diesel Engine , 13000 KG Operation Weight
| Engine | |
| Model | Cummins 4BTA3.9 |
| Type | Water cooled, 4-cycle, direct injection and turbocharged |
| Number of cylinder bore × stroke (mm) | 4-102×120 |
| Piston displacement (L) | 3.9 |
| Rating power (Kw/rpm) | 82/2200 |
| Alternate (A) | 35 |
| Battery (v/Ah) | 12/120×2 |
| Undercarriage | |
| Number of carrier rollers | 2 each side |
| Number of track rollers | 7 each side |
| Number of shoes | 42 each side |
| Hydraulic System | |
| Hydraulic pump | |
| Type | Variable displacement piston type |
| Max. flow (L/min ) | 128×2 |
| Setting pressure (Mpa) (Kg/cm2) | 34.3 (350) |
| Valve | |
| Type | KVMM-160 |
| Control | Full hydraulic Joystick |
| Travel motor | Brake valve |
| Swing motor | Safe valve |
| Hydraulic cylinders Number of cylinder- bore × rod diameter | |
| Boom | Ф105×Ф70 |
| Arm | Ф115×Ф80 |
| Bucket | Ф95×Ф65 |
| Operating Range | |
| Operating weight | 13,000 KGS |
| O Max. digging height | 8630 mm |
| P Max. dumping height | 6180 mm |
| Q Max. digging depth | 5501mm |
| R Max, vertical digging depth | 4940 mm |
| T Max. digging reach | 8180mm |
| W Tail swing radius | |
| Max. digging force | 78.4KN |
| Swing speed | 11.6 rpm |
| Travel speed | |
| Ground pressure | 38 |
| Dimensions | |
| A. overall length | 7576 mm |
| A1. Length on ground( transport) mm | 4402 mm |
| B. Width | 2489 |
| C. Height ( to top of cab) | 2780 mm |
| D. Height ( to top of cabin) | 2813mm |
| E. Ground clearance counter weight | 870 mm |
| F. Min Ground clearance | 433 mm |
| G. Tail swing radius | 2015 mm |
| H. Length of track on ground | 2750mm |
| J. Track length | 3486 mm |
| K. Track gauge | 1960 mm |
| L . Width of track | 2460mm |
| M. Width of track shoe | 500mm |
| V. Min swing radius | 2495 mm |
| X. Distance between swing center | 2015 mm |
