Electric 100m3 / H Portable Concrete Mixers With 37 Kw Gear Motor

China Electric 100m3 / H Portable Concrete Mixers With 37 Kw Gear Motor supplier

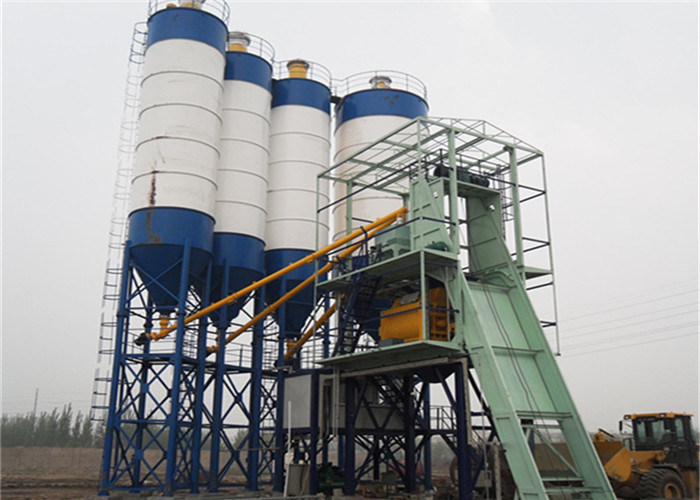

Large Image :  Electric 100m3 / H Portable Concrete Mixers With 37 Kw Gear Motor

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE/SGS/ISO9001
Model Number: HZS100

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30 working days after received your payment
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000pcs per month
Detailed Product Description
Production: 100 M3 / H Conveyor Capacity: 200 Tons
Gear Motor: 37 KW Hopper Quantity: 4
Power Supply: 380V / 50HZ Trailed Speed: 15 KM / H
Wheel Distance: 2800 Mm Weight: 20000kg
Discharge Height: 2.8 M Turning Radius: 11 Mm

Electric 100m3 / H Portable Concrete Mixers With 37 Kw Gear Motor



100 M3 / H Mobile Concrete Mixing Plant HZS100 For Concrete Mixing Works

100 M3 / H Mobile Concrete Mixing Plant HZS100 For Concrete Mixing Works

Specifications:


Item Configuration Specification, Model Producing area Qty Unit
1.Proportioning system
PL3200
Aggregate bin each bin 16m3 China Brand 4 PCS
Aggregate metering bin   China Brand 4 PCS
Weighing sensor   U.S.A RANSCELL 4 SET
Aggregate output belt conveyor 800mm width×31500mm Length China Brand 1 PCS
Cylinder SI-100-300 Taiwan AIRTAC 12 PCS
Vibrator MVE200/3 Italy WAM 4 PCS
Vibrator MVE100/3 Italy WAM 2 PCS
Frame   China Brand 1 PCS
2.Aggregate hoisting system Hoisting hopper   China Brand 1 PCS
Gear motor 37KW China Brand 1 PCS
Windlass mechanism   China Brand 1 SET
Rail rack   China Brand 1 SET
3.Mixing main engine JS2000Mixing tank body   China Brand 1 PCS
Reducer 429/311R2FZ Italy Rossi or Bonfiglioli 2 PCS
Motor 37KW China Brand 2 PCS
Discharge system   China Brand 1 SET
Lubricating system   China Brand 1 SET
Shaft end main sealing parts   China Brand 1 SET
4.Mixing main building Main building support leg   China Brand 1 SET
Finished receiving hopper   China Brand 1 PCS
Mixing floor   China Brand 1 PCS
Metering floor   China Brand 1 PCS
Stair walkway   China Brand 1 SET
High pressure cleaning system SL40A China Brand 1 SET
5.Water weighing system Water weighing box 600kg China Brand 1 PCS
Weighing sensor   U.S.A RANSCELL 3 PCS
Butterfly valve DN100 Italy SICOMA 1 PCS
Water pump   China Brand 2 PCS
Pipeline   China Brand 1 SET
6.Cement metering
system
Weighing bin 1200kg China Brand 1 PCS
Weighing sensor   U.S.A RANSCELL 3 PCS
Butterfly valve SD300 Italy SICOMA 1 PCS
Vibrator MVE60/3 Italy WAM 1 PCS
7.Additive weighing system Additive weighing box 60kg China Brand 1 PCS
Weighing sensor   U.S.A RANSCELL 1 PCS
Butterfly valve GTB671X-10-50 China Brand 1 PCS
Additive pump   China Brand 2 PCS
Pipeline   China Brand 2 SET
8.Pneumatic system Air compressor   Taiwan Fusheng 1 PCS
Solenoid valve   AIRTAC 1 SET
Pipeline system   China Brand 1 SET
Air storage CQG-0.1 China Brand 2 PCS
9.Electric control system Strong electric cabinet   China Brand 1 PCS
Weak electric cabinet   China Brand 1 PCS
Control console   China Brand 1 PCS
Control room 8m2 China Brand 1 PCS
Industrial computer IPC810 EVOC 1 PCS
LCD 17" Lenovo 1 PCS
Contactor   Schneider/ABB 1 SET
Circuit breaker   Schneider/ABB 1 SET
Mini relay   APT/OMRON 1 SET
PLC   OMRON 1 SET
UPS TG500 SANTEK 1 PCS
Printer LQ635K Epson 1 PCS
Air condition 1.5P Midea 1 PCS
Electric control assistant component   China Brand 1 SET
Connecting cable and accessory   China Brand 1 SET
10.Heating System Heating Outer Packing   China Brand 1 SET
Heating Pipes   China Brand 1 SET
11.Powder supply system Cement screw φ273 China Brand 1 SET
Cement Silo


Brief introduction of the whole machine

Mobile Concrete Mixing Station which adopts advanced technologies and scientific researching results from home and abroad and combines our company's years' mixing station producing experience, which is a new type mobile concrete mixing station designed by our company independently. It is now one of the best mixers in China, which boasts compact and reasonable designing. Most functions of the mixing station are finished in the pulling chassis, combining aggregate, electronic weighting, mixing and lifting together. It can be stopped to run or be pulled away easily, which is convenient to move and easy to install. It is can be applied to various construction sites like road surface, bridges, dams and airports, and also like architectural workings, concrete product plant and commercial concrete production.
This station is equipped with JD500 single horizontal shaft mandatory screw flow mixer, boasting quick mixing and excellent effect. It can also be applied to the mixing of dry, half-dry, plastic concrete and also various kinds of proportioning concrete.

Electric 100m3 / H Portable Concrete Mixers With 37 Kw Gear Motor
