Hydrostatic Type Motorized Wheelbarrows 150bar Max Pressure 2x Orbital Hydraulic Motor

China Hydrostatic Type Motorized Wheelbarrows 150bar Max Pressure 2x Orbital Hydraulic Motor supplier

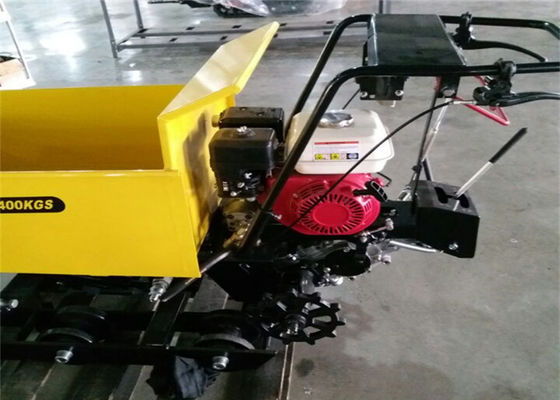

Large Image :  Hydrostatic Type Motorized Wheelbarrows 150bar Max Pressure 2x Orbital Hydraulic Motor

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE/SGS/ISO
Model Number: KD400

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: US$4900-US$5500 per unit
Packaging Details: Nude packing in container.
Delivery Time: 25-30 working days after received your advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000pcs per month
Detailed Product Description
Payload: 400kgs Max Pressure: 150bar
Hydraulic Motors: 2x Orbital Engine: B&S ICseries 130G 6.5HP/HONDA GX160 5.5HP/ 5.5HP, 4stroke, 163cm3 Gasoline
Lifting Height: 100cm Track Roller: 3
Max Travel Speed: 5.0 Km/h Dimensions: 2200*900*1250mm
Weight: 248kgs Hydraulic Pump: Piston Pump
Color: Yellow HS CODE: 8428909090
Limited Grade Ability: 20° Skip Tipping System: Hydraulic
Transmission System: Hydraulic System Brake Parking: Mechanical
Main Valve: 2-3way Cooler System Oil: Air

Hydrostatic Type Motorized Wheelbarrows 150bar Max Pressure 2x Orbital Hydraulic Motor





0.4tons 4WD Gasoline Engine Mini Dumper With Crawler Drive And Hydraulic Transmission For Site Works

400kgs 4WDHydrostatic Type Motorized Wheelbarrows with 150bar Max Pressure 2x Orbital Hydraulic Motor


Specifications:



Specification
KD400 Mechanical Transmission case
Engine B&S ICseries 130G 6.5HP/HONDA GX160 5.5HP/ 5.5HP, 4stroke, 163cm3 gasoline
Transmission Peerless transaxle 6 forward / 2 reverse speed
Speed 0.5-4.9km/h
Capacity 400KG weight
Brake Disk
Cabels Protected
Driven type Crawler driven
Limited grade ability 20°
Weight 248KG
Dimension 171*74*111(retort stand)
Drum Material yellow powder coating
Unloading Manual,self-unloading
Turing Auto turning



Applications:

Dumpers are widely used in many different of site works, such as Building construction industry,
landscaping,gardening,farming,stables renting and so on.


Description:


1. The max loading weight is 400kgs .

2. With B&S 13HP or HONDA GX390 13HP or Diesel Engine

3. Hydraulic Transmission case

4 . Efficiency of transportation by transportation, loading, unloading and dumping ability.

5. This model is hydraulic design and 1M Lifting height.




Competitive Advantage:


1 . Easy and comfortable operation due to the intuitive controls.

2 . Self loading shovel not only can be used as a small excavator but also keep the balance of the               machine during unloading.

3 . Easy climbing and stable crossing the obstacles.

4 . Spot turning, mini slipping.



Hydrostatic Type Motorized Wheelbarrows 150bar Max Pressure 2x Orbital Hydraulic Motor
