6M Max Lifting Height Telescopic Boom Forklift for Goods Transportation / Engineering Building

China 6M Max Lifting Height Telescopic Boom Forklift for Goods Transportation / Engineering Building supplier

Large Image :  6M Max Lifting Height Telescopic Boom Forklift for Goods Transportation / Engineering Building

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: ISO / CE
Model Number: SCZ25-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing in container
Delivery Time: 20 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 1500 units per month
Detailed Product Description
Power Type: Diesel Max Lifting Capacity: 2500 Kg
Load Center: 1000kg Max Forward Reach: 3000 Mm
Reach @ Max Height: 1000mm Max Lifting Height: 6000mm
Lift Speed @ Payload: 0.35 M/s Min Turning Radius: 2400 Mm
Max Travel Speed: 28 Km/h Min Turning Diameter: 12500mm
Operating Weight: 7100kg

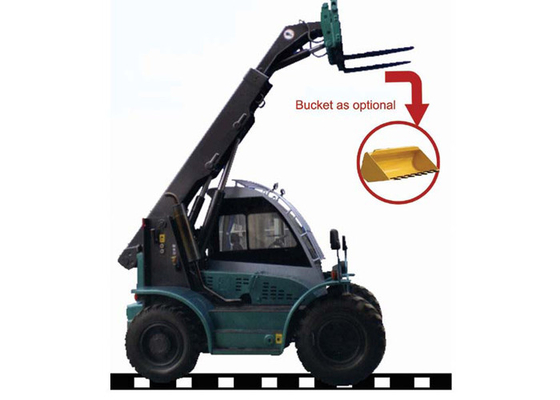

6M Max Lifting Height Telescopic Boom Forklift for Goods Transportation / Engineering Building



2.5Ton Hydraulic Telescopic Boom Forklift SCZ25-4 Telehandler With 6M Max. Lifting Height

Description:

SCZ25-4 telescopic boom loader equipped with rigid suspension chassis,hydraulic-mechanical transmission,hydraulic steering and brake system of hydraulic vacuum booster pump,rear wheel steering,air-conditioner ,astern radar,DVD,automobile type meter panel.

The working device is two-segment,quadrilateral telescopic boom,and fork lateral displacement unit adopted in normal type.



This boom loader is mainly used to handle the unloading and loading of materials which piled on trays to containers as well as pilling,stocking and short distance transporting.It is a kind of multi-purpose using,efficient and convenient machine for loading and unloading, hosting,transporting in mineral yards,planet,construction spots,ports,public works, furthermore optional accessories could be choose by user include bucket, hook, boom.The loading heigh and the cross country performance of our products are much excellent than regular forklift trucks.



Main Features:

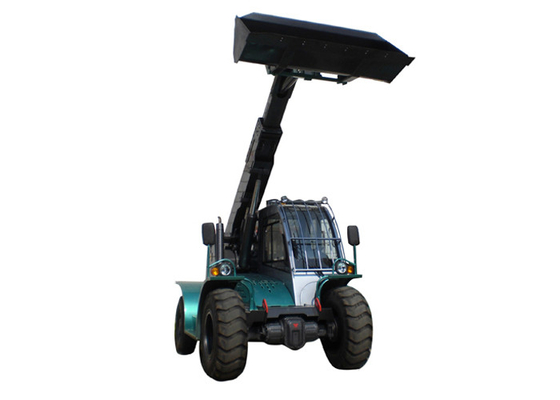

The Telescopic wheel loader (SZ25-4) for almost any task that involves lifting, moving or placing objects or materials. It works with Four-Wheel Drive, hydro mechanical transmission, hydraulic Power Steering, Hydraulic brake, and Rear-Wheel Steering. The handling equipment is Telescopic boom, standard model installs moving fork. Besides smooth joystick controls and a wide range of attachments, we also can offer the right machine meet your specific requirements. Shovel loader, derrick boom and hook for selecting to install.



Specifications:

Item

Unit

Parameter

Max lifting capacity

kg

2500

Capacity @ Max Reach

kg

1000

Max forward reach

mm

3000

Reach @ Max height

mm

1000

Max lifting height

mm

6000

Lift speed @ payload

m/s

0.35

Flex speed

m/s

13

Max Travel Speed

km/h

28

Min Height of Forks

mm

310

Min turning diameter

mm

12500

Grade-ability

%

20

Operating Weight

kg

7100

Overall Size( Length×Width×Height)

mm

5560×2300×2580

Engine

(CUMMINS)

Model



4BT3.9-C80 or LR4108G76

Rated power

kw

60 / 74kw

Rated speed

r/min

2000/ 2400

Peak Torque



330N.m/1500r/min

Displacement

L

3.9

Compression Ratio



17.5:1

Tire

Front



16/70-20

Rear



8.25-20-14
