| Engine Power: | 74 KW / 99HP | Rated Load: | 2500 Kg |
|---|---|---|---|
| Operating Weight: | 7640 Kg | Rated Load Bucket Capacity: | 1.0 M3 |
| Max. Dump Height: | 3737 Mm | Max. Digging Depth: | 4388 Mm |
| Max. Digging Force: | >50±10%kN | ||
| High Light: | compact tractor loader backhoe,compact backhoe loader |
||

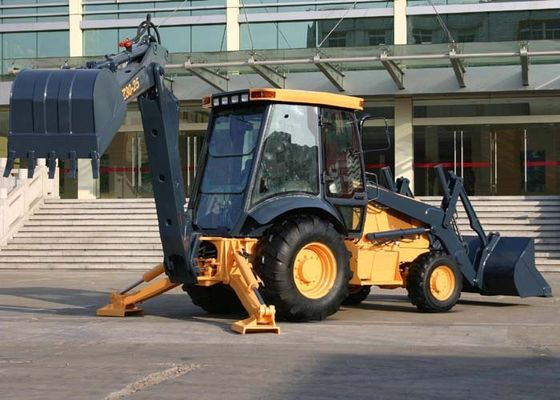

Cummins Diesel Engine Construction Backhoe , 1.0m3 Loading Capacity Tractor Front Loader
74KW Power 1.0m3 Loading Capacity Backhoe Loader WZ30-25 , Cummins Diesel Engine , Working in Construction Project
Features of WZ30-25 Backhoe loader:
1) Adopted CUMMINS engine that features strong power.low oil consumption,big power reservation.
2) Perfect configurations like F4/R4 Synchromesh mechanical shift transmission and free-maintenance axle ensure superior productivity and durability.
3) Adopted imported hydraulic components like multi-way valve make operation more stable and quick action and more precise.
4) Spacious and comfortable operator station allows 360° visibility.Adjustable seat,steering and backhoe controls allow the machine to better fit any operator.
5)Oil immersed disc brakes are actuated by individual braking on each side rear wheel with two separate pedals .Integral brake on rear wheel is actuated by operating the two pedals at the same time.
6) Parking brake :flexible shaft control mechanical applied axle shaft braking.
7) Adopted imported well-known brand axles,heavy duty axles with planetary reduction gears in the wheel hubs .Front axles total oscillation angle 22°.Differential lock in the rear axle controlled by electro-hydraulic system with a switch on loader lever.
| Main Specification | Unit | |
| Model of Engine | Cummins B4.5 | |
| Rated Power | kw | 74 |
| Rated Speed | rpm | 2200 |
| Forward Travelling Speed | km/h | 5.8/10.5/20.1/40.2 |
| Reverse Travelling Speed | km/h | 7/12.6/24.3/48.6 |
| Min. Ground Clearance (2WD/4WD) | mm | 355/275 |
| Max. Grade Ability | >30% | |
| Max. Driving Force (2WD/4WD) | kn | 43.5/70 |
| Front Tyre Size (2WD/4WD) | 11L16F3-12PR/12.5-16NHS-10PR | |
| Rear Tyre Size | 19.5L-24R4-14PR | |
| Min. Turning Raduis (2WD/4WD) | mm | 3795/4300 |
| Loading Pressure | Mpa | 21.5 |
| Digging Pressure | Mpa | 21.5 |
| Steering Pressure | Mpa | 14 |
| Rated Bucket Capacity | m3 | 1 |
| Rated Dumping Clearance | mm | 2611 |
| Rated Dumping Reach | mm | 726 |
| Digging Depth | mm | 191 |
| Max. Digging Capacity | kn | >40 |
| Rated Loading Lifting Capacity | kn | >25 |
| Lifting | s | 5.1 |
| Lowering | s | 4.9 |
| Tilting | s | 0.9 |
| Rated Hoe Bucket Capacity | m3 | 0.3 |
| Max. Digging Depth | mm | 4388 |
| Max. Digging Force | kn | >50±10% |
| Max. Digging Radius | mm | 5481 |
| Max. Dumping Height | mm | 3737 |
| Fuel Tank | L | 151 |
| Crank Case | L | 11 |
| Transmission | L | 18.5 |
| Rear Axle | L | 17 |
| Front Axle | L | 8 |
| Hydraulic System | L | 110 |
