Product Details:
Payment & Shipping Terms:
|
| Basic Working Width: | 2.5m | Max. Working Width: | 6.0m |
|---|---|---|---|
| Max. Paving Thickness: | 150mm | Paving Speed: | 0-14Km/h |
| Hopper Capacity: | 13tons | Gradient Ability: | 20% |
| Rated Output: | 92KW | Dimensions: | 6350×2580×3892mm |
| Weight: | 13tons | Generator Power: | 20KW |
| High Light: | tarmac laying machine,asphalt laydown machine |
||
Concrete Asphalt Paver Machine With 150mm Paving Thickness Electric Auto Leveling System
6000mmm XCMG Multi-Function Asphalt Concrete Paver RP602L With 150mm Paving Thickness And 92KW Diesel Engine

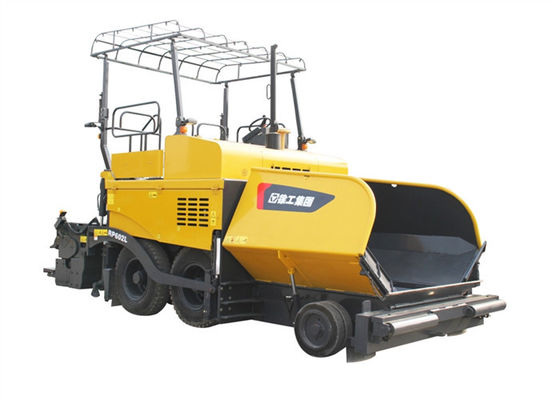

6.0m XCMG Multi-Function Asphalt Concrete Paver RP602L
Specifications:
|
Item |
Unit |
Parameter |
Item |
Unit |
Parameter |
|---|---|---|---|---|---|
|
Basic Working width |
m |
2.5 |
Slop leveling Tolerance |
% |
0.03 |
|
Max. working width |
m |
6.0 |
|
||
|
Max. paving thickness |
mm |
150 |
Engine type |
SC5D125G2B1/YC4A12 |
|
|
Paving speed |
Km/h |
0-16 |
Rated output |
KW |
.92 |
|
Traveling speed |
Km/h |
0-16 |
Rated Rev. |
Rpm |
2200 |
|
Theoretical Productivity |
t/h |
300 |
Generator Power |
kw |
20 |
|
Hopper capacity |
T |
13 |
|
||
|
Gradient Ability |
% |
20 |
Weight |
T |
13 |
|
Smoothness |
Mm/3m |
3 |
Overall dimension |
mm |
6350×2580×3892 |
Applications:
RP602L Multi-Function Asphalt Concrete Paver is a construction machine mainly used for the paving
projection on the road base and surface for highway of various kinds of material.Therefore, RP602L
becomes the ideal equipment for the paving job on stabilized soil for road base and asphalt concrete for
road surface.
Description:
1 . This type of machine has the most advanced technology, such as Micro-computer-controlling system,
ultra sonic sensor, electric auto-leveling system, tamper and which makes the machine features with
the same quality and reliability as that of the imported machine.
2 . Adopted with an advanced, mature and reliable SC5D125G2B1/YC4A12 water-cooling Diesel Engine,
with a strong power
3 . With electric auto-leveling technique
4 . Driving system with control for right and left hand separately; Mirco-computer-control, auto-control
technology for paving with constant speed
5 . Material level control with ultra sonic sensor technology
6 . Extendable screed with specific technology for tamper bars and electric-heating
Competitive Advantage:
1 . Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high
temperature
2 . Distributing auger, made of high wearing-resistant alloy material, distributing bottom plate and screed
bottom plate adopt with imported wearing-resistant material
3 . Control panel shows directly and clearly all working functions, paving, traveling speed, and could be
mounted on either on right or left
4 . The complete machine features with high automation, easy and convenient operation, excellent
construction performance with high efficiency.
