4 Wheel Full Hydraulic Driving Small Asphalt Laying Machine for Road Pavements

China 4 Wheel Full Hydraulic Driving Small Asphalt Laying Machine for Road Pavements supplier

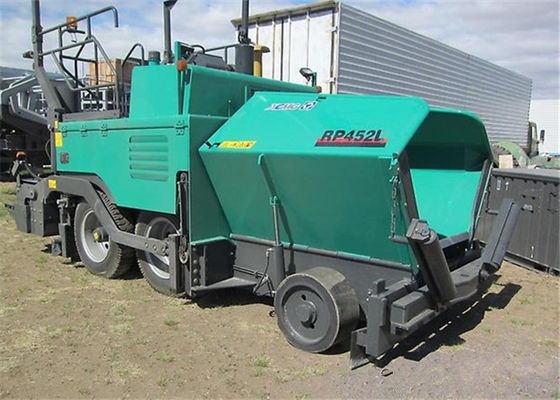

Large Image :  4 Wheel Full Hydraulic Driving Small Asphalt Laying Machine for Road Pavements

Product Details:

Place of Origin: China
Brand Name: XCMG
Certification: CE/SGS
Model Number: RP452L

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs per month
Detailed Product Description
Basic Working Width: 2m Max. Working Width: 4.5m
Max. Paving Thickness: 150mm Paving Speed: 0-13Km/h
Hopper Capacity: 12tons Gradient Ability: 20%
Rated Output: 70KW Dimensions: 5670x2070x3590mm
Weight: 10.5tons Tank Capacity: 130L



4 Wheel Full Hydraulic Driving Small Asphalt Laying Machine for Road Pavements

4500mm XCMG Asphalt Concrete Paver RP452L With 150mm Paving Thickness and 70KW Diesel engine

4.5m XCMG Multi-Function Asphalt Concrete Paver RP452L



Specifications:



Item

Unit

Parameter

Item

Unit

Parameter

Basic Working width

m

2.0

Slop leveling Tolerance

%

±0.02

Max. working width

m

4.5

Crown adjust

%

0-3

Max. paving thickness

mm

150

Engine type



YC4D95Z-T21

Paving speed

Km/h

0-13

Rated output

KW

70

Traveling speed

Km/h

0-13

Rated Rev.

Rpm

2200

Theoretical Productivity

t/h

240

Tank capacity

L

130

Hopper capacity

T

12

Weight

T

10.5

Gradient Ability

%

20

Overall dimension

mm

5670x2070x3590

Smoothness

Mm/3m

3









Applications:



RP452L Paver is the most perfect choice in various road constructions, especially suitable for the urban

zone, the city planning roadway and the netted county pavements.



Description:



1 . As the smallest full-hydraulic-driving paver made in China.

2 . RP452 Asphalt Paver utilizes the techniques as follows: four-wheel driving, hydraulic - electric

     proportional infinite displacement, auto-leveling system, automatic-controlled conveyors & augers,

     and gas-heated hydro-extendable screed with width range from 2.0 meter to 4.5meter.

3 . As a miniaturized machine with 2.0 meter of the super narrow complete width and paving width, RP452L      paver is satisfied to the requirement of urban zones and laneways.

4 . Configure with YC4D95Z-T21 water cooling diesel engine powered 70KW, the paver can be used

     in the west high altitude area due to its wide-range adaptability in altiplano and its adequate

     power reserve.

5 . The four-wheel driving and full hydraulic infinite displacements ensure the machine operated                       automatically, simply and promptly.

6 . The each side of conveyors and augers can be separately controlled automatically via the mixture level      sensors both on the right and left.

7 . The main switch of electric system realizes that only one switch-point could operate all the functions            of the whole machine including the auto leveling system. Therefore the operation is convenient

     and the smoothness can be improved efficiently.



Competitive Advantage:



1 . The well-known imported hydro-electric units keep the paver’s stability and convenient maintenance

2 . The hydraulic extensible screed has the advantage in the construction of the laneway with variational

      width in the city, its vibration frequency can be adjusted infinitely and its paving width ranges from               2 meter to 4.5 meter conveniently.

3 . The automatic leveling system can accurately control the tolerance of longitudinal smoothness to                3 meter and the sensitivity of transverse slope to 2/10000 at the top of the criteria of highways.

4 . The Paver can hold up hopper sides wholly or one side separately to improve the travel capability of

      the road in construction site.
