| Capacity: | 120TPH | Mixer Capacity: | 1500kgs |
|---|---|---|---|
| Hot Agg Bin: | 30 M3 | Finished Storage Bin: | 50tons |
| Heavy Oil: | 9850 Kcal/kg | Diesel: | 10,500 Kcal/kg |
| Electric Power: | 380V/50Hz | Bitumen: | ±0.2% |
| Powder: | ±0.2% | Aggregate: | ±0.5% |
| High Light: | asphalt batching plant,asphalt concrete plant |
||

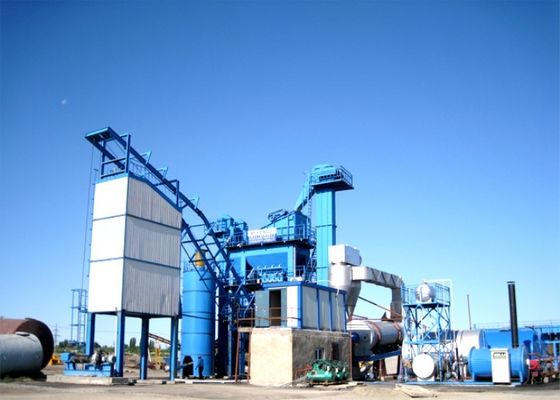

Full Automatic Stationary asphalt batching plant GLB -1500 With Cold Feed Systerm
1500kgs Mixer Capacity Mobile Asphalt Batching Plant GLB-1500 With Dryer Drum
Standard condition:
Aggregate size:100% of total can pass the 40mm screen mesh
40% of total can pass the 3mm screen mesh
Standard atmospheric pressure: 760 mmHg
The aggregate temperature discharged from dryer drum: 160ºC
The environment temperature: 20
Moistures of the aggregate: ≤5%
SG of the aggregate: 1650 kg/m3
Content of the filler: 5%
Special heat of the aggregate:0.21 Kcal/kg℃
Content of the bitumen: 5%
Calorific value of the fuel :
heavy oil 9,850 Kcal/kg
Electric power paremeter:.
disel 10,500 Kcal/kg
single phase as 220V,three phase as 380V,frequency as 50Hz
Power of parts and total power:
| Parts | Power (kw) |
| Aggregate system | 15.5 |
| Dring system | 90.5 |
| Filter | 107.03 |
| Control system | 3 |
| Pneumatic system | 22 |
| Main tower | 71.1 |
| Filler supply system | 20.4 |
| Bitumen supply system | 35 |
| Finished silo | 57 |
| Total power | 422.13 |
Environmental condition:
Content of the dust discharged from the bag filter: ≤20mg/Nm3(standard condition)
Blackness of discharged air: to Ringelmann grade Ⅰ
Mixer tower`s seal and Vacuum dust: meet international standards
Control room noise: ≤30dB
Environmental Noise : ≤80dB
Model and technical data:
Plant type: LB-1500
Fuel consumption: 6.5kg / metric tonne (product)
Capacity under standard condition: 120t/h
Emission: ≤20mg/Nm3, Ringgeman blackness level 1
Weigh accuracy: 0.25% for asphalt, 0.5% for filler, 0.5% for aggregates
Structure: modular
Total power: 356.6KW
Ambient temperature: 5ºC~+50ºC
Volume of finished asphalt bin: 50 tons
Standard: GB/T17808-1999
Scope and quotation:
Cold Feed
Capacity: 10m3/each
Cold bin
Quantity: 4 sets
Height of each bin: 2,860mm
Width of each bin: 3,500mm
Belt feeder
Capacity: 60t/h each
Variable-speed geared motor
Quantity: 4 sets
Width of belt: 600mm
Horizontal collecting belt
Length of belt: 19,000mm
