330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity

China 330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity supplier
330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity supplier 330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity supplier 330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity supplier

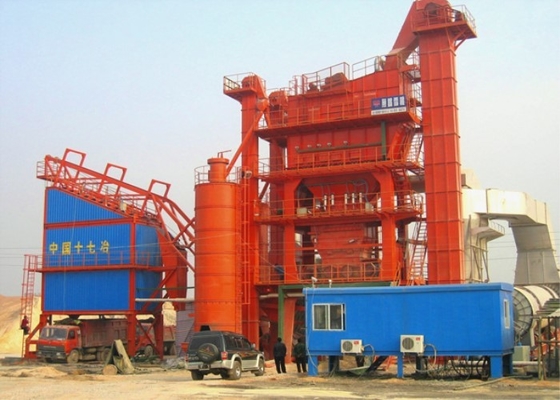

Large Image :  330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: CE/SGS/ISO9001
Model Number: AMP1500-C

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 500set per month
Contact Now
Detailed Product Description
Capacity: 120TPH Mixer Capacity: 1500kgs
Hot Agg Bin: 40 M3 Finished Storage Bin: 60tons
Fuel Consumption: 6.5kg/t Working Cycle Period: 45 Second
Power: 330KW Bitumen: ±0.2%
Powder: ±0.2% Aggregate: ±0.5%
High Light:

asphalt batching plant

,

asphalt concrete plant


330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity

1500kgs Mixer Capacity Mobile Asphalt Batching Plant AMP1500 - C With Dryer Drum

Major specification

Illustration: The plant is designed for a production of 90~120 t/h of road mix asphalt with a finished product temperature of 160ºC, under the following standard conditions:

  • Maximum production: 120 t/h
  • Maximum mixing capacity: 1,500 kg / batch
  • Rate output included aggregate, bitumen and filler
  • Bitumen weighing accuracy: ≤±1% (Continuous real-time detect)
  • Aggregate bitumen ratio accuracy: ≤±0.3%
  • Filler weighing accuracy: ≤±2% (Continuous real-time detect)
  • Aggregate weighing accuracy: ≤±2% (Continuous real-time detect)
  • Fuel consumption (diesel): ≤6.5 kg/t
  • Aggregate temperature accuracy: ≤±3ºC
  • Noise level in control room: ≤70 db(A)
  • Working environment noise level: ≤80 db(A)
  • Standard layout area approx. 35 m x 30 m (Flexible to be adjusted to fit actual job site limitation)
  • Dust emission (Filter bag system): ≤90 mg/Nm3
  • Operation voltage: 330kW
  • Working voltage: 380V/50 HZ
  • Operation: Automatic / Manual / Fully computer controlled
  • Working altitude level: <2,500 m
  • Desired environment temperature: 20 ~ 50ºC
  • Aggregate density; 1,700 kg/m3
  • Aggregate moisture content; ≤5%
  • Fuel Calorific value ≥9500kcal/kg
  • Ph value: ≥7
  • Material not porous and hygroscopic with normal shape


Any deviation of above-mentioned working condition may cause fluctuated production of plant.

1.0 Cold Feed System


  • Imported Frequency Converter Controller for Belt Feeders, places typical magnetic speed controller.
  • No flow switches for every hopper, signal to control room for run out of aggregate or blockage.
  • Speed adjustment of Frequency Converter in control room, easy operates, visible on screen, reliable operation, stable accuracy adjustment, and low malfunction performance.
  • Reduce foul material benefits save energy, increase heat efficiency, protect Dryer Drum, increase reliable operation of Hot Elevator and Screen Deck, and finally increase working life of equipment.
  • Vibrators for sands hoppers, avoid material blockage; oversize meshes for hoppers, avoid large aggregate to system, provides reliable operation of system.



No.Parts namesQTYRemark
1Cold Feed Hoppers(Two of them are equipped with a vibrator.)4Bearing(Timken) electric motor(SIEMENS or DM)
2Belt Feeders4Frequency converter controller (TOSHIBA)
3Collecting Conveyer1Bearing(Timken) electric motor(SIEMENS or DM)
4Inclined Conveyer1Bearing(Timken) electric motor(SIEMENS or DM)
5double-layer heated dryer drum (friction driven)1Bearing(Timken) electric motor(SIEMENS or DM)
6Burner(light oil)1special-used burner(ATECO)
7Dust Collector (Primary collector),Screw Conveyer, Stack1
8Filter Bag Dust Collector (Secondary Collector)1Dupont filtration bag ,USA
9Filler bin(17m3), Screw Conveyer1Bearing(Timken) electric motor(SIEMENS or DM)
10Filler elevator1Bearing(Timken) electric motor(SIEMENS or DM)
11Aggregate elevator1Bearing(Timken) electric motor(SIEMENS or DM)
12Vibrate Screen Deck1Bearing(Timken) electric motor(ZD)
13Hot material bin1
14Level indicator11WU WEI
15mixer1Bearing(Timken) electric motor(SIEMENS or DM)
16Aggregate weighing1KELI weighting sensor
17Filler weighing1KELI weighting sensor
18Bitumen weighing1KELI weighting sensor
19frame, flat ,ladder and railing1
20air compressor4FUSHENG
21cylinder ,air conveyer pipeline,electromagnetism valve1
22strong-electricity system and computer control system1

Siemens electric parts, Merlin Gerin,
computer HP or Yanhua

23PLC1SIEMENS
24thermoscope1
25weighing controller3TOLEDO
26camera2
2721"display of monitor system1
2819"display of control system1
29printer1
30air-conditioner1
31oil heater(capacity: 300,000Kcal/h)1the burner is made in Italy
32bitumen tank (volume: 30m3)2
332.5m3asphact unloading oil tank and asphalt pump1
34valve and pipe of the system1
35diesel tank (volume:30m3)1
36Mixed material storage silo (capacity: 60T)1
37Skip bucket, Track1

Frequency Converter Controller
(Schneider)

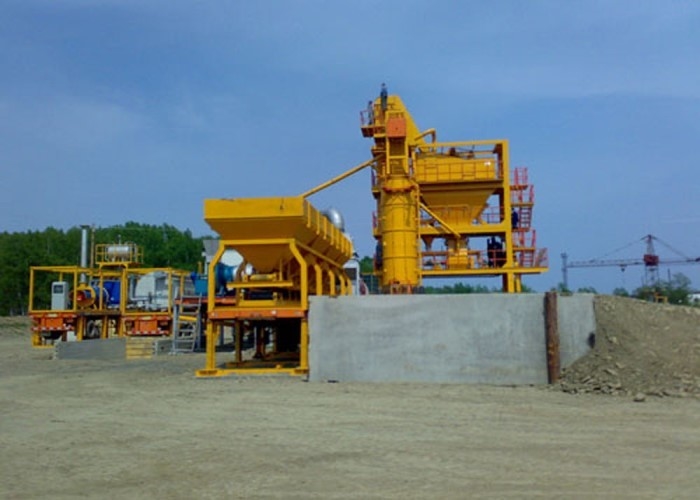

330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity

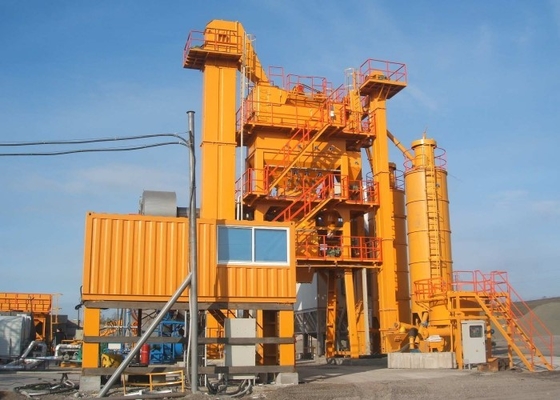

330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity
