| Working Height Maximum: | 36m | Platform Height Maximum: | 34m |
|---|---|---|---|
| Lateral Outreach: | 13.9m | Platform Size: | 1.2×0.8×1.1m |
| Overall Length: | 8.47m | Total Weight: | 5600kg |
| Loading Capacity: | 200kg | Platform Rotation: | 180° |
| Turntable Swing: | 360°continuous | Drive Speed -stowed: | 1.0km/h |
| High Light: | Trailer Mounted Boom Lift,Articulating Boom Lift |
||
Dual Power Self Propelled Telescopic Hydraulic Boom Lift 13.9M Outreach

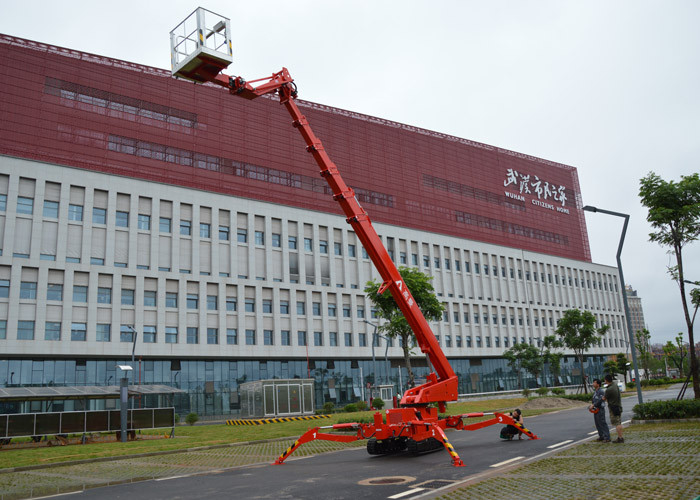

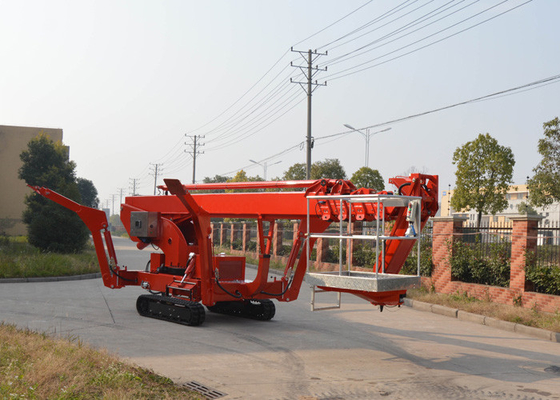

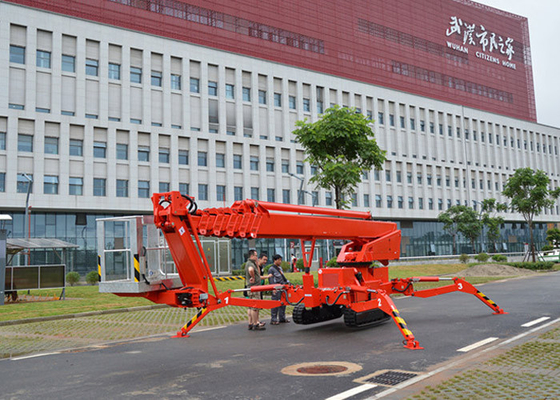

36M Self Propelled Telescopic Boom Lift KD-T36 Spider Cherry Picker With Dual Power And 13.9M Outreach
Specifications:
—Made of high strength steel, and the European production of hydraulic, control, parts;
—Pipeline all the built-in, to avoid the sun and rain or foreign objects tangled;
—Shape lightweight, low pressure rubber tracks on the ground, can travel, work on any ground;
—Outrigger separately controlled to bypass obstacles in a limited space work;
—Reliable torque control to ensure that the vehicle will not roll;
—Wired remote control walks, working bucket with 220V outlet;
—Small size, compact and flexible
|
Type |
KD-T36 |
|
working height (m) |
36.00 |
|
Platform height (m) |
34.00 |
|
Safe load (kg) |
200 |
|
Size of platform (m) |
1.2×0.8×1.1 |
|
Outreach (m) |
13.90 |
|
Rotation of jib |
180° |
|
Rotation of work cage |
180° |
|
Rotation range |
360° |
|
Overall length (m) |
8.47 |
|
Overall width (m) |
1.59 |
|
Overall height (m) |
2.20 |
|
Total weight (kg) |
5600 |
|
Standard jacked area |
30% |
|
Speed (km/h) |
0-1.0 |
|
Climbing |
30% |
|
Power |
18.5KW Diesel engine + 2.2KW electric motor |
