10m Max Platform Height Towable Boom Lift with Hydraulic Outriggers and Outrigger Interlocks

China 10m Max Platform Height Towable Boom Lift with Hydraulic Outriggers and Outrigger Interlocks supplier
10m Max Platform Height Towable Boom Lift with Hydraulic Outriggers and Outrigger Interlocks supplier 10m Max Platform Height Towable Boom Lift with Hydraulic Outriggers and Outrigger Interlocks supplier 10m Max Platform Height Towable Boom Lift with Hydraulic Outriggers and Outrigger Interlocks supplier 10m Max Platform Height Towable Boom Lift with Hydraulic Outriggers and Outrigger Interlocks supplier

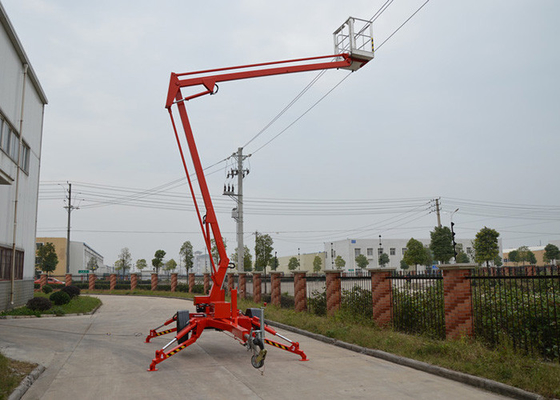

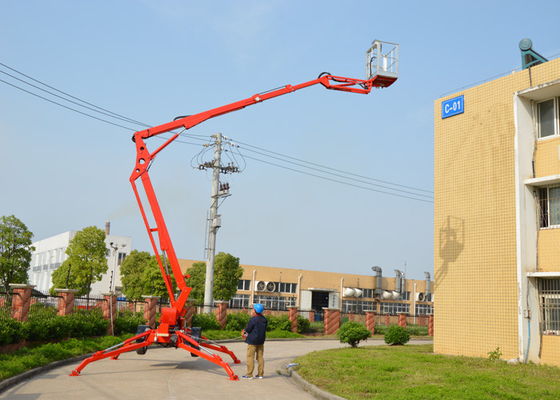

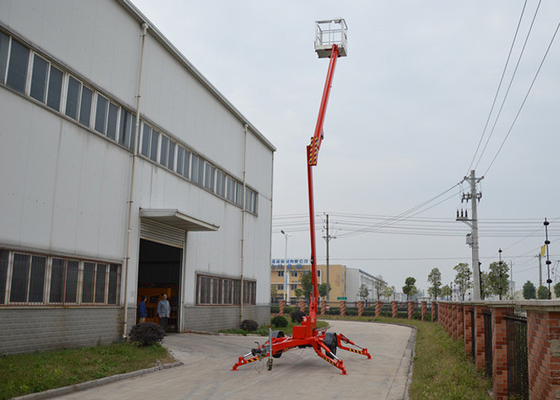

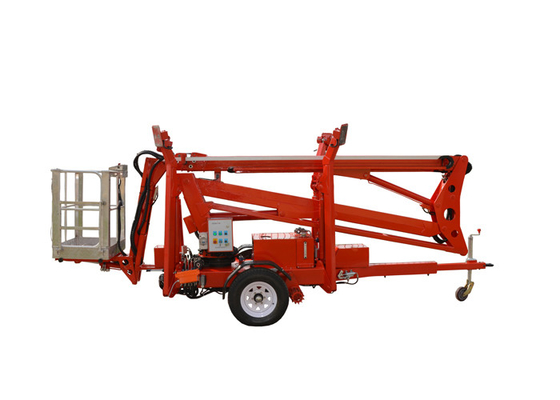

Large Image :  10m Max Platform Height Towable Boom Lift with Hydraulic Outriggers and Outrigger Interlocks

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: ISO/CE
Model Number: KD-P12

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received your deposit
Payment Terms: L/C at sight, T/T . Western Union, MoneyGram
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Working Height Maximum: 12m Platform Height Maximum: 10m
Lateral Outreach: 4.5m Platform Size: 0.9×0.8×1.1m
Wheelbase: 3.66m Ground Clearance-center: 43cm
Loading Capacity: 200kg Platform Rotation: 100°
Turntable Swing: 350°continuous Drive Speed -stowed: 35km/h
High Light:

Trailer Mounted Boom Lift

,

Articulating Boom Lift

12M Factory Direct Towable Mounted Articulating Boom Lift KD-P12 With 200KG Rated Capacity



10m Max Platform Height Towable Boom Lift with Hydraulic Outriggers and Outrigger Interlocks

12M Factory Direct Towable Mounted Articulating Boom Lift KD-P12 With 200KG Rated Capacity

Specifications:



►Industry leading working envelope

►Articulating boom

►Multiple job site application, indoors and outdoors

►high and low operation panel

►Hydraulic outriggers and outrigger interlocks

►Hydraulic surge brakes

►350°non-continuous turntable rotation

►Made of high strength steel, famous china brand

►All pipelines put inside the machine, to aviod tangled sun and rain or other objects

►Protective covers for oil-tank, emergency controls and etc.



Description

KD-P12

Max. working height

12m

Max. platform height

10m

Loading capacity

200kgs

Lateral Outreach

4.5m

Jib rotation

100°

Turntable rotation

350°

Size of platform

0.9×0.8×1.1m

Overall stowed length

5.85m

Overall stowed width

1.7m

Overall stowed height

2.26m

Total weight

1180kgs

Traveling speed

35km/h

standard power source

Electric 220V AC power

optional power sources

Diesel engine or Battery



10m Max Platform Height Towable Boom Lift with Hydraulic Outriggers and Outrigger Interlocks
