Product Details:
Payment & Shipping Terms:
|
| Capacity: | 15TPH | Fuel Consumpution: | 5.5 - 7.5kg / T |
|---|---|---|---|
| Feeder Hopper Capacity: | 750kgs | Asphalt Output: | 750kgs |
| Aggregate Size: | < = 50mm | Aggregate Bins: | 5M3x4 Each, Accumulative Scale |
| Product Temperature: | 120 ~ 165 ℃，adjustable | Total Consumption: | 48kW (Oil Burner) |
| Aggregate Hopper: | 5m3 | Finished Silo: | 10tons |
| High Light: | asphalt batching plant,asphalt concrete plant |
||
Drying Drum Horizontal Twin Shaft Asphalt Mixing Plant , 15TPH Concrete Batching Plant

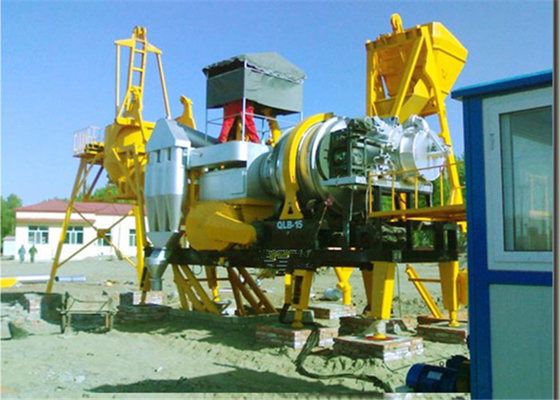

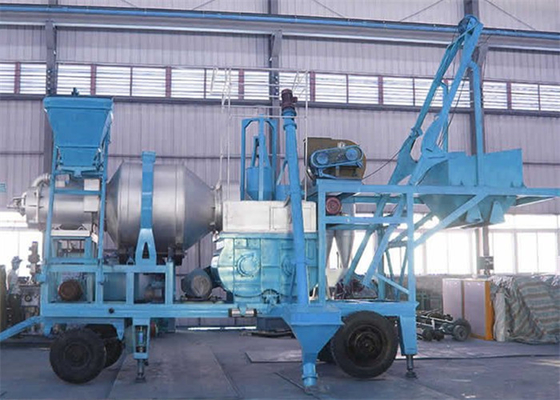

15 TPH Mobile Asphalt Batching Plant QLB-15 With Oil Burner / Coal Burner
Configuration List:
|
Item |
Description |
Unit |
|---|---|---|
|
Main parts
|
Chassis (Front,rear axle) |
1set |
|
|
Burner |
1unit |
|
|
Drying drum and drive system |
1unit |
|
|
Mixer drum and drive system |
1unit |
|
|
Cyclone dust filter |
1unit |
|
|
Blower |
1unit |
|
|
Vent |
1unit |
|
|
Bitumen Scale |
1set |
|
Control System
|
PLC |
1set |
|
|
Control panel |
1set |
|
|
Touch screen |
1unit |
Specifications:
|
Type |
QLB-15 |
|
|---|---|---|
|
Capacity |
15t/h |
|
|
Power |
oil |
54kw |
|
|
Coal |
75kw |
|
Aggregate batcher |
--- |
|
|
Storage bin |
5T |
|
|
Product Temperature |
120～180℃,Adjustable |
|
|
Fuel consumption |
Oil:5～7.5kg/t Coal:13～15kg/t |
|
|
Optional |
Coal miller, Wet filter, Control room, Bitumen heating tank |
|
Main Fetures:
1 . Integrated design of drying drum and horizontal twin shaft mixer, more even
mixing and better asphalt;
2 . Accurate weighing, and stable quality;Simple structure, easy operation,
drying while drum rotate in counter-clockwise direction (from burner),
discharging while drum rotates in clockwise direction (from burner),
and the wind are swirled in the center of the drum;
3 . PLC control,touch screen, auto/manual switchable
4 . Towing chassis for easy transport and installation; Burner is available for
coal and oil, at customer's option.
