Portable 0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG

China Portable 0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG supplier
Portable 0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG supplier Portable 0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG supplier Portable 0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG supplier Portable 0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG supplier

Large Image :  Portable 0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: ISO, CE
Model Number: XM101K

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing in container
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 1500 units per month
Contact Now
Detailed Product Description
Product Name: Cold Milling Machine Rated Power: 162kw
Max. Milling Depth: 300mm Max. Milling Width: 1020mm
Travel Speed: 0-7km/h Operating Speed: 0-30m/min
Drum Diameter With Tools: 930mm Operating Weight: 17000kg
High Light:

road milling machine

,

pavement milling machine

0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG





Portable XCMG Asphalt 100CM Cold Milling Machine XM101K 162KW Cold Concrete Milling Machine

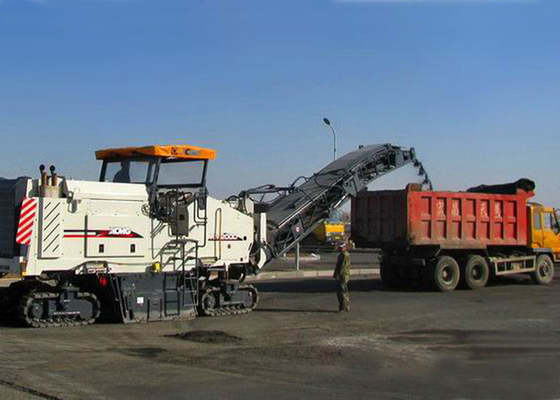

XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.

The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.



Performance and characteristic

1. The milling drum is driven by two four-link belts with automatic tensioning device.

2. The moving system is the four-wheel fully hydraulic driving .

3. The differential lock makes uniform driving forces even on the slippery road surface.

4. The machine has the advantages of being suitable for different milling materials and milling depth, optimizing power output automatic adjusting function and implementing maximization of the productivity.

5. The brake system implements the travelling brake by the reverse dragging of the hydraulic system. The multi-disc typed brake is arranged on the rear wheel reducer to implement the parking brake .

6. The automatic depth control (selectable )adopts the contact-typed or non contact-typed sensor for detection with digitally displayed milling depth.



Specification:

Model



XM101K



Max. milling with

mm

1020



Max. milling depth

mm

300

Milling wheel

Number of tools



84

Drum diameter with tools

mm

930

Engine

Model



SC8D220G2B1

Rated power

kW

162

Rated speed

rpm

2200

Specifications

Operating speed

m/min

0~30

Travel speed

km/h

0~7

Ground clearance

%

60

Ground clearance

mm

≤200

Operating weight

kg

17000

Volume

Fuel tank

L

380

Hydraulic oil tank

L

160

Water tank

L

680

Conveyor

Width

mm

450

Measurement

Overall machinery LxWxH

mm

4815×2560×3730

Conveyor LxWxH

mm

7168X720X830

Travel mode



Tire


Portable 0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG
Portable 0 - 7km/h Travel Speed 162KW Asphalt / Concrete Milling Machine Equipment XCMG
