Deutz Diesel Engine Tractor Backhoe Loader 70KW 630A 1.0m3 loading capacity

China Deutz Diesel Engine Tractor Backhoe Loader 70KW 630A 1.0m3 loading capacity supplier
Deutz Diesel Engine Tractor Backhoe Loader 70KW 630A 1.0m3 loading capacity supplier Deutz Diesel Engine Tractor Backhoe Loader 70KW 630A 1.0m3 loading capacity supplier Deutz Diesel Engine Tractor Backhoe Loader 70KW 630A 1.0m3 loading capacity supplier Deutz Diesel Engine Tractor Backhoe Loader 70KW 630A 1.0m3 loading capacity supplier

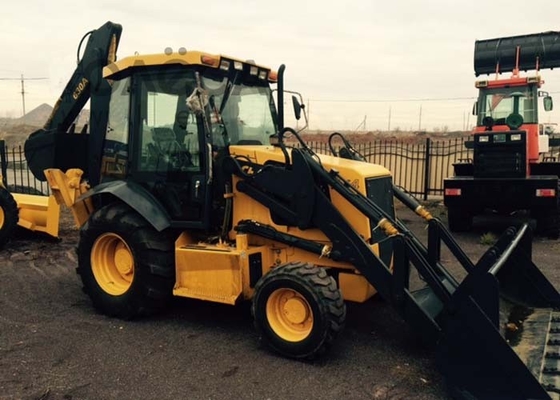

Large Image :  Deutz Diesel Engine Tractor Backhoe Loader 70KW 630A 1.0m3 loading capacity

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: CE/Ghost/ISO
Model Number: 630A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: naked packing in container
Delivery Time: 15 working days after deposit
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Engine Power: 70 KW / 95 HP Rated Load: 1700 Kg
Operating Weight: 7600 Kg Max Lifting Capability: 2500 Kg
Rated Load Bucket Capacity: 1.0 M3 Max. Digging Depth: 4405 Mm
Max. Digging Force: >50±10%kN
High Light:

compact tractor loader backhoe

,

compact tractor loader

Deutz Diesel Engine Tractor Backhoe Loader 70KW 630A 1.0m3 loading capacity



70KW Power Backhoe Loader 630A 1.0m3 loading capacity , Deutz Diesel Engine , Working in Construction Project

Description of Backhoe Loader:

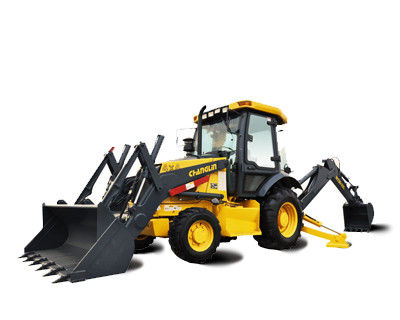

Backhoe loader, also known as a loader backhoe, is an engineering vehicle belong to construction machinery/construction equipment. The backhoe loader commonly composes a tractor, fitted with a shovel/bucket on the front and a small backhoe on the back.
Features of Backhoe Loader 630:
1. Equipped with reliable genuine engine
2. 4 forward & 4 reverse synchromesh mechanical shift transmission
3. Combined seal cylinder obtains high seal performance and more reliability
4. Improved loader and backhoe performance
5. CARRARO wet type rear axle with multi-disc brake& CARRARO front axle
6. New-type cab with more space, increases comfort and visibility
7. With 2 wheel driving or 4 wheel driving for option
Applications of Backhoe Loader 630:
The backhoe loaders' versatility and compact size makes them one of the most popular construction machinery/construction equipment. These backhoe loaders are widely used for larger projects such as building a house, fixing city roads, mining, etc.
Working principle of Backhoe Loader 630:

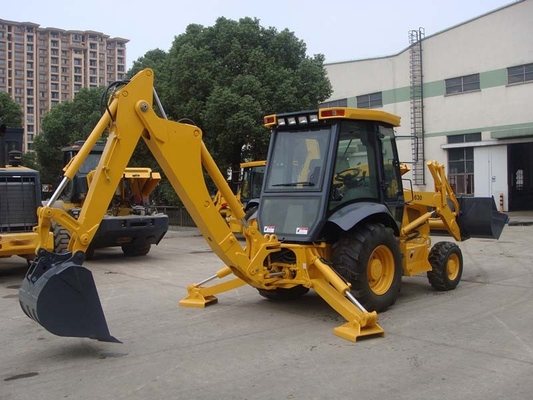

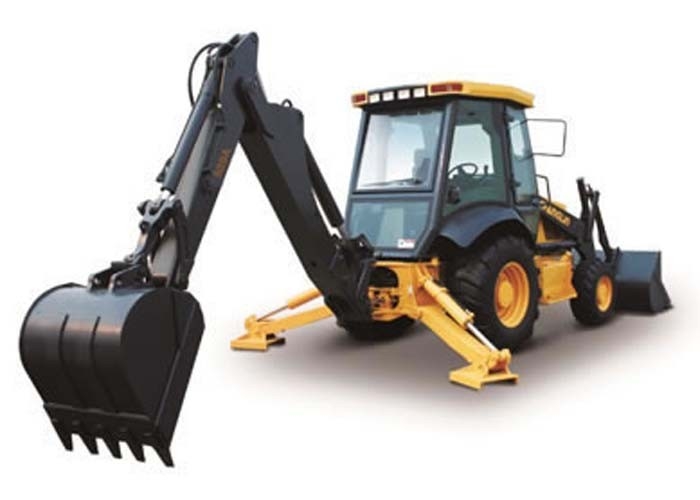

Because the design of backhoe loaders is top-heavy and the swinging weight of the backhoe could cause the vehicle to tip, backhoe loaders use hydraulic outriggers when digging and lower the loader bucket for additional stability.
Specifications of Backhoe Loader 630:

Changlin always provide global customers with the best quality construction machinery products and construction equipment such as wheel loaders, motor graders, road rollers, pavers, concrete truck mixers and Truck Mounted Crane , etc.



Overall Dimension
1 Length(with bucket on ground) 7085(mm)
2 Width 2313(mm)
3 Load Bucket width 2313(mm)
4 Height(To the top of the cab) 2710 (mm)
5 Height(To the top of the digging pole) 3424 (mm)
6 Wheelbase 2155.5(mm)
7 Back wheel Tread 1700(mm)
8 Fore wheel Tread 1880(mm)
9 Min. ground clearance 355(mm) for 2WD 275(mm) for 4WD
Main Loading Technical Specification
1 Rated load 1700(Kg)
2 Operating weight 7600KG
3 Max lifting capability >2500KG
4 Rated load bucket capacity 1.0(m3)
5 Max. load breakout force >60kN
6 Max. dump clearance 2714(mm)
7 Max. Dump reach 845(mm)
8 Dump angle at any position ≥43.5°
9 Min. turning radius
  (1) Outside of bucket 5280(mm) for 2WD 5670(mm) for 4WD
(2) Center of front wheel 3795 (mm) for 2WD 4380(mm) for 4WD
10 Lifting time of loading bucket ≤4.5(sec.)
11 Lowering time of loading bucket ≤3.5(sec.)
12 Dumping time ≤1.5(sec.)
13 Traveling speed(Km/h),4 forward and 4 reverse
  (1) Ⅰ gear forward 6
(2) Ⅱ gear forward 9.6
(3) Ⅲ gear forward 20.5
(4) IV gear forward 38
(1) Ⅰ gear reverse 6
  (2) Ⅱ gear reverse 9.6
(3) Ⅲ gear reverse 20.5
(4) IV gear reverse 38
Main Digging Technical Specification
1 Rated digging bucket capacity 0.3(m3)
2 Max. digging depth 4405(mm)
3 Max. digging force >50±10%kN
4 Max. digging radius 5481(mm)
5 Max. dumping height 3737(mm)
Diesel engine
1 Model WP4G DongFeng 4BTA3.9-C110
2 Type Direct injection. Turbocharged. Water cooling
3 Rated power / Rated speed 70 (kW) / 2200(r/min) 82 (kW) / 2200(r/min)
4 Displacement 4.5(L) 3.9(L)
5 Inter-bore of cylinder/stroke 102/138(mm) 102/120(mm)
6 Model, Voltage and Power of starting motor ST9371 12(V) 4.8(kW) ST 9501 12(V) 6(kw)
7 Model, Voltage and Starting Current of Alternator EE9242 12(V) 95Amp EE 9235 14(V) 70Amp
8 Max. Torque 414(N.M) @1500RPM 460N.m@1500RPM
9 Starting type Electric
10 Min. specific fuel consumption 207(g/Kw.h)
Transmission System
1. Torque Converter
1 Model CARRARO
2 Cooling type Pressure oil circulating
2. Transmission case
1 Model CARRARO
2 Type Synchromesh mechanical shift
3 Gear shift position 4 Forward and 4 reverse gears
3. Axle and Tire
1 Model CARRARO
2 Type of main reducer spiral bevel gear, single stage
3 Type of final reducer Single stage planetary
4 Max. steering angle 55°
5 Tire type 4WD fore tire12-16.5NHS-10PR
2WD fore tire11L-16F3-12PR
Rear tire 19.5L-24R4-12PR
Working Device Hydraulic System
1 Model of oil pump K2215(CASAPPA)
2 System pressure 230(kgf/cm2)
3 Model of priority valve WALVOIL SDS180
Steering System
1 Type Fore wheel Steering
2 Model of steering pump K2215(CASAPPA)
3 Model of steering gear 150-1219(DAIVFOSS)
4 System pressure 140(kgf/cm2)
Oil Capacity
1 Fuel(diesel) 151(L)
2 Engine lubricating oil 11(L)
3 Oil for converter and gear box 18.5(L)
4 Oil for hydraulic system 110(L)
5 Oil for driving axles(F/R) 7.6+17(L)



Deutz Diesel Engine Tractor Backhoe Loader 70KW 630A 1.0m3 loading capacity
