| Capacity Of Discharge: | 1000L | Capacity Of Loading: | 1500L |
|---|---|---|---|
| Productivity: | 35 M3 / H | Power Supply: | 380V / 50HZ |
| Mixing Blades: | 10 PCS | Mixing Motor Power: | 37 KW |
| Overall Size: | 4650×2250×2250mm | Weight: | 5200kg |
| Cycle Time: | ≤ 60 S | Mixing Time: | ≤30 S |
| High Light: | concrete mixer equipment,cement concrete mixture machine |
||

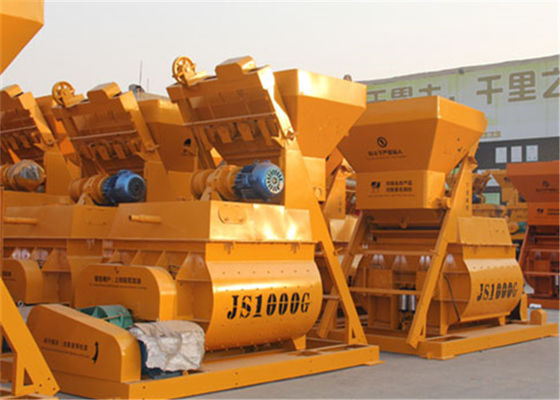

Twin Shaft Forced Concrete Mixer Machine , 1500L Loading Capacity Concrete Mixing Plant
1000L Electric Twin Horizontal Shafts Mixers For Concrete Mixing Works
Specifications:
|
Model |
JS1000 |
|
|---|---|---|
|
Discharging Volume(L) |
1000 |
|
|
Charging Volume(L) |
1500 |
|
|
Max. Aggregate Size(mm) |
80/100 |
|
|
Weight(Ton) |
5.20 |
|
|
Cycle Time(s) |
≤ 60 |
|
|
Mixing Time(s) |
≤30 |
|
|
Mixing Blades |
Speed(r/min) |
30 |
|
|
Quantity |
10 |
|
Mixing Motor |
Model |
Y180M-4-B3 |
|
|
Power(KW) |
2x18.5 |
Excellent mixing performance
The main mixer offers advantages as follows:
Advanced mechanism, compact structure, reliable working, high productivity, low power consumption and
low noise. It suits to mix the dry hard, half dry hard, plastic and other recipes of concrete.
1. Introduction of concrete mixer machine
Visbull JS series concrete mixer is twin shaft compulsory mixer. Not only it can work independently, but
also it can work with PLD series aggregate batcher to make a simple concrete plant or is adopted as
the mixer in the high-end concrete batching plant.
2. Application of concrete mixer machine
They are widely used to produce dry hard concrete, plastic concrete, flow concrete, light aggregate
concrete, various mortars, etc. Suitable for all kinds of big, medium and small precast concrete plant;
widely applied in roads, bridges, water projects or other industrial and civil projects.
3. Details of Concrete Mixer Machine
3.1 Mixing Device Adopt high-rigidity and high-tenacity wearable cast alloy steel, which has the best
torsion bent strength, so it prolongs the service time.
3.2 Four-layer Sealing Protection
Effectively prevent cement and slurry entering into shaft heads, therefore, it prolongs the service life
of the mixer.
3.3 Hydraulic Discharge System Adopt advanced hydraulic driving device, providing strong driving
force, avoiding pneumatic discharge can’t discharge smoothly because of pneumatic shortage or weak
driving force.
3.4 Electric Lubrication System It supplies oil to four shaft heads respectively with four pump cores,
without by-pass valve, so that it avoids blocking in by pass valve, furthermore, it reduces the
maintenance load.
Performance features:
Arc lining board adopts high chromium wear proof cast iron and end lining board adopts high
manganese wear- proof cast steel. The high wear-proof ability can greatly improve the service life of
main machine.Adopted bolts for fixing, the change and adjustment of the lining board will be more
convenient and fast.Shaft and sealing adopts multi-layer sealing device with good leakage-proof.
