Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mini Bulldozer | Wheel Base: | 1622 Mm |
|---|---|---|---|
| Engine Flywheel Power: | 58.8KW / 80HP | Ground Pressure(without Ripper): | 47.4 KPa |
| Operating Weight(not Including Ripper): | 6630 KGS | Track Width: | 390 Mm |
| Lifting Force: | 14 Kn | Track Gauge: | 1435 Mm |
| High Light: | heavy equipment bulldozer,crawler tractor dozer |
||

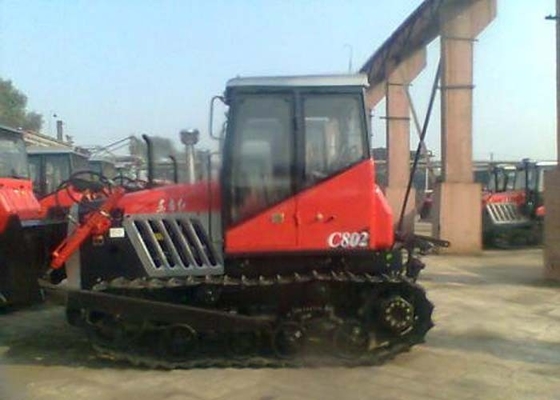

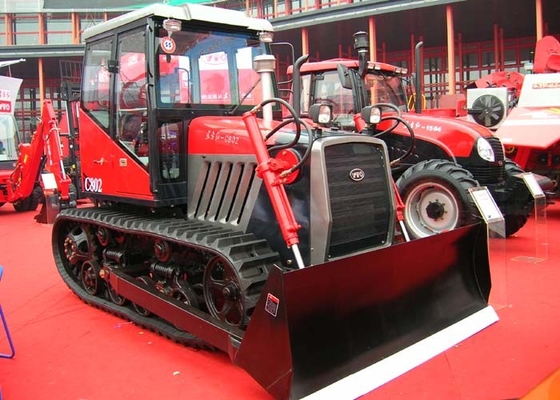

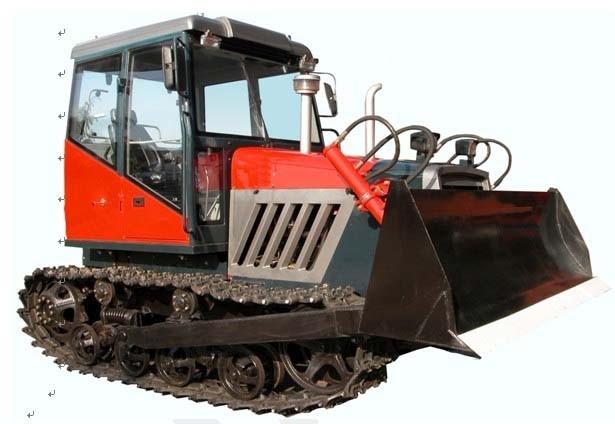

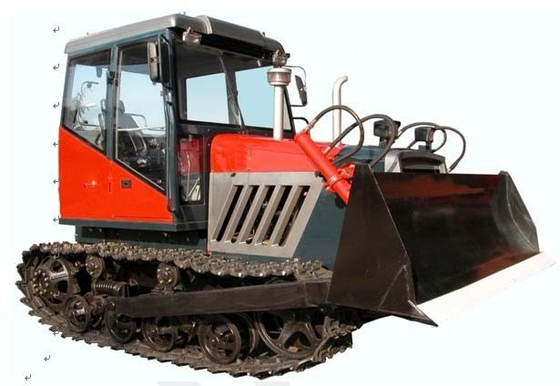

Diesel Engine Steel / Rubber Track Mini Crawler Bulldozer for Agriculture Use
Mini Crawler Bulldozer C802 , 80HP Power, for Engineering Construction , Agriculture Use
Feature:
1. The 70-90HP crawler tractor is manufactured with fully enclosed cab. Heating system, air condition, and audio system are optional. Besides the broad vision, users can also enjoy the nice appearance and the comfortable operation.
2. For optimal trafficability and steering performance, this range of agricultural vehicle can be designed with rubber track.
3. The utilization of hydraulic power steering gear greatly reduces driver’s labor intensity.
4. To obtain good reliability, our rubber tracked crawler adopts simple beam structure for the final gear.
5. The new seal structure for the rear gear of our 70-90HP crawler tractor can reduce the steering oil intake.
6. The crawler tractor with cab adopts (4F+2R) sliding-gear transmission. The reasonable gear range makes it suitable for farmland and bulldozing.
7. Equipped with the diesel engine produced on the basis of British technology, our diesel crawler tractor is quite popular due to the large torque, powerful overload capacity, low fuel consumption, and environmental protection.
Specification:
| Type | C802 |
| Overall dimensions L×W×H (mm) (With blade) | 4870×2462×2766 |
| Overall dimensions L×W×H (mm)(Without blade) | 4466×1835×2766 |
| Operating weight (kg) (With blade) | 6630 |
| Track gauge (mm) | 1435 |
| Wheel base (mm) | 1622 |
| Track width (mm) | 390 |
| Ground pressure (kPa) (With blade) | 47.4 |
| Engine | |
| Engine type | LR4A3Z-22 |
| Rated power output (kW) | 58.8 |
| Rated speed (r/min) | 2200 |
| Gear box | |
| Number of speed gear (forward/reverse) | 4/2 |
| Speed range(Km/h) forward/reverse | 3.67~9.03/3.51~5.59 |
| PTO shaft power (KW) | 49 |
| PTO rotational speed (r/min) | 750 |
| Working device | |
| Type of linkage | Postposition double-point linkage or three-point class two linkage |
| Depth control method | Height adjustment |
| Lifting force(KN) | 14 |
| Blade dimensions height ×width(mm) | 2462×850 |
| Drop below ground (mm) | 290 |
