Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction

China Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction supplier
Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction supplier Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction supplier Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction supplier Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction supplier

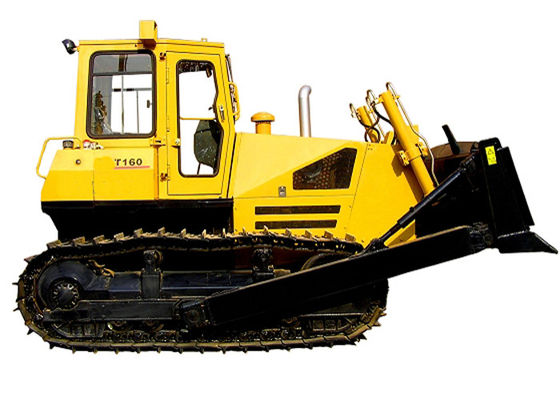

Large Image :  Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: Ghost/ISO
Model Number: T160

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 300 units per month
Contact Now
Detailed Product Description
Product Name: Crawler Bulldozer Max. Torque: 759 N.m
Engine Flywheel Power: 132KW / 180HP Ground Pressure(without Ripper): 68 KPa
Operating Weight(not Including Ripper): 17500KGS Digging Depth: 550 Mm
Max. Towing Force: 146 Kn Fuel Consumption Rate: ≤228 G/kw.h
High Light:

dozer construction equipment

,

crawler tractor dozer

  Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction



180HP Power Middle Crawler Bulldozer T160 for Engineering Construction , Mining project

Feature:

1. Use Euro II engine ,with such advantages as low oil consumption ,little smoke ,big torque reserve

 coefficient and high attractive force of the whole unit.



2. The main clutch which is adopted has been used in the komatsu 180 horsepower bulldozer ,with

such advantages as big torque reserve coefficient and long life.



3. The reducing throttle is equipped .when the bulldozer is traveling in the downhill grade or bumpy

ground ,the speed can be well controlled to strength the safety of operation.



4. Sealed track shall be adopted .Seal ring is provide at both ends of the pin sleeve of the sealed track

 to prevent entry of silt and other grinding materials.



5. The joystick is adopted in the control device ,which is light and flexible.



Specification:

Model   T160
Total Weight kg 17500
Max Towing Force kN 146
forward Ⅰ-Ⅴ Gears km/h 2.59~10.8
Reverse Ⅰ-Ⅳ Gears km/h 3.6~10.8
Minimum Turning Radius mm 3900
Track Width mm 500
Land Pressure kPa 68
Overall Dimension(L×W×H) mm 5245×3447×3040
Bulldozer Shovel(W×H) mm 3447×1167
Max Lifting Height Of Bulldozer mm 915
Max in-soil Depth of Bulldozer Shovel mm 400
Towing Equipment/Scarifier(optional)   Three shanks
track gauge mm 1880
wheelbase mm 2570
ground clearance mm 400
Engine Model   SC8D180.2G2B1
Engine Rated Power kw 132
Engine Rated Speed r/min 2000
type   Water cooled,
cylinder number diameter×piston stroke mm 6-105×125
rate fuel consumption g/kw.h ≤228
max torque n.m 759
transmission system
main clutch   Wet type, hydraulic control
center transmission   spiral bevel gear pair
turning clutch   Wet type
final clutch   Two-stage transmission mesh
chassis and running system
chassis type   steel plate welding
suspension fork   semi-rigid
guiding wheel and tension devices   Hydraulic tensioning, column spring cushion
track   rolled section steel
control system
oil supply control    handle
main clutch control   Stick handle
turning clutch   Hemi-handle
hand brake   pedal mechanical
multi-vavle   joystick
working devices
scarifier
type   Three shanks
lifting height mm 510
digging depth mm 550
quantity of tooth   3
blade
type   Straight blade
width and height mm 3447×1167
lifting height mm 915
digging depth mm 400
cutting angle ° 55
lifting speed m/s 0.3
main filling quantities
diesel tank L 230
hydraulic oil tank L 85
diesel engine lubricating system L 24
gearbox and rear axle L 110
final drive device L 40×2
track carrier roller L 0.36
track bogie wheel L 3
track guiding wheel L 3
water tank L 65
