| Product Name: | Crawler Bulldozer | Ground Clearance: | 382.5mm |
|---|---|---|---|
| Engine Flywheel Power: | 165HP | Max. Torque: | 790 N.m |
| Operating Weight(not Including Ripper): | 18300KGS | Max.digging Depth: | 550 Mm |
| Ground Pressure: | 28.3 Kpa | Track Gauge: | 2300 Mm |
| High Light: | dozer construction equipment,crawler tractor dozer |
||

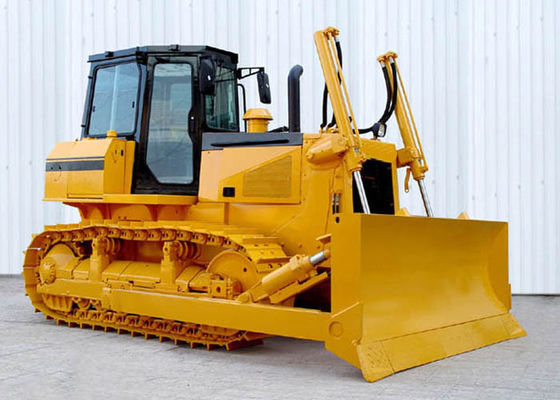

Semi Rigid Suspended Crawler Bulldozer , Power Shift Road Construction Mining Dozer
Crawler Bulldozer TYS165-2 165HP Power for Construction Site and Mining, 18300 KG Operating Weight
Feature:
TY165-2 bulldozer is semi-rigid suspended, power shift, hydraulically controlled and track-type. It is applicable for road construction, water and electricity engineering farmland leveling, port building, mining and other engineering conditions.
|
TYS165-2 Bulldozer |
Unit |
165HP |
|
Model |
TYS165-2 |
|
|
L*W*H(Ripper not included) |
mm |
5585×4222×3190 |
|
Operating weight(Ripper not included) |
Kgs |
18300 |
|
Engine Model motor |
WD10G178E25 |
|
|
Rated Power |
kw/rpm |
131/1850 |
|
Gradeability(Longitudinal/Transverse) |
° |
30/25 |
|
Blade type |
Straight tilt blade |
|
|
Blade width |
mm |
4222 |
|
Dozing capacity |
m3 |
4.5 |
|
Max. drop below ground of blade |
mm |
400 |
|
Max. lift height of blade |
mm |
957 |
|
Ripper type |
Three shanks ripper |
|
|
Max. digging depth of Ripper |
mm |
550 |
|
Max. lifting height of ripper |
mm |
510 |
|
Min. ground clearance |
mm |
382.5 |
|
Number of carrier roller(each side) |
2 |
|
|
Number of track roller(each side) |
6 |
|
|
Number of track shoe(each side) |
42 |
|
|
Width of track shoe |
mm |
1000 |
|
Track gauge |
mm |
2300 |
|
Ground lenth/Ground pressure |
mm/Mpa |
2920/0.0283 |
|
Pitch of track |
mm |
203 |
Speed Parameter:
|
Forward speed |
Km/h |
1st 0-3.32 |
2nd 0-6.26 |
3rd 0-11.40 |
|
Reverse speed |
Km/h |
1st 0-4.0 |
2nd 0-7.57 |
3rd 0-13.87 |
