| Basic Working Width: | 2.5m | Max. Working Width: | 6.0m |
|---|---|---|---|
| Max. Paving Thickness: | 380mm | Paving Speed: | 0-14Km/h |
| Hopper Capacity: | 14tons | Gradient Ability: | 20% |
| Rated Output: | 112KW | Dimensions: | 6230x2500x3855mm |
| Weight: | 15.8~21.5tons | Generator Power: | 20KW |
| High Light: | road paving equipment,asphalt laydown machine |
||
Road Construction Asphalt Paving Machine Rental , Concrete / Asphalt Laydown Machine
6000mmm XCMG Multi-Function Asphalt Concrete Paver RP602 With 380mm Paving Thickness And 112KW Diesel Engine

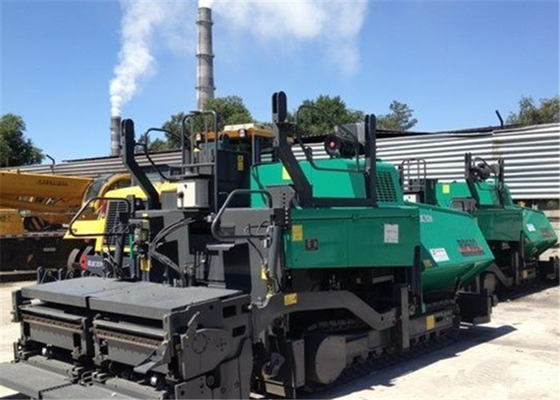

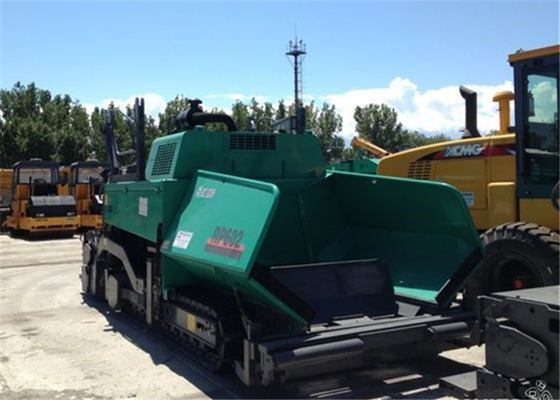

6.0m XCMG Multi-Function Asphalt Concrete Paver RP602
Specifications:
|
Item |
Unit |
Parameter |
Item |
Unit |
Parameter |
|---|---|---|---|---|---|
|
Basic Working width |
m |
2.5 |
Slop leveling Tolerance |
% |
0.03 |
|
Max. working width |
m |
6.0 |
|
||
|
Max. paving thickness |
mm |
380 |
Engine type |
BF4M1013C (Deutz) |
|
|
Paving speed |
Km/h |
0-14 |
Rated output |
KW |
112 |
|
Traveling speed |
Km/h |
0-3.0 |
Rated Rev. |
Rpm |
2300 |
|
Theoretical Productivity |
t/h |
400 |
Generator Power |
kw |
20 |
|
Hopper capacity |
T |
13 |
|
||
|
Gradient Ability |
% |
20 |
Weight |
T |
15.8~21.5 |
|
Smoothness |
Mm/3m |
3 |
Overall dimension |
mm |
6230x2500x3855 |
Applications:
RP602 Multi-Function Asphalt Concrete Paver is a construction machine mainly used for the paving
projection on the road base and surface for highway of various kinds of material.Therefore, RP602
becomes the ideal equipment for the paving job on stabilized soil for road base and asphalt concrete
for road surface.
Description:
1 . This type of machine has the most advanced technology, such as Micro-computer-controlling system,
ultra sonic sensor, electric auto-leveling system, tamper and which makes the machine features
with the same quality and reliability as that of the imported machine.
2 . Adopted with an advanced, mature and reliable Deutz BF4M1013C water-cooling Diesel Engine,
with a strong power
3 . With electric auto-leveling technique
4 . Driving system with control for right and left hand separately; Mirco-computer-control, auto - control
technology for paving with constant speed
5 . Material level control with ultra sonic sensor technology
Competitive Advantage:
1 . Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high
temperature
2 . Distributing auger, made of high wearing-resistant alloy material, distributing bottom plate and screed
bottom plate adopt with imported wearing-resistant material
3 . Control panel shows directly and clearly all working functions, paving, traveling speed, and could be
mounted on either on right or left
4 . The complete machine features with high automation, easy and convenient operation, excellent
construction performance with high efficiency.
