XCMG GR230 Motor Grader Machine for Ditch Digging / Slope Leveling / Snow Removing

China XCMG GR230 Motor Grader Machine for Ditch Digging / Slope Leveling / Snow Removing supplier

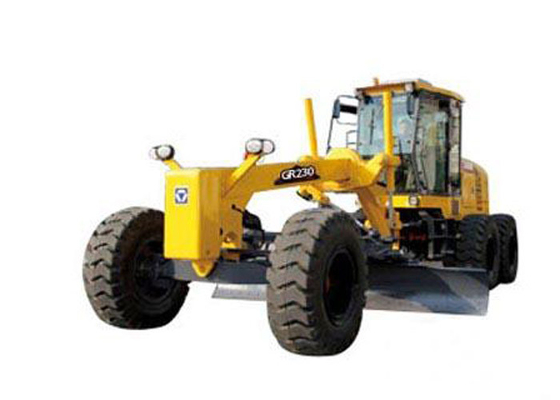

Large Image :  XCMG GR230 Motor Grader Machine for Ditch Digging / Slope Leveling / Snow Removing

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: ISO
Model Number: GR230

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing in container
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 1500 units per month
Contact Now
Detailed Product Description
Engine Model: CUMMINS 6CTA8.3-C230 Rated Power/speed: 172kW/2200rpm
Dimension(LxWxH): 8970×2625×3470mm Operating Weight(Standard): 16500kg
Maximum Lift Above Ground: 450mm Max. Gradeability: 20%
Tire Inflation Pressure: 260 KPa Working Hydraulic Pressure: 16 MPa
Transmission Pressure: 1.3~1.8MPa Maximum Depth Of Cutting: 500mm
High Light:

gravel road grader

,

compact road grader

XCMG GR230 Motor Grader Machine for Ditch Digging / Slope Leveling / Snow Removing





XCMG BRAND GR230 MOTOR GRADER WITH CUMMINS ENGINE AND ZF ELECTRICAL GEARBOX AND REAR RIPPER



Description:

GR series of motor grader are mainly used in the operation of road surface leveling,

ditch digging, slope leveling, bulldozing, scarification and snow removing on the

road, airport and farmland. The motor grader is the necessary construction

machinery for defense construction, mine construction, urban and rural road

construction and irrigation works and farmland improvement.



Features:

  • Brake System:The travelling brake system adopts the hydraulic components of Rexroth (Germany).
  • Steering system: Adopting sensor with load.
  • Chassis:Being of welded structure, just like a box, so it is strong enough to ensure no deformation.
  • Cabin:with wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc.
  • Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.
  • Operation System: Forward/backward adjustable opertion Panel, with HUSCO multi-way valve, electrically- controlled ZF gearbox, so it is quite easy to make any operation.



Optional Equipment:



Automatic leveling unit

Front blade

Rear rippe



Specifications:

Basic specification

Engine model

CUMMINS 6CTA8.3-C230

Rated power/speed

172kW/2200rpm

Dimension(LxWxH)

8970×2625×3470mm

Operating weight(Standard)

16500kg

Performance specification

Travelling speed ,forward

5,8,11,19,23,38 km/h

Travelling speed ,reverse

5,11,23 km/h

Tractive force(f=0.75)

90KN

Max. gradeability

30%

Tire inflation pressure

260 kPa

Working hydraulic pressure

18 MPa

Transmission pressure

1.3~1.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

15

Frame articulation angle

±27°

Min. turning radius using articulation

7.3m

Biade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°—70°

Circle reversing rotation

360°

Moldboard width X height

4270×610mm

XCMG GR230 Motor Grader Machine for Ditch Digging / Slope Leveling / Snow Removing

XCMG GR230 Motor Grader Machine for Ditch Digging / Slope Leveling / Snow Removing

XCMG GR230 Motor Grader Machine for Ditch Digging / Slope Leveling / Snow Removing
