Mechanical Transmission Case Concrete Dumper , Auto Turning Powered Wheelbarrow Tracked

China Mechanical Transmission Case Concrete Dumper , Auto Turning Powered Wheelbarrow Tracked  supplier
Mechanical Transmission Case Concrete Dumper , Auto Turning Powered Wheelbarrow Tracked  supplier Mechanical Transmission Case Concrete Dumper , Auto Turning Powered Wheelbarrow Tracked  supplier

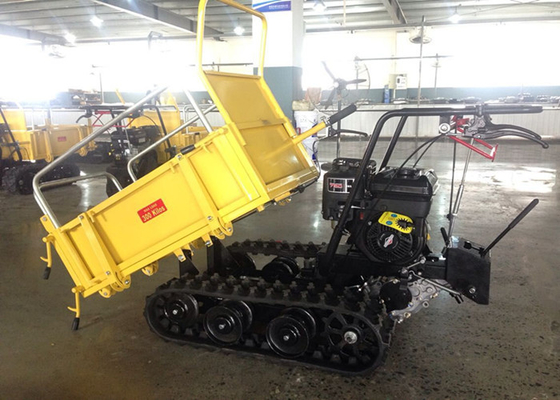

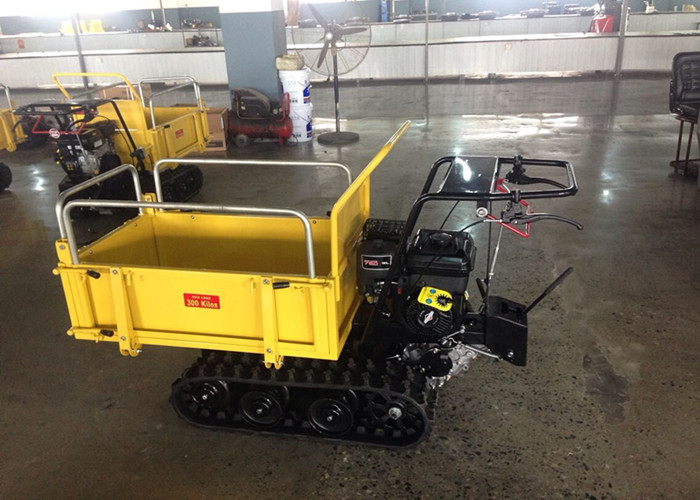

Large Image :  Mechanical Transmission Case Concrete Dumper , Auto Turning Powered Wheelbarrow Tracked

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: CE/SGS
Model Number: KD300C

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: US$1400-US$1500 per unit
Packaging Details: Nude packing in container.
Delivery Time: 25-30 working days after received your advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Payload: 300kgs Brake: Disk
Cabels: Protected Engine: 5.5HP , 4stroke , 163cm3 Gasoline Engine
Driving: Crawler Driven Unloading: Manual
Turing: Auto Turning Dimensions: 1600*740*820mm
Weight: 175kgs Drum Material: Powder Coating
Color: Yellow HS CODE: 8428909090
High Light:

powered wheelbarrow tracked

,

power assisted wheelbarrow

Mechanical Transmission Case Concrete Dumper , Auto Turning Powered Wheelbarrow Tracked



0.3tons Gasoline Engine Mini Dumper With Crawler

Driven And Mechanical Transmission Case For Site Works



Specifications:



Specification

KD300C

Mechanical Transmission case

Engine

B&S ICseries 130G 6.5HP/HONDA GX160 5.5HP/ 5.5HP, 4stroke, 163cm3

gasoline

Transmission

Peerless transaxle 6 forward / 2 reverse speed

Speed

0-5.5km/h

Capacity

 300KG weight

Brake

Disk

Cabels

Protected

Driven type

Crawler driven

Drum Material

yellow powder coating

Weight

175KG

Dimension

160*74*82
(retort stand)

Drum Material

yellow powder coating

Unloading

Manual

Turing

Auto turning

Loading Capacity

20GP

20



40HQ

65


Description:


1. The max loading weight is 300kgs and the width is 74cm narrow.

2. Easy and comfortable operation due to the intuitive controls.

3. B&S IC series 130G 6.5HP/HONDA GX160 5.5HP/ 5.5HP, 4stroke, 163cm3 gasoline

4. Mechanical Transmission case.

5. Efficiency of transportation by transportation, loading, unloading and dumping ability.


Applications:

Dumpers are widely used in many different of site works, such as Building  construction industry,

landscaping,gardening,farming,stables renting and so on.

Competitive Advantage:


1 . The main parts are imported from USA with global warranty.

2.  It's powerful to carry bricks, sand, stones, wood, crops, fruits around varous sites.

3.  It's powerful for tough outdoor sites, carrying bricks, sand, stones, wood, crops, fruits around various

     sites.



Mechanical Transmission Case Concrete Dumper , Auto Turning Powered Wheelbarrow Tracked



Mechanical Transmission Case Concrete Dumper , Auto Turning Powered Wheelbarrow Tracked
