10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure

China 10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure supplier
10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure supplier 10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure supplier 10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure supplier 10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure supplier

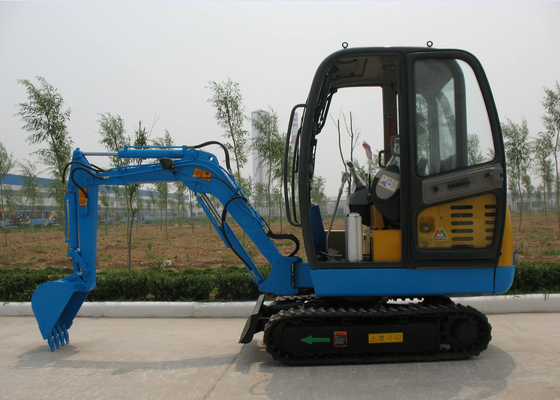

Large Image :  10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: Ghost/ISO/SGS/CE
Model Number: CT18-7B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000 units per month
Contact Now
Detailed Product Description
Product Name: Mini Excavator Operation Weight: 1760KGS
Engine: Yanmar Rated Engine Power: 16kw
Working Pressure: 20 Mpa Max. Digging Reach: 3720 Mm
Max. Digging Depth: 2100mm Max. Digging Height: 3150 Mm
High Light:

construction equipment excavator

,

hydraulic attachments excavators

Japanese Yanmar 3NTV82A diesel engin Excavator Working Pressure 20kpa



CT18-7B Crawler Excavators

Originally imported Japanese Yanmar 3NTV82A diesel engine

In conformity with the EU III emission control regulations Imported hydraulic components,

guarantee for 3 yrs under normal use and maintenance ,

South Korea made gasoline tank On-line digital monitoring and control system GPS satellite position(optional)and remote diagnose system(optional) Rubber pedrail(optional, or steel pedrail), no damage to the ground of road full opened engine hood and easy up-forward-lifted cab Cold&warm air conditioner(optional)



SPECIFICATIONS

  Operating weight 1.760 ton
  Travel speed 2.15/3.83km/h
  Bucket Capacity 0.05/0.06m3(SAE)
  Tracking force 11.54kn
  Engine power 16KW/2.200RPM
  gradeability 30°(58%)
  Swing speed 10.9RPM
  Bucket digging force 11.44 kn
  Ground Pressure 29KPa
  Arm digging force 8.04 kn



Dimensions

  Upperstructure width 1050 mm
  Undercarriage width 1080 mm
  Overall Height with cabinet 2455 mm
  Rear swing radius 1200 mm
  Clearance under counter weight 467 mm
  Tumbler Distance 1185 mm
  Ground clearance 212 mm
  Overall length for transportation 3790 mm



working range

  MAX digging radius 3720 mm
  MAX digging radius at ground lever 3640 mm
  MAX digging depth 2100 mm
  MAX digging height 3150 mm
  MAX dumping height 2070 mm
  MAX dozer cutting depth 190 mm
  MAX dozer lifting height 210 mm



HYDRAULIC SYSTEM

MAIN PUMP TYPE
  AXIAL PISTON PUMP & GEAR PUMP
  CONSTANT POWER VARIABLE DISPACEMENT WITH GEAR PUMP OVERRIDE CONTROL
  FLOW/PRESSURE 45.8*2+37 l/MIN / 2.200 RPM / 21MPA
PILOT PUMP TYPE
  GEAR PUMP
  FLOW/PRESSURE 22*2 L/min / 2.200 rpm / 16 mpa
  SWING MOTOR
  ATTACHMENTS
  over load pressure
BOOM / ARM / BUCKET 20 MPA



10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure

10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
