Product Details:
Payment & Shipping Terms:
|
Power Type: | Diesel | Rated Capacity: | 3000 Kg |
---|---|---|---|
Load Center: | 500 Mm | Mast Lifting Height: | 3000 Mm |
Max. Grade Ability: | 10% | Wheel Base: | 1500 Mm |
Fork Size(L*W*T): | 1070*122*40 Mm | Min Turning Radius: | 2320 Mm |
Lifting Motor: | 10 Kw | Total Weight: | 4420 Kg |
High Light: | material handling forklift,power lift forklift |

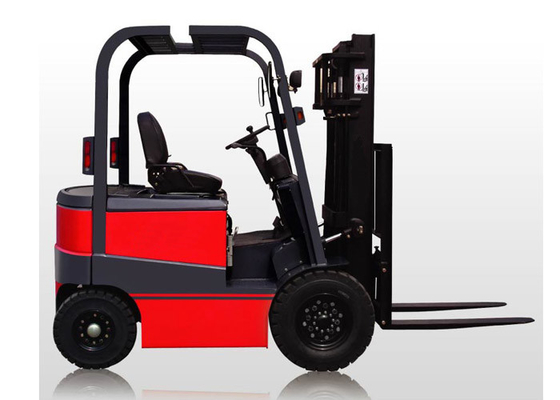

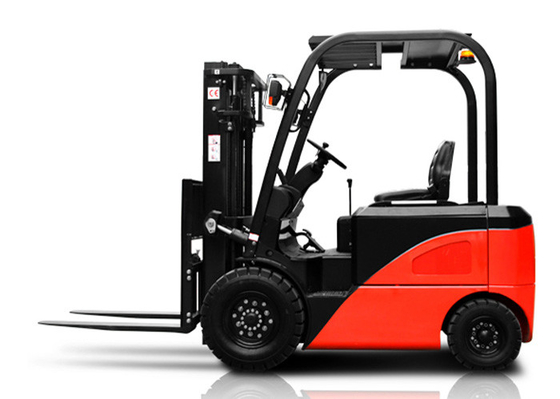

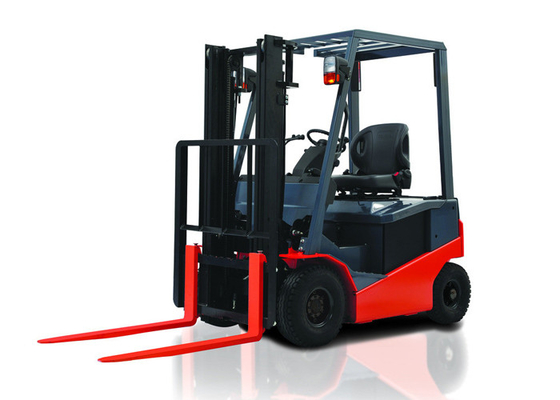

80V Battery Curtis Controller 3 tonne Electrical Industrial Forklift Truck 3M Container Mast
Environmental Friendly
- The emission meets EC and EPA new regulation.
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving , increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
Safety performance
- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
- Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.
- Safety device in mast hydraulic system prevents material falling down in of hose broken.
- High pressure hose is designed far away from the driver.
- Safety wire harness, using waterproof plug.
Standard Configuration:
Electric forklift truck with 3,000 kg load capacity
Equipped with DC Or AC Manitenance-Free Battery
Standard with 2-stage wide-view mast, lifting height is 3,000mm,6000mm
Pneumatic tires, 920mm,1220mm or 2000mm forks,Safety seat,Free tool box and spare parts.
Specifications:
Model | CPD30 | |
Load capacity kg | 3000 | |
Load center mm | 500 | |
Max lifting height mm | 3000 | |
Tilting angles (forward-backward) | 6°/12° | |
Lifting speeds(with load/without load)mm | 420/260 | |
Free lift mm | 160 | |
Max Driving seeds(with load/without load )mm | 14.5 | |
Min turning radius mm | 2320 | |
Slope-climbing gradient | 10% | |
Formal dimension | Length mm | 3485 |
Width mm | 1180 | |
Height mm | 2180 | |
Mast height fork lowered | 1995 | |
Overhead height fork raised mm | 4030 | |
Fork size L*W*T mm | 1070*122*40 | |
Fork overhang mm | 490 | |
Wheel base mm | 1500 | |
Rear overhang mm | 395 | |
Lateral fork adjustment | 245-1038 | |
Under –clearance mm | 125 | |
Tread front mm | 980 | |
Tread rear mm | 950 | |
Battery voltage v | 48 | |
Battery capacity Ah | 550 | |
Traveling motor Kw | 8 | |
Lifting motor Kw | 10 | |
Steering motor Kw | ||
Tire front | 7.00-12-13PR | |
Tire rear | 18X7-8-15PR | |
Total weight kg | 4420 | |
Electronic controllers | GE/CURTIS/ZAPI |
