45 Ton Diesel Powered Container Reach Stacker With Cummins M11- C330 Engine

China 45 Ton Diesel Powered Container Reach Stacker With Cummins M11- C330 Engine supplier

Large Image :  45 Ton Diesel Powered Container Reach Stacker With Cummins M11- C330 Engine

Product Details:

Place of Origin: CHINA
Brand Name: KUDAT
Certification: ISO / CE
Model Number: CRS45

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 6-8 weeks after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 500 units per month
Detailed Product Description
Power Type: Diesel Rated Capacity: 45000 Kg
Maximum Lift Speed: 600 Mm Mast Lifting Height: 380 Mm/s
Max. Grade Ability: 30% Minimum Turning Radius: 8200 Mm
Under Clearance: 400 Mm Spreader: SPREADER ELME 817
Max Driving Speeds: 25 Km/h Service Weight: 73000 Kg

45 Ton Diesel Powered Container Reach Stacker With Cummins M11- C330 Engine



Description:

CRS450Z5 container reach stacker is particularly designed for handing 20ft and 40ft ISO containers, mainly used and operated for stacking and handing container in harbors and container depots, Compared with forklifts, with reliable and stable performance and low tire pressure, high stacking ability and high utilization rate, it is easy to operate and flexible in maneuver.

With retractable and rotatable spreader, CRS450Z5 container reach stacker is used for 20ft and 40ft ISO container handing, When in operation, it dose not have to vertically toward containers, and can be used to lift containers with small angle. When lifting, spreader can be rotated so as to pass narrow route ways and passages. And this greatly enhance the working efficiency. This type of container reach stacker can also be used and operated rough ground conditions.

Lifting of container by the stacker can be effected by lifting telescopic boom. When the boom and alevation cylinders extended, lift speed is faster, descending speed will be faster when the boom is locked . When in operation, the stacker can move smoothly with goods by adjusting lift and retracting the spreader. Therefore, using such equipment can largely increase operation sfficiency.



Main Features:

1.Original VOLVO engine, TWD1240VE, 256kw/2100rpm
2.Imported Germany KESSLER heavy duty drive axle
3.Clark-hurth transimission





Specifications:

Truck Model: CRS450Z5
Equipment Code: Z-Z5
Rated capacity(Kg): 31000(Front Distance1900mm)(5-HIGH)
45000(Front Distance1900mm)(4-HIGH)
31000(Front Distance3850mm)(4-HIGH)
15000(Front Distance6350mm)(3-HIGH)
Maximum lift height(mm): 14850
Load centre distance(mm):
Maximum lift speed(mm/s): 380/240
Maximum lower speed(mm/s): 300/250
Travel speed(Km/h): 1st 4/4
2nd 9/9
3rd 16/16
4th 25/25
Gradeability (%): 30/15
Under clearance(mm): 400
Minimum turning radius(mm): 8200
Brake stopping distance (m): <=7
Overall length(mm): 11350
Overall width(mm): 6042
Overall height(mm): 4600
Wheel base(mm): 6000
Tread(mm): FRONT 3033
REVERSE 2750
Spreader: SPREADER ELME 817
Service weight(Kg): 73000
Engine: MODEL CUMMINS M11-C330
DISPLACEMENT 10800cc
RATED POWER/SPEED 246 Kw /2100 rpm
MAX.TORQUE/ SPEED 1458/1300 rpm
Tyre: FRONT 4X18.00-25-40PR
REAR 2X18.00-25-40PR

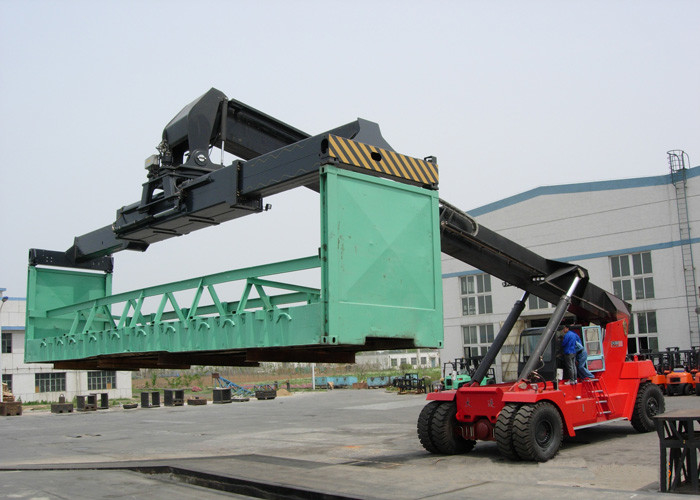

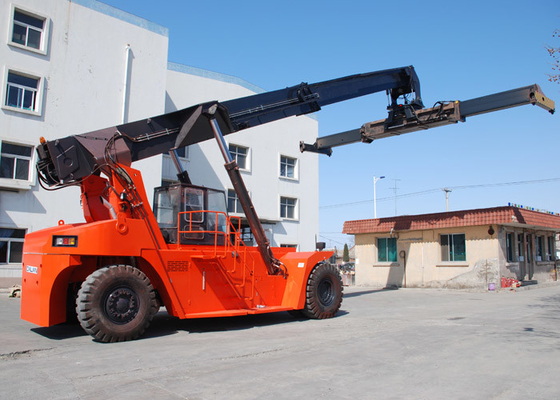

45 Ton Diesel Powered Container Reach Stacker With Cummins M11- C330 Engine

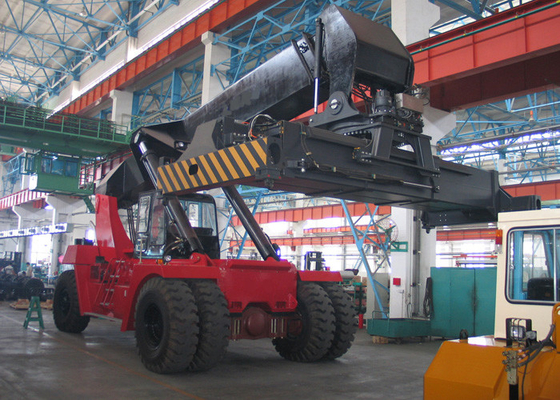

45 Ton Diesel Powered Container Reach Stacker With Cummins M11- C330 Engine
