| China: | Wheel Loader | Rated Power: | 162KW |
|---|---|---|---|
| Rated Loading Weight: | 5 Ton / 5000KGS | Operating Weight: | 16900 Kgs |
| Rated Bucket Capacity: | 2.8 CBM | Dumping Height: | 3150~3560 |
| Standard: | CE/GHOST/ISO | Max. Traction Force: | 165KN |
| Boom Lifting Time: | ≤6s | Total Time Of Three Devices: | ≤11s |
| Wheelbase: | 2960mm | Dimension: | 7800×3016×3360 Mm |
| High Light: | hydraulic wheel Loader,compact truck loader |
||

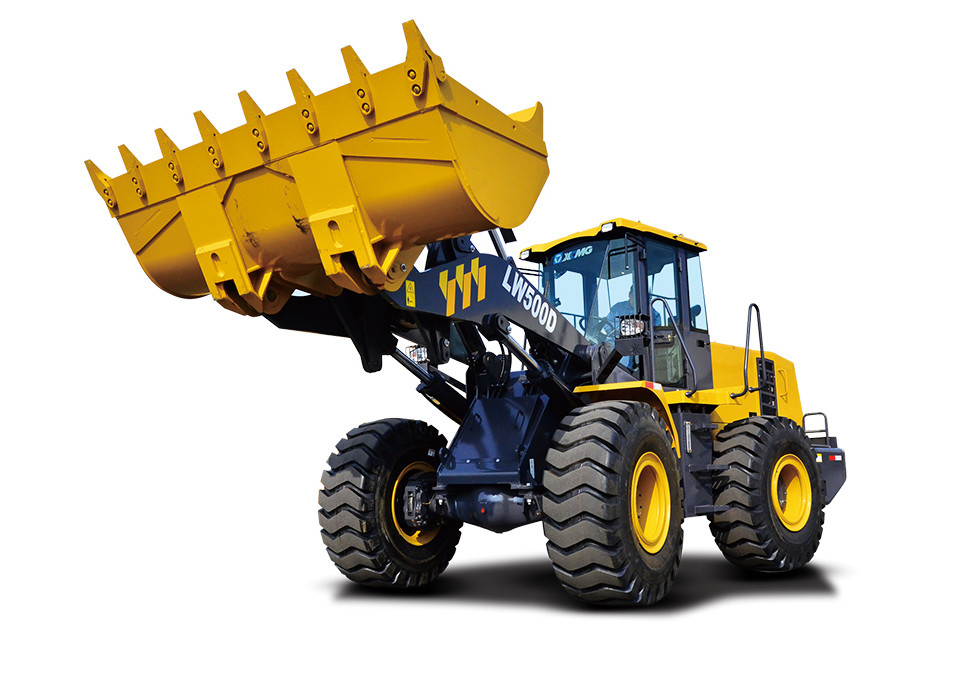

LW500D Front End Wheel Loader xcmg construction machinery 5T Loading Weight
Technical Features
LW500D is based on double rocker type in traditional industry mature an updated version of the product.It adopts horizontal movable arm cylinder structure, box type suspension frame, work unit hinged point by the optimal design, has dug up strength, strong traction characteristics, widely used in traffic construction, municipal engineering, application field, coal mine coal and other loose material handling, etc.
XCMG proprietary high torque, high efficient transmission chain, economy is superior to the industry of similar products more than 10%.
Transmission adopts the XCMG lubrication system optimization design patent technology, completely solve the gearbox industry problems of insufficient lubrication and lubrication disequilibrium, gearbox life significantly.
Will have high stability of the double rocker arm structure and has the capability of spading strong horizontal cylinder structure ingenious combination, the whole machine working performance is stronger.
Using xugong high strength box vibration of frame structure, bearing material ratio significantly ahead of industry products.
Dig up force 16 tons or more, acuity 3.5 m high discharge capacity, efficiency and power to achieve the best balance, leading the similar models.
Performance Parameters
| LW500D Wheel Loader with Heater: |
| Operation Performance Parameter |
| Rated load: 5t; |
| Bucket capacity: 2.8m3; |
| Dumping height: 3150~3560mm; |
| Dumping distance: 1160mm; |
| Max. drawing force: 165KN; |
| Boom lifting time: ≤6s; |
| Total time of three devices: ≤11s; |
| Travel Performance Parameter |
| Max. speed: 38km/h; |
| Min. turning radius(bucket outer): 6940mm; |
| Engine |
|
Engine model: WD10G220E23; Engine power: 162kw |
| Transmission/axle |
| Planetary box/dry axle; |
| Weight Parameter |
| Operating weight: 16900kgs; |
| Dimension Parameter |
| Wheelbase: 2960mm; |
| Dimension: 7800×3016×3360 mm; |
