Product Details:
Payment & Shipping Terms:
|
| Power: | 255KW | Bitumen: | ±0.2% |
|---|---|---|---|
| Powder: | ±0.2% | Aggregate: | ±0.5% |
| Capacity: | 96TPH | Mixer Capacity: | 1200kgs |
| High Light: | asphalt batching plant,asphalt concrete plant |
||

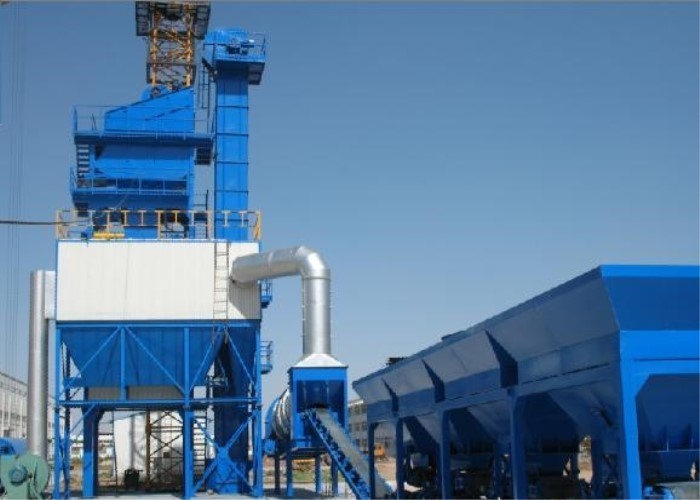

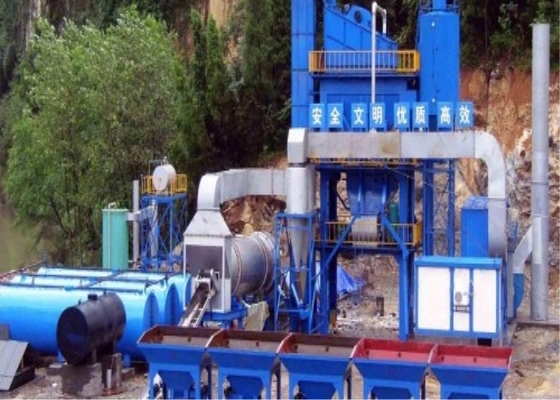

Stationary GLB -1200 asphalt batch mix plant 100 Tons Hot Bucket Elevator
1200kgs Mixer Capacity Mobile Asphalt Batching Plant GLB-1200 With Dryer Drum
| Type | LB-600 | LB-800 | LB-1000 | LB-1200 |
| Capacity | 48T/h | 64T/h | 80T/h | 96T/h |
| Power | 205kW | 201kW | 220kW | 255kW |
| Mixer Capacity | 600KG | 800KG | 1000KG | 1200KG |
| Fuel oil consumption | 6.5KG/T | |||
| Weighing Accuracy | AGGREGATE:±0.5% Filler:±0.5% BITUMEN:±0.25% | |||
Hot Bucket elevator
Capacity: 100 t/h
Bucket chain elevator
Motor: 18.5 kW
Vibrating screen and Hot hopper
Linear vibration, 4 kinds of aggregates, 4 deck
Motor: 3.2kW×2
Imported motor, electro-vibrator,
Spec of screen mesh: 4×4, 10×10, 18×18,25×25
Sealed, dust proof., negative-pressure
We can also supply special mesh size according to customer demands.
Hot hopper:
4 aggregate hoppers and 1 waste bin and 1 recovery filler temporary bin
Level indicator (Upper) and for overflow bin
Effective capacity of aggregate bin is 10 m3
Sampling door
Thermostat in sand hopper
Negative pressured structure (dust proof) and connections
Weighing system and Mixer
Aggregate Weighing:
Filler Weighing
3 Toledo load cells, adjustable double door
3 Toledo load cells, butterfly valve.
Bitumen weighing:
Direct input from load cell to PLC, high accuracy
3 Toledo load cells
| Item | Description | Unit | |
| Main parts | 1 | Four-bin Cold Feed (4×10 m3) | 1set |
| 2 | Burner | 1unit | |
| 3 | Dryer and drive system (ф1750×7000㎜) | 1unit | |
|
4
|
Hot Bucket elevator | 1unit | |
|
5
|
Filler elevator | 1unit | |
|
6
|
Vibrating screen | 1set | |
|
7
|
Hot hopper(Capacity:10m3) | 1set | |
|
8
|
Weighing system | 1set | |
|
9
|
Pneumatic system | 1set | |
| 10 | Filler supply system | 1set | |
|
11
|
Mixer(22kW×2) | 1unit | |
|
12
|
Vent | 1unit | |
|
13
|
Cyclone dust filter(level one) | 1set | |
|
14
|
Washery dust filter (level two) | 1set | |
|
15
|
Blower | 1set | |
| Control System |
16
|
PLC | 1set |
|
17
|
Control panel | 1set | |
|
18
|
Touch screen | 1unit | |
|
19
|
Printer | 1unit | |
| 20 | Control room | 1unit | |
