| Name: | Wheel Loader | Rated Power: | 92KW |
|---|---|---|---|
| Rated Loading Weight: | 3 Ton / 3000KGS | Operating Weight: | 10700KGS |
| Rated Bucket Capacity: | 1.8 CBM | Dumping Height: | 2950mm |
| Standard: | CE/GHOST/ISO | Max. Breakout Force: | 96KN |
| High Light: | hydraulic wheel Loader,compact truck loader |
||

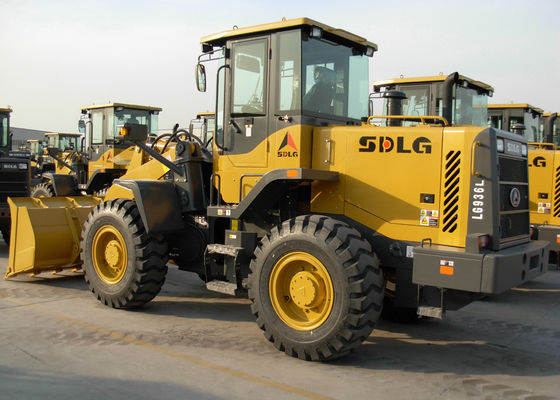

SDLG Brand Front End Loader LG936L With Volvo Technology Equipped With Yuchai Diesel Engine , 92KW rated power
Simple Introduce
Lingong tires its best to make the top-quality products in its credit tradition, long design and making history of more than 30 years for more than 100,000 users in the world, perfofectly combine with the European styles.
LG936L, based on standard boom and lengthen boom, can conquer different work with different attachments. It is the fourth generation products with intellectual property right. The 4th generation products adopt well received LG50 transmission, which improves the performance.
Main Feature
※ Best combination between power and transmission: Yuchai YC6108G (Deutz TD226B)+Lingong 50 Transmission + LG strengthened drive axle.
※ Middle articulation, 38°steering angle, small turning radius, more suitable to be applied in narrow work sites.
※ Big bucket withdrawal angle and high full-load coefficient, which can save time by 20% compared with loaders of the same operating weight.
※ The Lingong standard dual seal coupling for hydraulic pipeline thoroughly avoids leakage.
※ In terms of overall length, the machine is 200mm longer than common 30 products, and it is more reliable during operation.
Main specification (Standard equipment)
| Item | Specification | Item | Specification | |
| Operation weight | 10700 kg | Max. speed | 38 kM/h | |
| Rated shovel capacity | 1.8 m3 | Front and rear axles | ||
| Rated loading weight | 3 ton | Main transmission type | Spiral gear, first stage decelerate | |
| Max. traction force | ≥ 105 kN | |||
| Max. breakout force | ≥ 96 kN | Final decelerate type | First stage, planetary gear decelerate | |
| Tipping load (kN) | ≥ 66 kN | |||
| grade ability | 30 ° | Tyre | ||
| Max. dumping height | 2950 mm | Type specification | 17.5-25 | |
| Dumping distance | 1050 mm | Front tyre pressure | 0.33-0.35 MPa | |
| Overall dimension (LxWxH) | 7100x2510x3170 mm | Rear tyre pressure | 0.27-0.29 Mpa | |
| Engine | Steering system | |||
| Model | YC6108G | Type | Articulated load-sensing hydraulic steering system | |
| Type | Inline, water cooling, wet cylinder sleeve, direct injection | |||
| Steering angle | 38 ° each side | |||
| Min. turning radius |
5912 mm (outside shovel) 5381 mm (outside rear wheel) |
|||
| Nr. of cylinders-bore/stroke | 6-108x125 mm | |||
| Max. torque | 463 N.m | Hydraulic system | ||
| Rated power | 92 kW | Working pressure | 16 Mpa | |
| Rated speed | 2200 rpm | Boom lifting time | ≤ 5.3 s | |
| fuel consumption | ≤ 228.5 g/kW.h | Total time | ≤ 9.2 s | |
| Transmission system | Brake system | |||
| Torque converter | Single plase, 4 elements dual turbo | Service brake | Air over hydraulic disc brake | |
| Parking brake | Manual parking brake | |||
| Modulus of converter | 4.19 | Fill capacity | ||
| Transmission | Planetary power shift | Fuel | 140L | |
| Gear shift | 2 forward, 1 reverse | Hydraulic oil | 130L | |
LG936 High Dumping Loader
| Operation weight | 10700 kg | |
| Rated shovel capacity | 1.6 m3 | |
| Rated loading weight | 2.7 ton | |
| Max. traction force | ≥ 105 kN | |
| Max. breakout force | ≥ 92 kN | |
| Min. turning radius | Outside shovel | 6073 mm |
| Outside rear wheel | 5381 mm | |
| Max. dumping height | 3278 mm | |
| Overall dimensions (LxWxH) | 7266x2510x3170 mm | |
